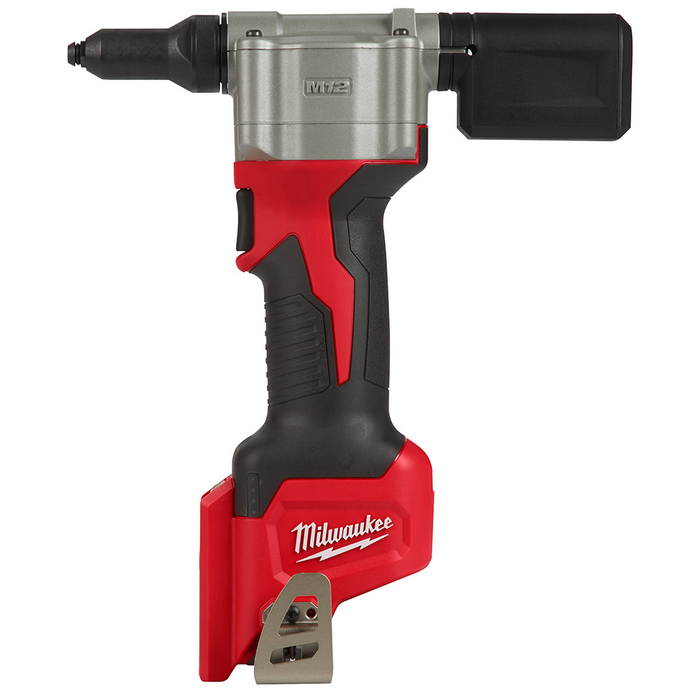

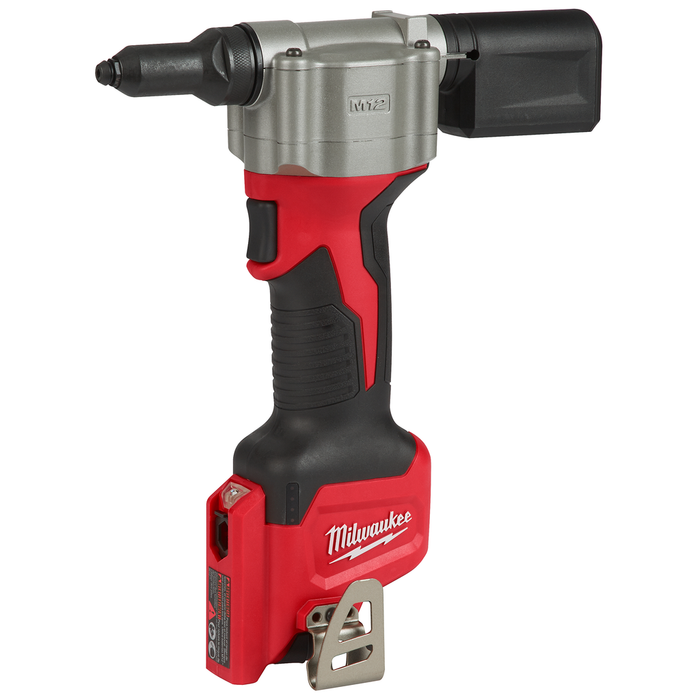

M12™ Rivet Tool
Aisle View
Tap to enlarge

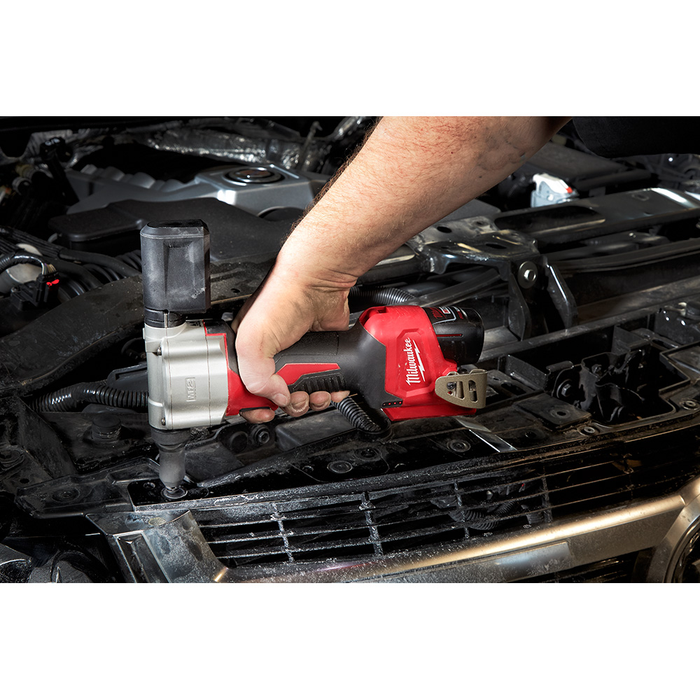

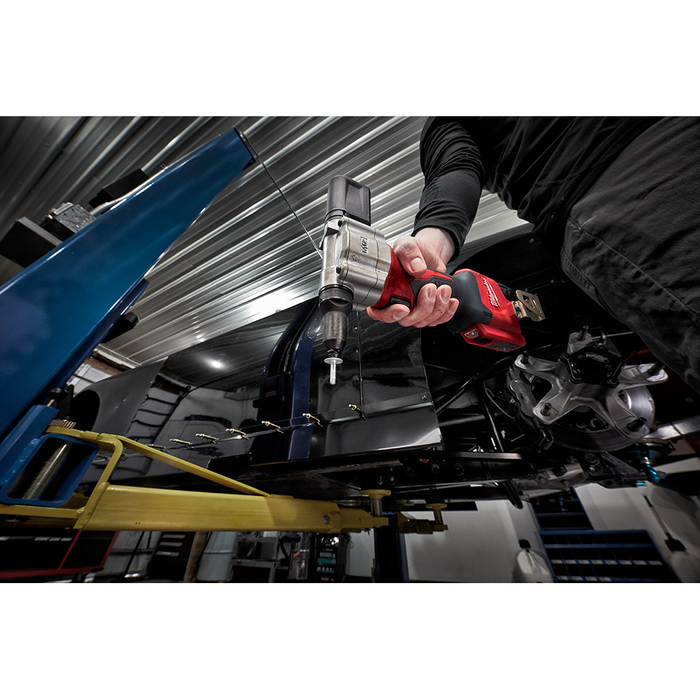

The M12™ rivet tool is the first cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. The 2550-20 can pull up to 3/16 in. stainless steel rivets, 450 pcs. of 1/8 in. steel rivets on one 1.5 amp hour charge, and reduces muscle effort from a hand tool by over 60%. No compressors or hoses during set up and operation makes this tool a great replacement to pneumatic products. 2X longer life over current cordless solutions delivers greater durability from common jobsite conditions and use. This is the most compact cordless rivet tool on the market, measuring only 6.5 in. in length allowing users more access in tight spaces. The M12 rivet tool is part of the M12 battery platform, offering 90+ solutions on one battery system.
Features
- Pull up to 3/16 in. stainless steel rivets
- Aluminum, steel, stainless steel - capacity

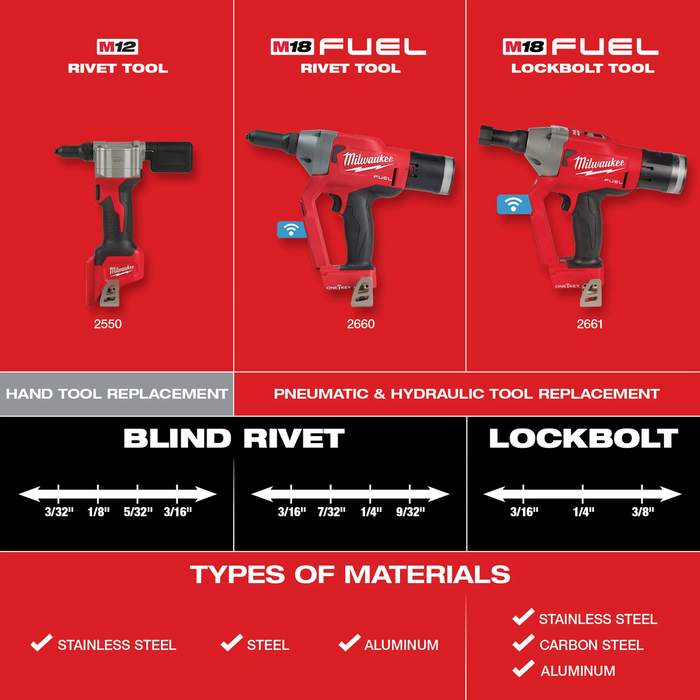

- Pull 3/32 in., 1/8 in., 5/32 in., 3/16 in. rivets
- Types of rivets used - 3/32 in. to 3/16 in. all material
- Mandrel sizes included - 3/32 in., 1/8 in., 5/32 in., 3/16 in.
- 450 pcs. of 1/8 in. steel rivets per charge
- Part of 90+ solutions on the M12 platform
- 2,000 lbs. pulls force
- Nose reach = 1.55 in.
- 0.8 in. stroke length
- Tool holds rivet in any orientation
Specifications
- Stroke: 0.8 in
- ANSI Safety Listing: No
- Charger Included: No
- Overall Height: 10.75 in
- Net Tool Weight: 4.15 lbs
- Powered Tool Power Source: Electric - Cordless
- Maximum Pulling Force: 2000.0 lbs
- Battery Composition: Lithium-Ion (Li-ion)
- Soft Grip: No
- Overall Length: 6.5 in
- Case Included: No
- Handle Material: Plastic
- Rivet Gun Mandrel Sizes Included: 3/32", 1/8", 5/32", 3/16"
- Compatible Rivet Sizes: 3/32", 1/8", 5/32", 3/16"
- Swivel Head: No
- Color / Finish: Red/Black
- Rivets Included: No
- Battery Voltage (V): 12
- Rivet Gun Nose Reach: 1.55
- Mandrel Wrench Included: Yes
- Housing Material: Aluminum
- Rivets Used: Aluminum, Steel, Stainless Steel

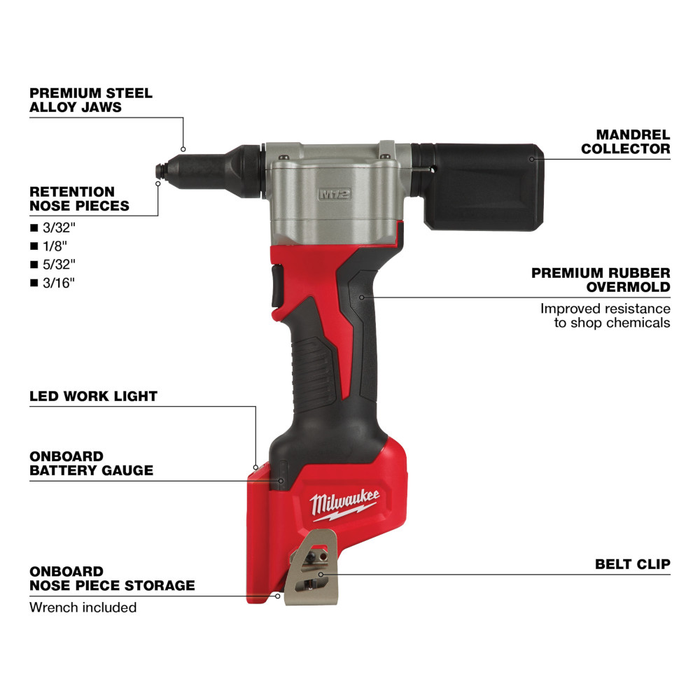

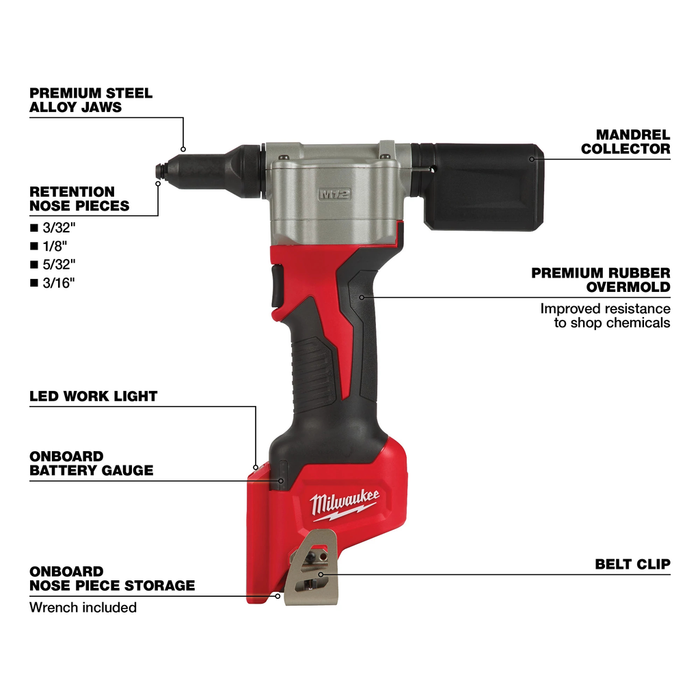

- Included Accessories: Nose Piece Wrench, Mandrel Collector, On board bit storage, belt clip, lanyard tie off
- Country of Origin: Vietnam
- Number of Batteries Required: 1
- Rivet Stem Catch: Yes
- High/Low Power Adjustment: No
- Battery Size: 12 Volt
