345001 Camo Marksman Pro Edge Guide 3/16'' spacing
by Gap Power
SKU 518-9071
Original price
$54.95
-
Original price
$54.95
Original price
$54.95
$54.95
$54.95
-
$54.95
Current price
$54.95
In-Store Availability
Stock Status:
Limited Stock (1-2?)
Location:
Aisle 15 left side
Aisle View
Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase
Overview

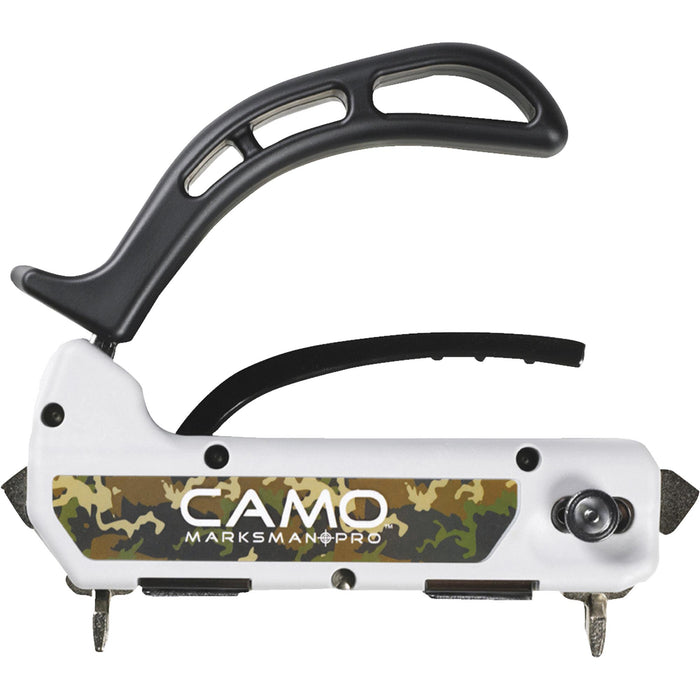

The CAMO Marksman Pro Edge Guide (0345001) is designed for hidden deck fastening applications requiring a 3/16-inch board spacing on hardwood, composite, and PVC decking boards.
| Specification | Detail |
|---|---|
| MPN | 0345001 |
| Brand | CAMO |
| Weight | 1.00 lb |
| Dimensions | 8" H x 9.75" W x 2.5" L |
| Board Spacing | 3/16 inch |
| Compatible Board Types | Hardwood, Composite, PVC |
| Drive Bit Compatibility | T-15 Star Drive (not included with tool) |
| Color | Grey |
| Category | Hardware |
Technical Features
- Automatic 3/16-inch board spacing: The Marksman Pro tool self-registers the gap between deck boards during installation, eliminating the need for manual spacers and reducing layout errors.
- Edge-angle fastening geometry: CAMO edge deck screws are inserted into each side of the tool and driven at an angle through the edge of the board, pinning boards from both sides and leveraging the full structural length of the screw.
- Fastener-free deck surface: Screws are concealed on the board edge rather than the top face, producing a clean, professional deck surface with no visible fastener heads.
- Automatic depth control via T-15 star drive: When used with the T-15 star drive bit, the system achieves a consistent, calibrated screw depth — the T-15 bit is included with compatible CAMO edge deck screws but is not included with this tool.
- Compatible with CAMO edge deck screws: Designed specifically for use with CAMO's coated trimhead hidden edge deck screws, which feature a rake tip design, coarse thread, and anti-split auger action.
Applications
- Hidden deck fastening on hardwood decking boards requiring a 3/16-inch spacing
- Composite decking installations where a fastener-free top surface is specified
- PVC decking applications requiring controlled board-to-board gap uniformity
- Professional deck construction and residential deck builds where surface aesthetics and structural integrity are both priorities
