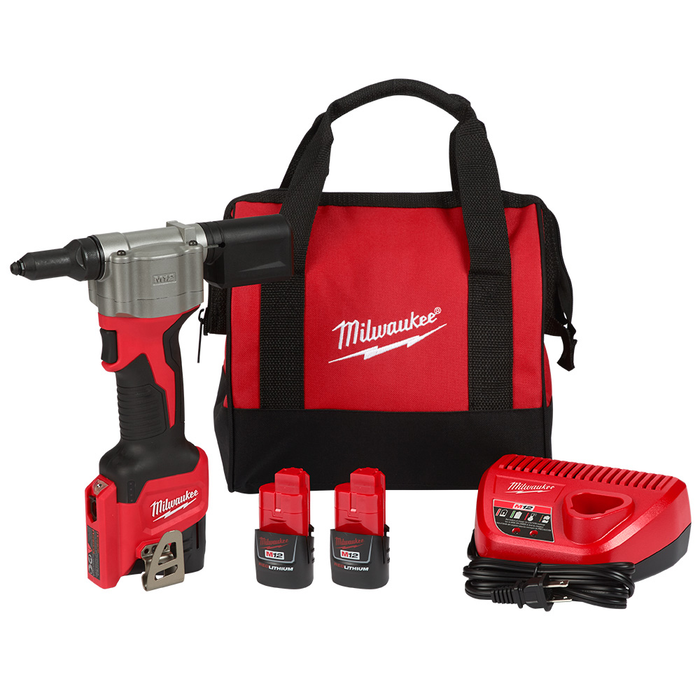

M12™ Rivet Tool Kit
The M12™ rivet tool is the first cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. The 2550-20 can pull up to 3/16 in. stainless steel rivets, 450 pcs. of 1/8 in. steel rivets on one 1.5 amp hour charge, and reduces muscle effort from a hand tool by over 60%. No compressors or hoses during set up and operation makes this tool a great replacement to pneumatic products. 2X longer life over current cordless solutions delivers greater durability from common jobsite conditions and use. This is the most compact cordless rivet tool on the market, measuring only 6.5 in. in length allowing users more access in tight spaces. The M12 rivet tool is part of the M12 battery platform, offering 90+ solutions on one battery system.

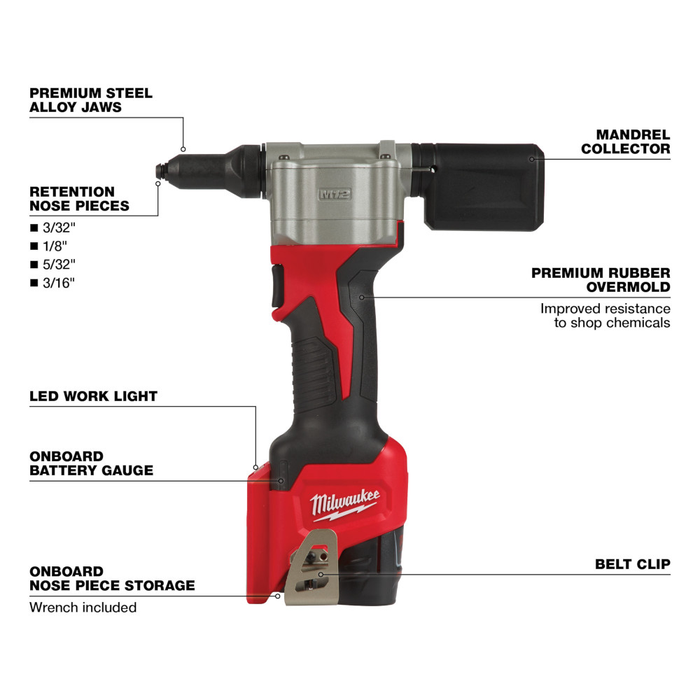

Features
- Aluminum, steel, stainless steel - capacity
- Part of 90+ solutions on the M12 platform
- 0.8 in. stroke length
- Mandrel sizes included - 3/32 in., 1/8 in., 5/32 in., 3/16 in.
- 450 pcs. of 1/8 in. steel rivets per charge
- Nose reach = 1.55 in.
- 2,000 lbs. pulls force
- Tool holds rivet in any orientation

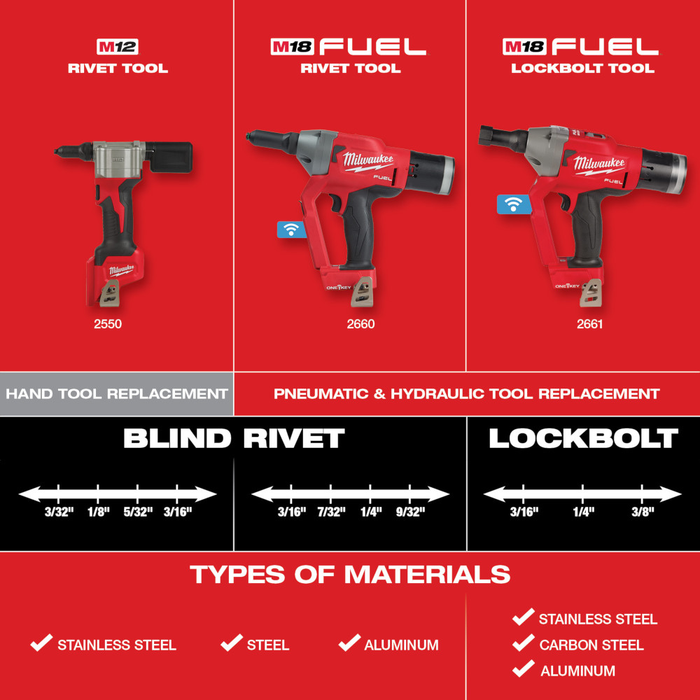

- Pull 3/32 in., 1/8 in., 5/32 in., 3/16 in. rivets
- Pull up to 3/16 in. stainless steel rivets
- Types of rivets used - 3/32 in. to 3/16 in. all material
Specifications
- Case Included: No
- High/Low Power Adjustment: No
- Maximum Pulling Force: 2000.0 lbs

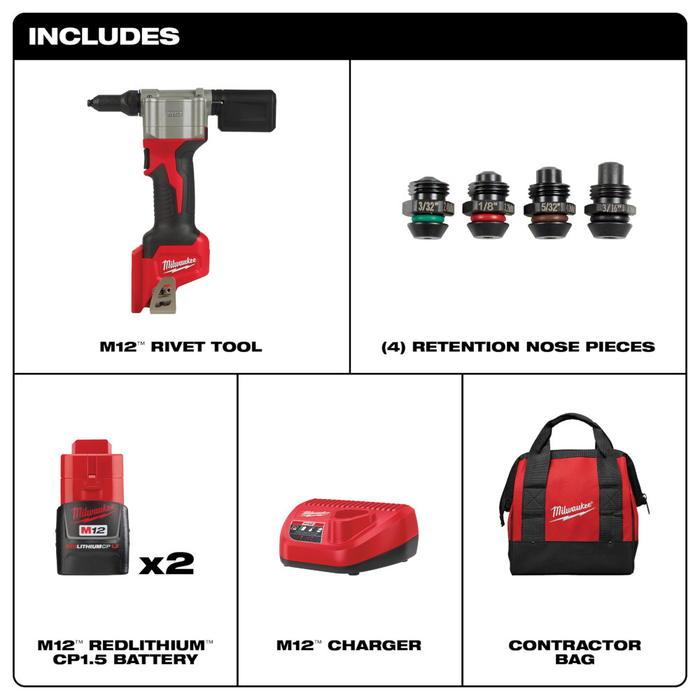

- Included Accessories: Nose Piece Wrench, Mandrel Collector, On board bit storage, belt clip, lanyard tie off
- Net Tool Weight: 4.15 lbs
- Rivet Stem Catch: Yes
- Swivel Head: No
- Rivets Included: No
- Rivet Gun Mandrel Sizes Included: 3/32", 1/8", 5/32", 3/16"
- Rivet Gun Nose Reach: 1.550000
- Battery Voltage (V): 12
- Charger Included: Yes
- Soft Grip: No
- Stroke: 0.800000 in
- Overall Height: 10.750000 in
- Country of Origin: Vietnam
- Battery Size: 12 Volt
- Battery Composition: Lithium-Ion (Li-ion)
- Number of Batteries Included: 2
- Mandrel Wrench Included: Yes
- Number of Batteries Required: 1
- Overall Length: 6.500000 in
- ANSI Safety Listing: No
- Compatible Rivet Sizes: 3/32", 1/8", 5/32", 3/16"
- Rivets Used: Aluminum, Steel, Stainless Steel
- Housing Material: Aluminum
- Handle Material: Plastic
- Powered Tool Power Source: Electric - Cordless
- Color / Finish: Red/Black
