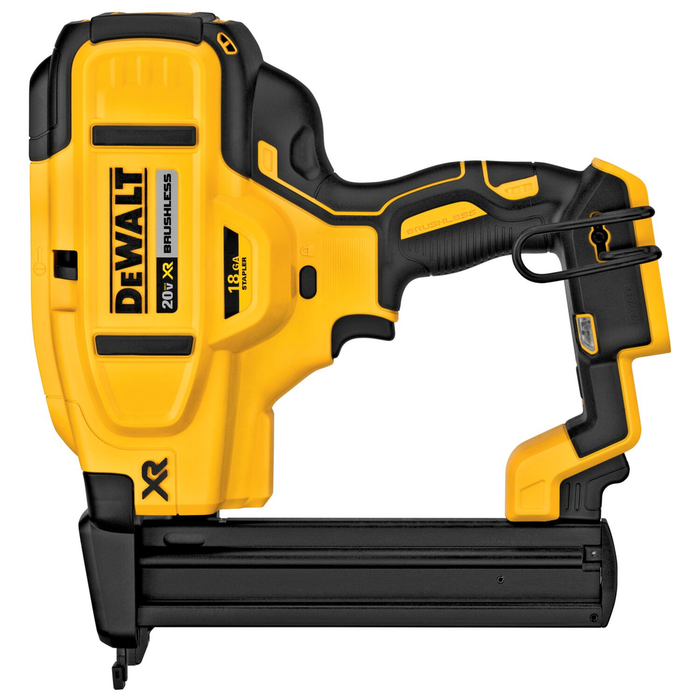

DEWALT 20V MAX* XR 18 GA Cordless Narrow Crown Stapler (Tool Only)
Aisle View
Tap to enlarge

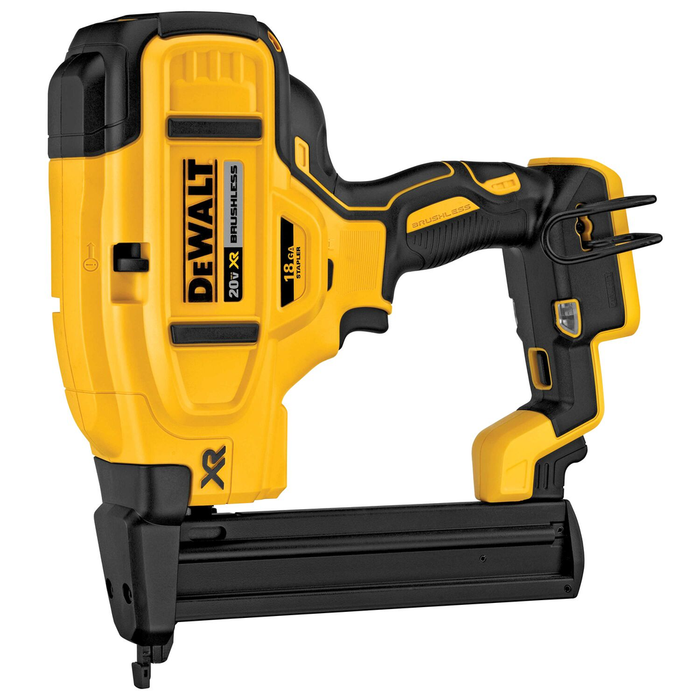

The DEWALT DCN681 18 Gauge Narrow Crown Stapler drives 18 Gauge 1/4 in narrow crown staples from 1/2 in to 1-1/2 in which makes it ideal for cabinetry, furniture, paneling, and flooring underlayment. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN681 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. Battery & Charger Sold Separately
Features

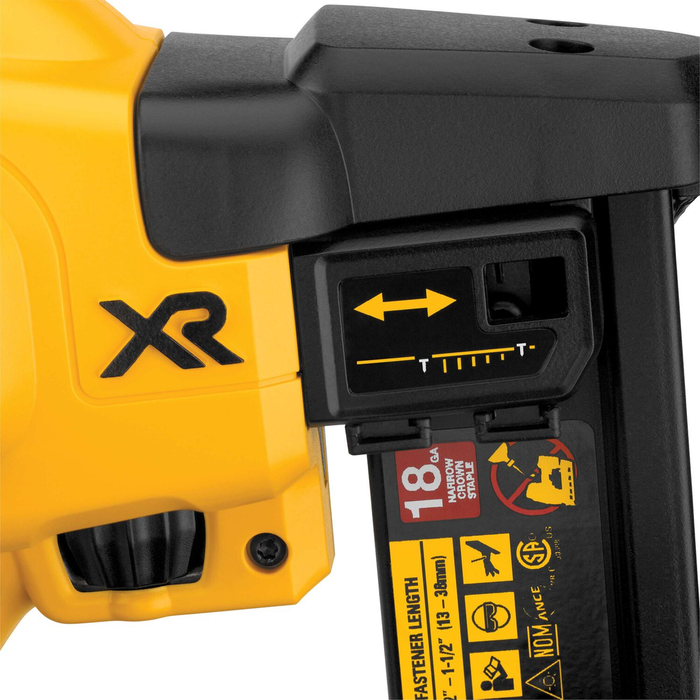

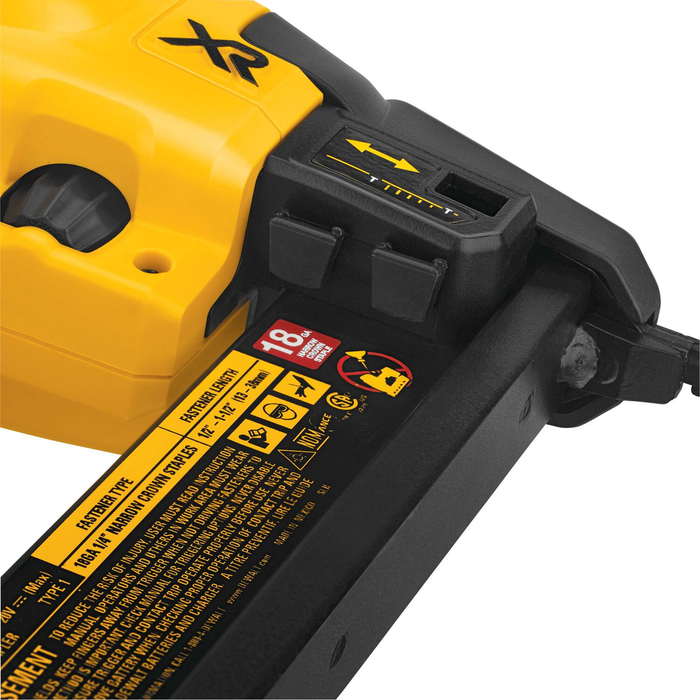

- Tool-free depth adjustment for precise countersinking of staples
- Low nail lockout prevents dry firing and unwanted marks on the work material
- Brushless motor maximizes runtime and durability
- 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics

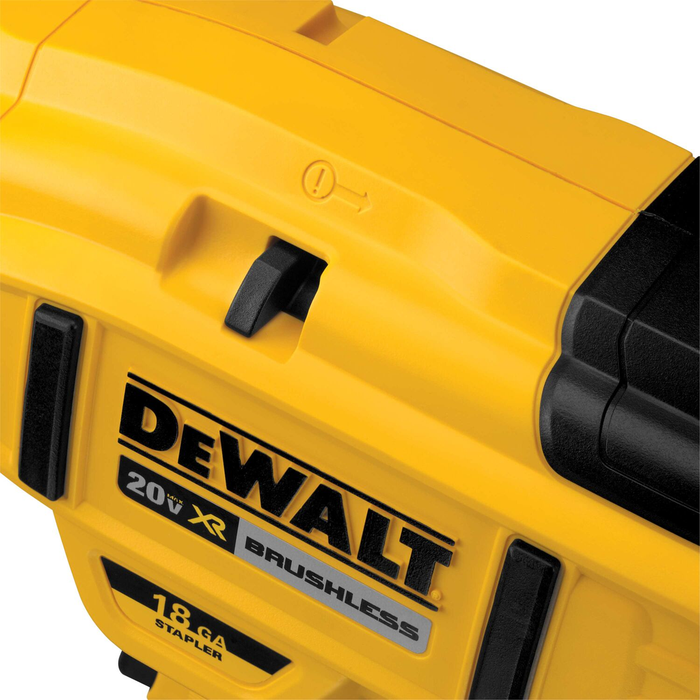

- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall

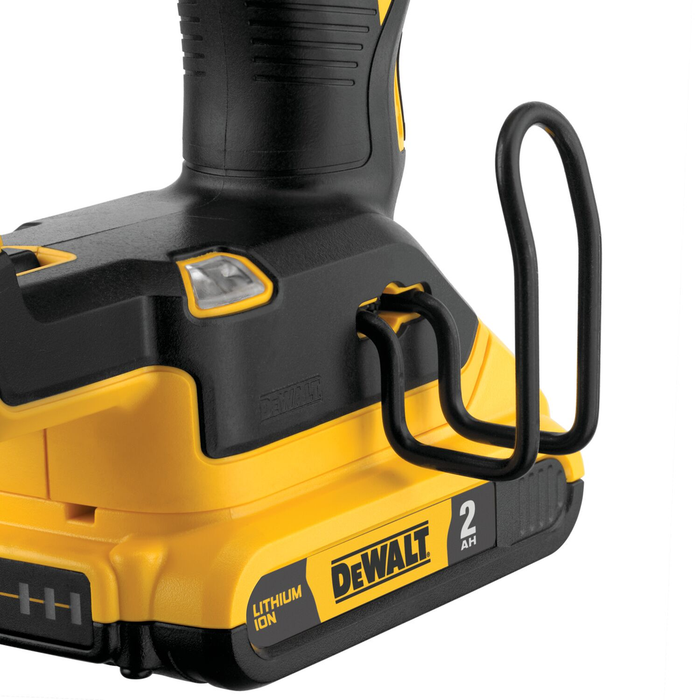

- Adjustable belt hook for left or right attachment depending on user preference
- Tool-free selectable trigger for sequential or contact actuation modes
- Bottom Load magazine for easy loading and removal of jammed fasteners
- Compatible with all DEWALT 20V MAX batteries
Includes
- (1) DCN681 - Narrow Crown Stapler
Prop 65
- No
Disclaimer
- * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
Specifications
- Nailer Features: No Features
- Charger Included: No
- Battery Required: Yes
- Range: 18 gauge
- Product Type: CROWN STAPLER
- Number Of Batteries Required: 1
- Battery Type: 20V MAX Lithium Ion
- Fastener Length: 1/2" to 1-1/2
- Height: 4.490 in
- Width: 11.970 in
- Motor Type: Brushless
- Housing Material: Plastic
- Weight: 6.700 lbs
- Engine: Brushless
- Multi-Purpose: Single Purpose
- Product Finish: Yellow/Black
- Battery Included: No
- Firing Mode: Full Sequential
- Minimum Fastener Size: 1/2 in
- Voltage: 20 V V
- Country of Origin: Mexico
- Cordless Vs. Corded: Cordless
- Warranty: 3LW1YS90D
- Bare Tool: Yes
- Maximum Fastener Size: 1-1/2 in
- Crown Size: 1/2" to 1-1/2 In
- Length: 12.615 in
