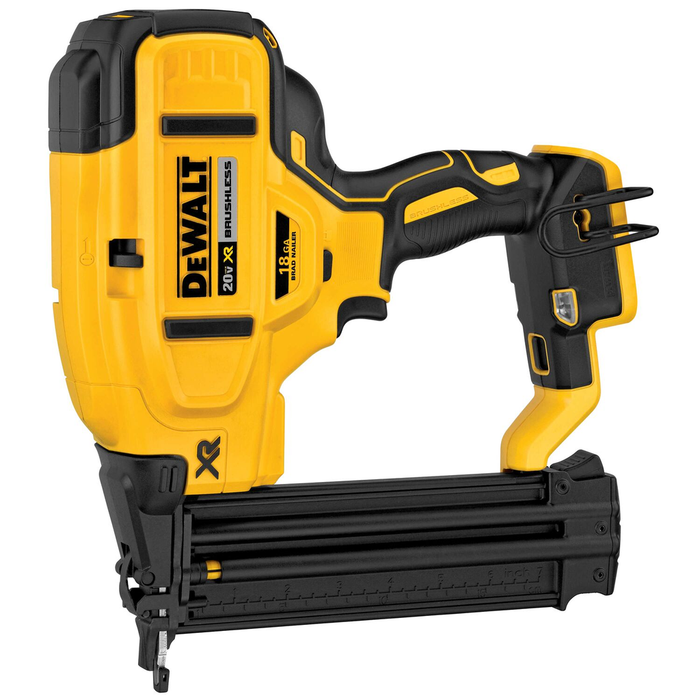

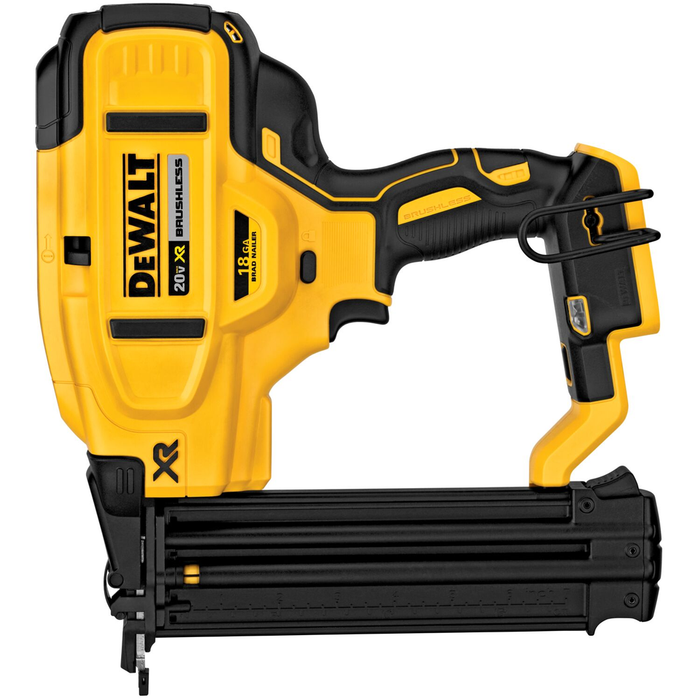

DEWALT 20V MAX* XR 18 Guage Cordless Brad Nailer (Tool Only)

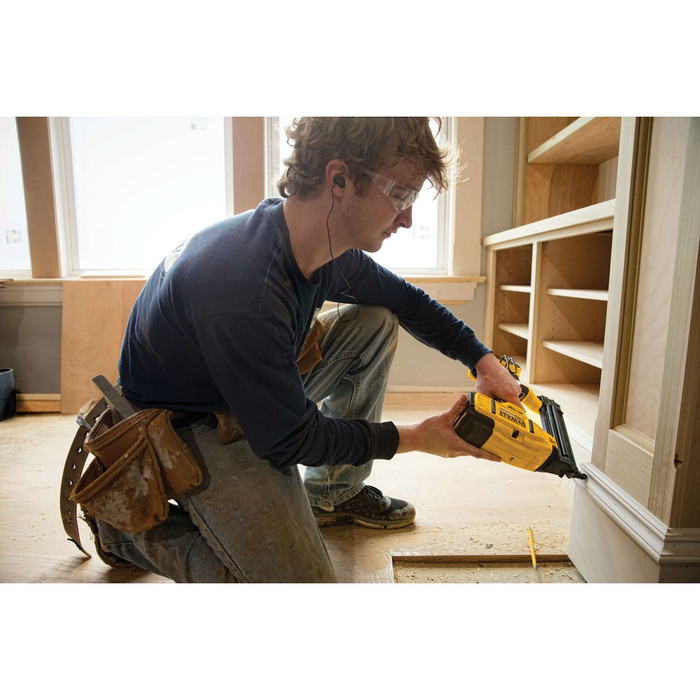

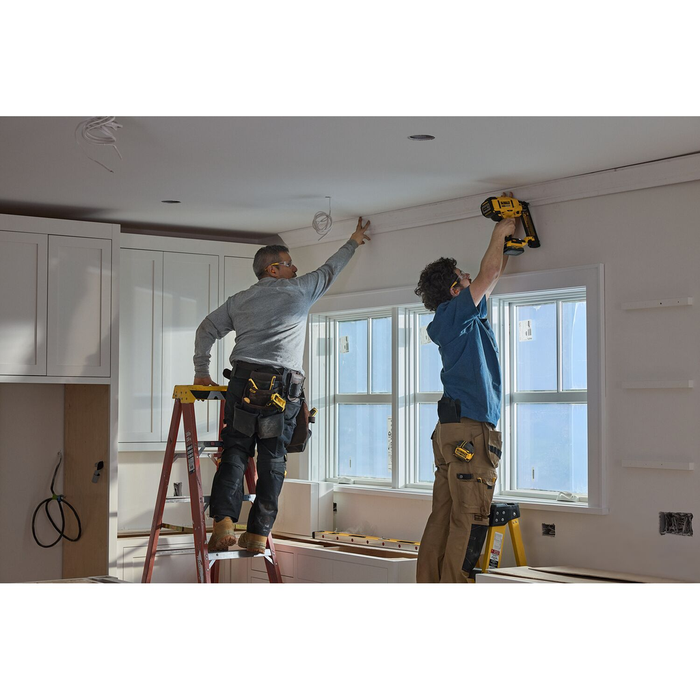

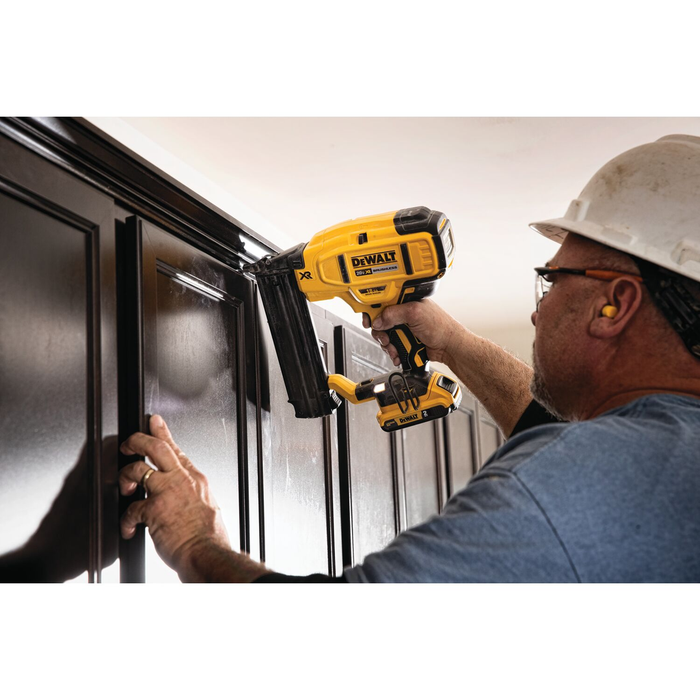

The DEWALT DCN680 18 Gauge Brad Nailer drives 18 Gauge brad nails from 5/8 in to 2-1/8 in which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. Battery & Charger Sold Separately

Disclaimer

• * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Features

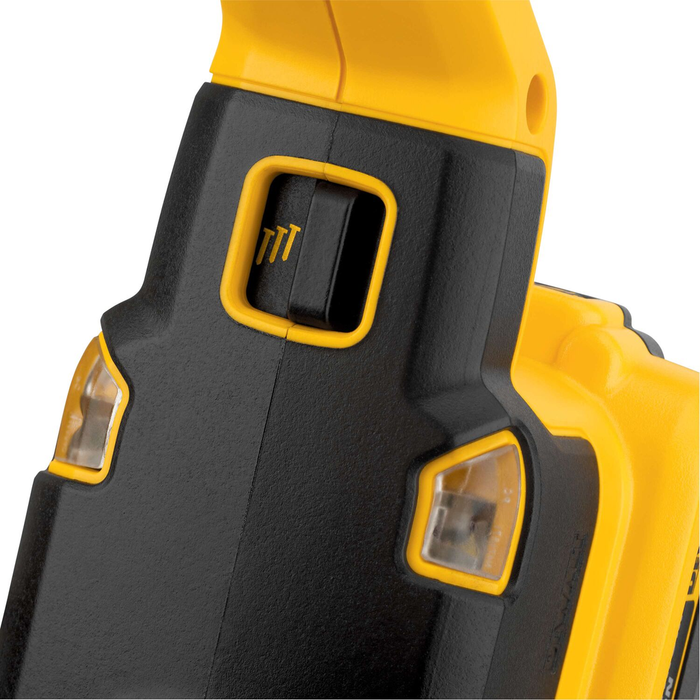

• Tool-free selectable trigger for sequential or contact actuation modes

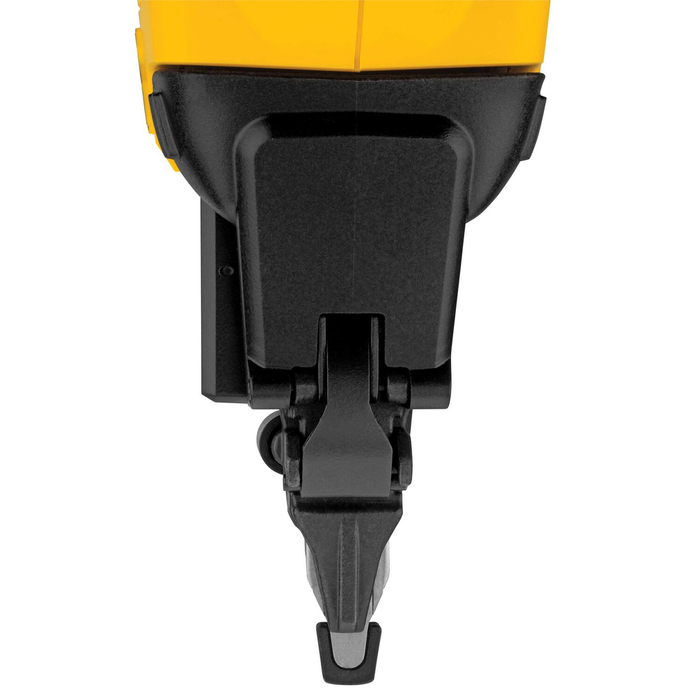

• Micro nose improves line of sight and accuracy of nail placement (Compared to DEWALT DC608)

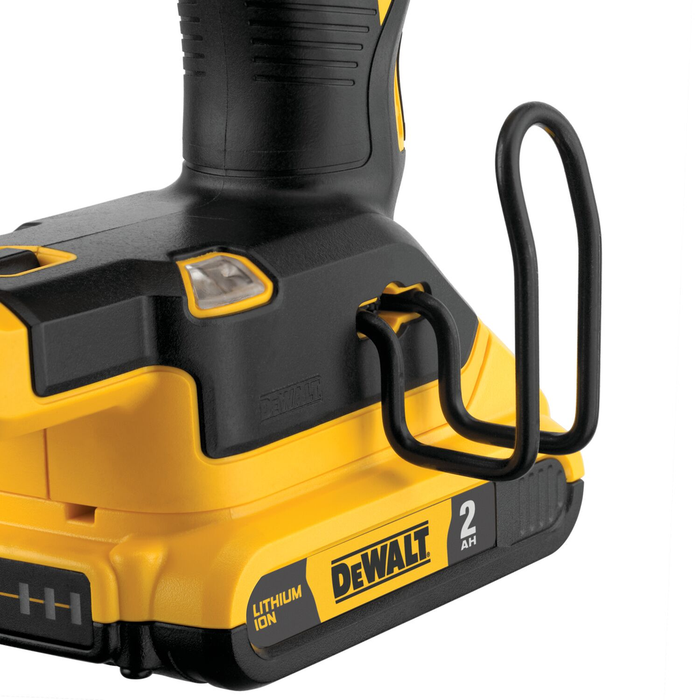

• Adjustable belt hook for left or right attachment depending on user preference
• Low nail lockout prevents dry firing and unwanted marks on the work material

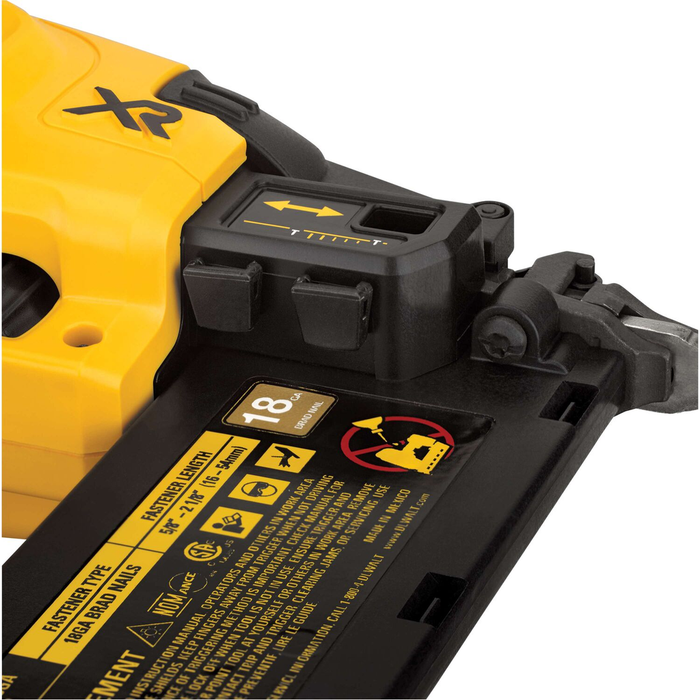

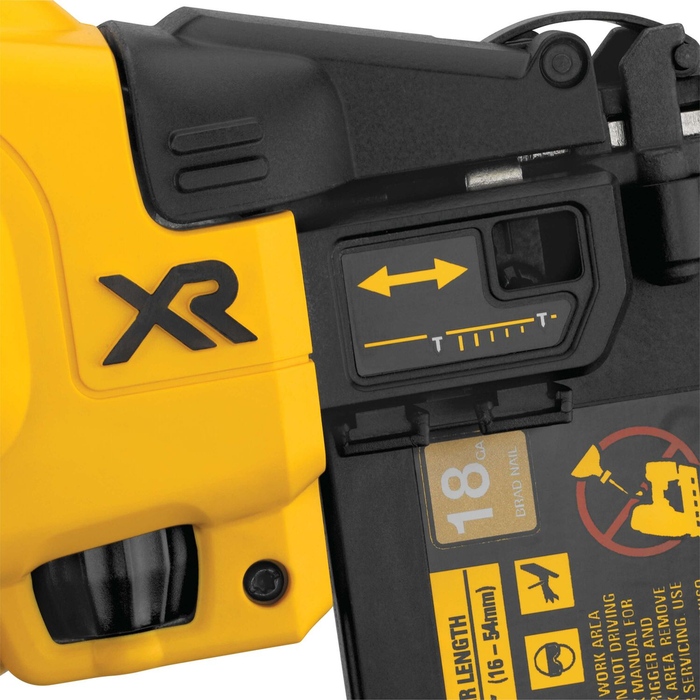

• Tool-free depth adjustment for precise countersinking of nails

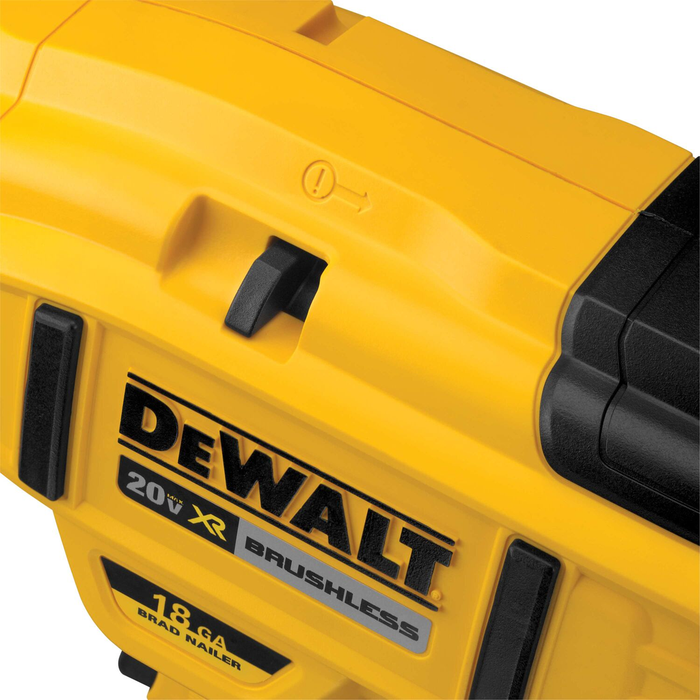

• Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
• Brushless motor maximizes runtime and durability

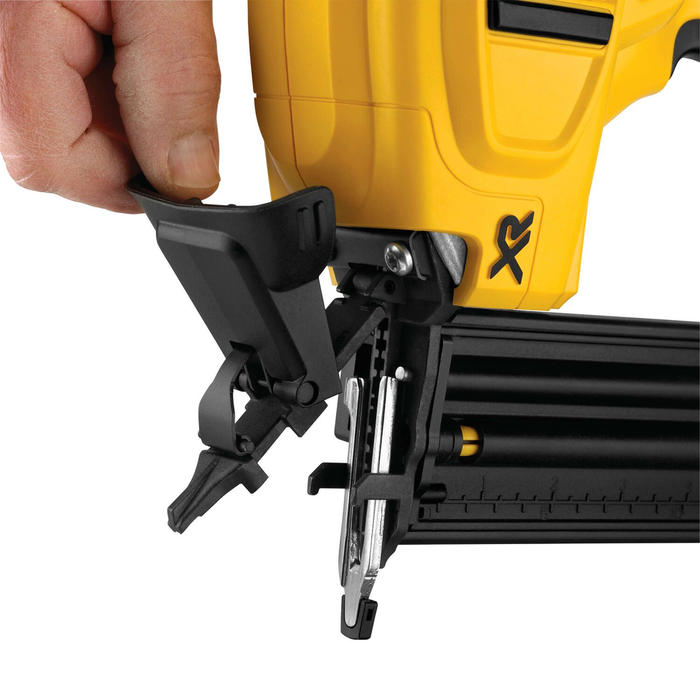

• Tool-free jam release to quickly and easily clear nail jams
• 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
• Multi-functional LED lights help to provide both workspace illumination and tool diagnostics

Prop 65

• Yes

Includes

• (1) DCN680 - Brad nailer

Specifications

• Warranty: 3LW1YS90D
• Integrated Work Light: Yes
• Case Type: N/A (no case)
• Nailer Features: No Features
• Engine: Brushless
• Adjustable Depth: Yes (Tools Not Required)
• Maximum Fastener Size: 2-1/8 in
• Weight: 6.340 lbs
• Battery Type: 20V MAX Lithium Ion
• Height: 4.100 in
• Net Lit-Ion Y/N: Yes
• Voltage: 20 V V
• Loading Type: Coil
• Multi-Purpose: Single Purpose
• Number Of Batteries Required: 1
• Nail Gauge: 18 gauge
• Fastener Length: 2.125
• Minimum Length: 0.625 In
• Motor Type: Brushless
• Charger Included: No
• Nails Per Charge: 1200
• Maximum Length: 2.125 In
• Product Type: BRAD NAILER
• Minimum Fastener Size: 5/8 in
• Battery Included: No
• Width: 11.850 in
• Battery Required: Yes
• Kit: No
• Range: 18 Gauge
• Cordless Vs. Corded: Cordless
• Nail Gun Angle: 0 degree
• Bare Tool: Yes
• Housing Material: Plastic
• Country of Origin: Mexico
• Firing Mode: Full Sequential
• Gauge: 18
• Length: 13.230 in
