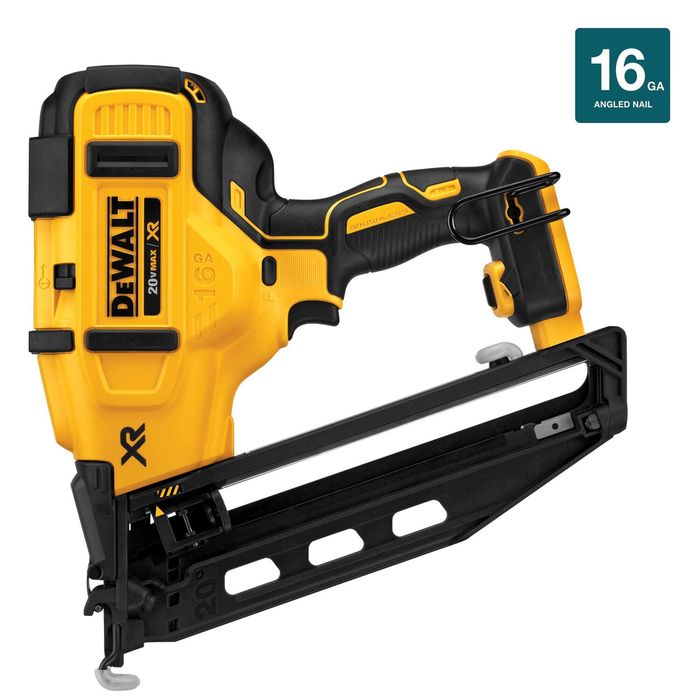

DEWALT 20V MAX* XR 16 GA Cordless Angled Finish Nailer - Tool Only

by DEWALT
SKU DCN660B
$399.00 - $399.00
$399.00
$399.00
$399.00 - $399.00
$399.00
In-Store Availability
Stock Status: 5+ Location: Aisle 14
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

The DEWALT DCN660 16 Gauge Angled Finish Nailer drives 16 Gauge angled finish nails from 1-1/4" to 2-1/2" which makes it ideal for fastening crown molding, casing, and baseboards. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN660 is ready to go to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. - Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. Battery & Charger Sold Separately

Features

  • Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
  • Brushless motor maximizes runtime and durability
  • Adjustable belt hook for left or right attachment depending on user preference
  • Inline magazine provides easy use in multiple orientations and in tight spaces
  • Compatible with all DEWALT 20V MAX batteries
  • Tool-free jam release to quickly and easily clear nail jams
  • Tool-free selectable trigger for sequential or contact actuation modes
  • Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
  • 100% battery powered. Eliminates the hassle of using gas, compressor, and hose
  • Tool-free depth adjustment for precise countersinking of nails

Includes

  • (1) DCN660 - Angled Finish Nailer

Prop 65

  • Yes

Disclaimer

  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Specifications

  • Product Type: FINISHING NAILER
  • Warranty: 3LW1YS90D
  • Net Lit-Ion Y/N: Yes
  • Nailer Features: No Features
  • Adjustable Depth: Yes (Tools Not Required)
  • Country of Origin: Mexico
  • Length: 13.320 in
  • Housing Material: Plastic
  • Battery Required: Yes
  • Weight: 6.550 lbs
  • Minimum Fastener Size: 1-1/4 in
  • Case Type: N/A (no case)
  • Maximum Fastener Size: 2-1/2 in
  • Charger Included: No
  • Number Of Batteries Required: 1
  • Gauge: 16
  • Battery Type: 20V MAX Lithium Ion
  • Magazine Capacity: 110
  • Nail Gun Angle: 20 degree
  • Multi-Purpose: Single Purpose
  • Voltage: 20 V V
  • Bare Tool: Yes
  • Nail Gauge: 16 gauge
  • Motor Type: Brushless
  • Height: 12.375 in
  • Cordless Vs. Corded: Cordless
  • Firing Mode: Full Sequential
  • Integrated Work Light: Yes
  • Nails Per Charge: 800
  • Loading Type: Strip
  • Magazine Angle: 20.0
  • Minimum Length: 1.25 In
  • Width: 4.375 in
  • Maximum Length: 2.5 In
  • Battery Included: No
  • Fastener Length: 2.5 IN
  • Range: 16 Gauge
