M18™ Compact Brushless 1/2" Drill/ Driver

by Milwaukee Tool
SKU 3601-20
$139.00 - $139.00
$139.00
$139.00
$139.00 - $139.00
$139.00
In-Store Availability
Stock Status: 3+ Location: milwaukee
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

The MILWAUKEE® M18™ ½” Compact Brushless Drill/Driver is more compact with faster speed in application. The compact drill is 5.7” in length and lightweight at 2.3 lbs without battery allowing for excellent control, especially while working in overhead or tight spaces. The brushless motor was built to ensure optimal tool performance delivering 550 in-lbs of torque and 0-1,700 RPM, able to tackle a wide range of drilling and fastening applications. REDLINK™ Intelligence paired with MILWAUKEE® REDLITHIUM™ M18™ batteries ensures efficient power delivery resulting in less down time recharging batteries. The compact drill has premium components with an all-metal gear case and ½” metal chuck providing durability that professionals require. The Compact Brushless ½” Drill/Driver is part of the M18™ system, fully compatible with over 250+ solutions.

Features

  • 0-550 RPM / 0-1700 RPM
  • 5 year tool warranty
  • Compact design: provides excellent balance and control, ideal for overhead applications or work in tight spaces
  • 2.3 lbs tool only
  • Brushless Motor delivers the power to quickly complete most common applications
  • REDLINK™ Intelligence: Advanced overload protection defends against heavy duty applications and monitors the temperature to prevent damage and ensure maximum tool & battery life
  • All-metal gear case and 1/2 in. metal chuck: provide maximum impact and shock durability
  • 550 in./lbs. of torque
  • Includes: 3601-20 M18™ Drill Driver Bare Tool, Belt Clip
  • Only 5.7" in length

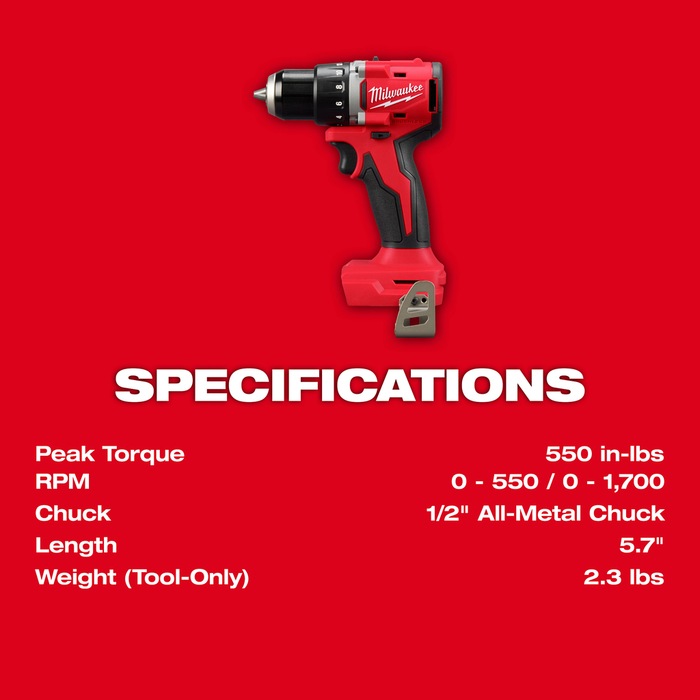

Specifications

  • Number of Clutch Settings: 13
  • Chuck Size: 1/2 in
  • Number of Speed Settings: 2
  • Brushless Motor: Yes
  • Number of Batteries Required: 1
  • Badge Branding: Not Applicable
  • ONE-KEY Enabled: No
  • Maximum Torque (in-lbs): 550
  • FUEL: No
  • Voltage: 18
  • Depth: 4.02 Inches
  • Color Finish: Black;Red
  • Power Tool Branding: Compact Brushless
  • Surge: No
  • Country of Origin: Mexico
  • Rotations Per Minute Range (RPM): 0-1,700
  • Weight - Battery Installed (lb): 3.2
  • Chuck Type: All Metal
  • Hammer Function: No
  • Switch Type: Trigger
  • Weight Excluding Battery (lb): 2.3
  • Battery System: M18™
  • Material: Metal
  • Maximum RPM: 1700
  • Motor Type: Brushless
