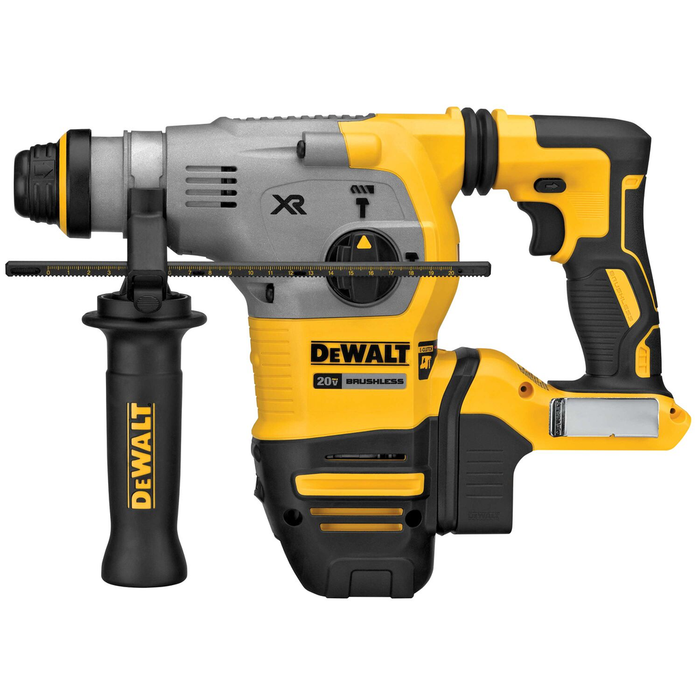

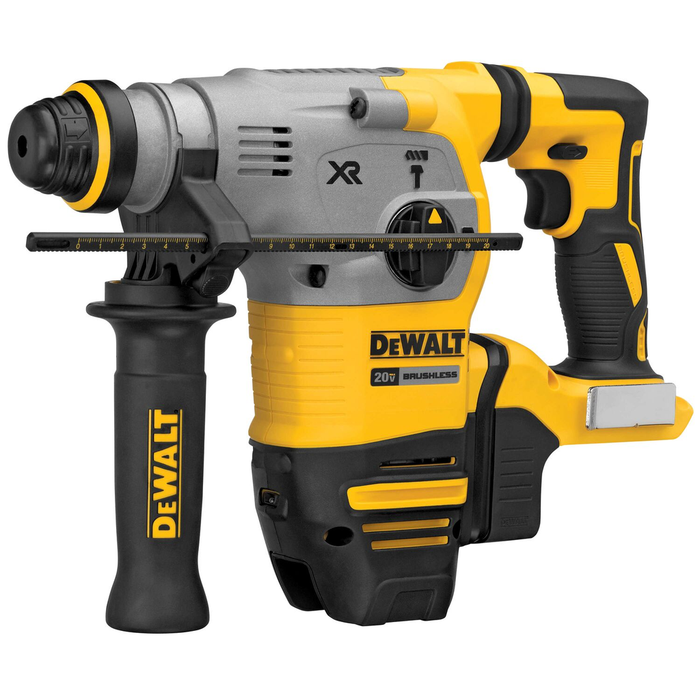

DEWALT 20V MAX* XR Brushless Cordless 1-1/8 in. SDS PLUS L-Shape Rotary Hammer (Tool Only)

by DEWALT
SKU DCH293B
$435.00 - $435.00
$435.00
$435.00
$435.00 - $435.00
$435.00
In-Store Availability
Stock Status: 25+ Location: dewalt
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

Complete large-diameter hole drilling with the 20V MAX XR 1-1/8 in. L-Shape Rotary Hammer powered by a brushless motor and a durable German-engineered mechanism. Featuring a balanced design, this high-performance hammer delivers 3.5 Joules of impact energy. Built with safety in mind, this tool has the SHOCKS ACTIVE VIBRATION CONTROL System and the Anti-Rotation E-CLUTCH System. Get OSHA Table 1 Compliance when used with the DWH304DH On Board Extractor.

Features

  • 3 modes: selectable drilling, percussion, and chiseling
  • 3.5j impact energy (epta 05/2009): for faster drilling and demolition
  • No-load speed: 0-1000 RPM
  • Brush-free motor: less maintenance and longer life
  • Blows per minute: 0-4480
  • Shocks: active vibration control, part of the perform & protect system, reduces vibration for greater grip comfort and productivity
  • Optimal drilling in concrete: 5/8" - 7/8" (16mm - 22mm)

Disclaimer

  • * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Prop 65

  • Yes

Includes

  • (1) 360° Side handle | (1) Depth rod | (1) DCH293 Rotary hammer

Specifications

  • Maximum Chuck Size: 1-1/8-in
  • Product Primary Material: Metal
  • Forward And Reverse Switch Included: Yes
  • Works With Android: No
  • Watt Hours: 120
  • Net Lit-Ion Y/N: Yes
  • Length: 15.500 in
  • Warranty: 3LW1YS90D
  • Chuck Size: 1-1/8 in
  • Motor Type: Brushless
  • Bare Tool: Yes
  • Cordless Vs. Corded: Cordless
  • Wifi Compatibility: No
  • Chuck Type: SDS-Plus
  • Impacts / Blows / Blasts Per Min: 4480
  • Product Material Group: METAL
  • Maximum Speed: 1000 RPM Rpm
  • Height: 10.630 in
  • Battery Type: 20V MAX Lithium Ion
  • Housing Material: Plastic
  • Width: 4.000 in
  • Handle Material: Plastic
  • App Compatibility: No
  • Battery Required: Yes
  • Works With Ios: No
  • Side Handle Included: No
  • Country of Origin: Czechia
  • Maximum Capacity Concrete: 0.875 In
  • Floor Loaded: No
  • Product Type: ROTARY HAMMER DRILL
  • Integrated Work Light: Not Featured
  • Reversible: No
  • Voltage: 20 V V
  • Battery Included: No
  • Number Of Batteries Required: 1
  • Weight: 9.150 lbs
  • Case Type: N/A (no case)
  • Keyless/Keyed: Keyless
  • Variable Speed: Yes
  • Bluetooth Compatibility: No
  • Thin Wall Bit Capactiy: Yes
  • Handle Type: D-Handle
  • Right Angle: No
  • Battery Amp Hours: 6 Ah Ah
  • Kit: Yes
  • Charger Included: No
