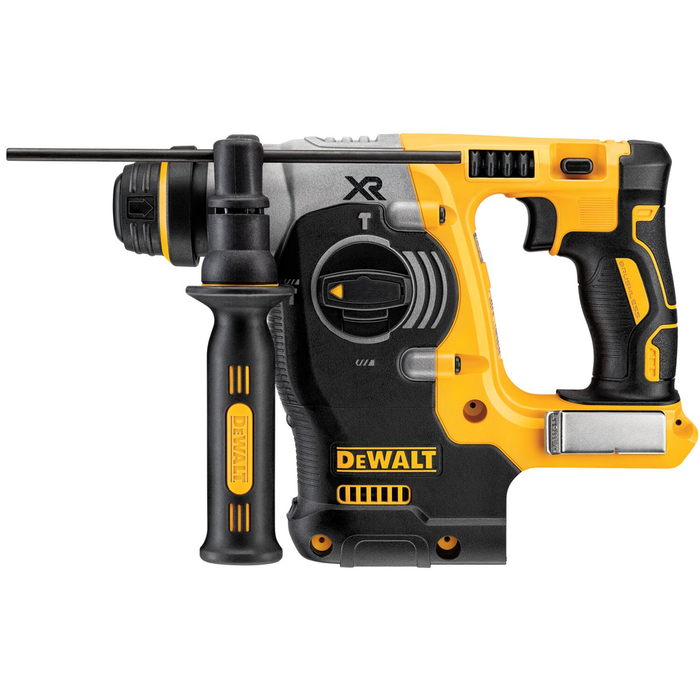

DEWALT 20V MAX XR Brushless Cordless 1-in. (25mm) SDS PLUS L-Shape Rotary Hammer (Tool Only)

by DEWALT
SKU DCH273B
$322.00 - $322.00
$322.00
$322.00
$322.00 - $322.00
$322.00
In-Store Availability
Stock Status: 25+ Location: dewalt
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

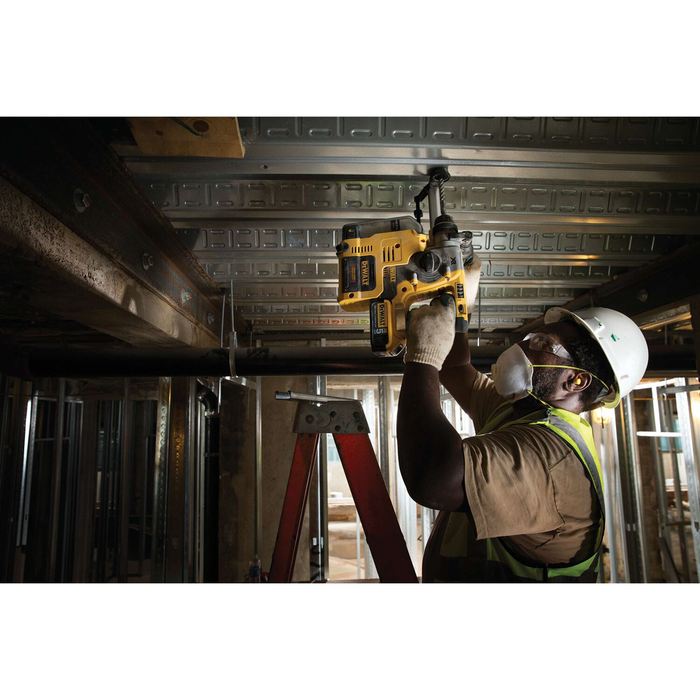

Complete rod hanging, seismic and safety attachments, cable tray and strut mounting, clamp mounting, and/or rail mounting applications with the 20V MAX XR 1 in. Rotary Hammer. This high-performance drill is powered by a brushless motor and a durable German-engineered mechanism that delivers 2.1 Joules of impact energy. Equipped with SHOCKS ACTIVE VIBRATION CONTROL, this tool helps maximize productivity on tough jobs.

Features

  • 2.1 Joules of impact energy for fast drilling in concrete.
  • Rotating Dial to set tool to a specific application mode - Drill, Hammer Drill, or Chip.
  • Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
  • Lightweight design makes this tool ideal for rod hanging, seismic & safety attachments, cable tray & strut mounting, clamp mounting, and rail mounting.
  • OSHA table 1 compliant when paired with DWH303DH on board extractor.
  • SHOCKS active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.

Disclaimer

  • Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Prop 65

  • Yes

Includes

  • (1) DCH273 Rotary hammer | (1) 360° Side handle | (1) Depth rod | (1) Adjustable hook

Specifications

  • Width: 8.500 in
  • Thin Wall Bit Capactiy: No
  • Works With Ios: No
  • Variable Speed: Yes
  • Length: 12.992 in
  • Maximum Chuck Size: 1-in
  • Works With Android: No
  • Wifi Compatibility: No
  • Handle Type: D-Ring
  • Maximum Capacity Steel: 0.5 In
  • Maximum Capacity Wood: 1.0 In
  • Handle Material: Plastic
  • Charger Included: Yes
  • Weight: 6.393 lbs
  • Product Type: ROTARY HAMMER DRILL
  • Chuck Type: SDS-Plus
  • Chuck Size: 1 in
  • Case Type: Hard
  • Voltage: 20 V V
  • Forward And Reverse Switch Included: Yes
  • Country of Origin: China
  • Maximum Speed: 1100 RPM Rpm
  • Side Handle Included: Yes
  • Housing Material: Plastic
  • Drive Size: 1 in
  • App Compatibility: No
  • Product Finish: Yellow/Black
  • Impacts / Blows / Blasts Per Min: 4600
  • Reversible: No
  • Keyless/Keyed: Keyless
  • Maximum Capacity Concrete: 1 In
  • Bluetooth Compatibility: No
  • Engine: Brushless
  • Cordless Vs. Corded: Cordless
  • Height: 4.100 in
  • Integrated Work Light: Not Featured
  • Battery Type: 20V MAX Lithium Ion
  • Warranty: 3LW
