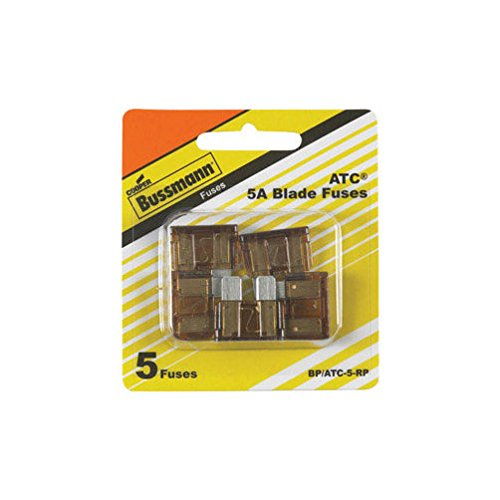

BP/ATC-5 FUSE BLADE AUTO 5A

BP/ATC-5 FUSE BLADE AUTO 5A

by Gap Power
SKU 619-4393
Sold out
$2.99 - $2.99
$2.99
$2.99
$2.99 - $2.99
$2.99
In-Store Availability
Stock Status: Limited Stock (1-2?) Location: Aisle E
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

Overview

The BP/ATC-5 Fuse Blade Auto 5A (BP-ATC-5-RP) is designed for automotive, marine, and electronics circuit protection in onboard electrical systems up to 32 volts.

Specification Detail
MPN BP-ATC-5-RP
Brand Eaton (Bussmann Series)
Amperage Rating 5A
Voltage Rating 32V
Fuse Type ATC Blade, Fast-Acting
Size 1/4 In. x 1-1/4 In.
Color Code Brown
Weight 1.0 lb (packaged)
Standard SAE Standard J1284
Certification UL Recognized

Technical Features

  • Fast-acting ATC blade fuse configuration: Provides rapid circuit interruption to protect sensitive onboard electronics from overcurrent damage.
  • Transparent housing: Allows direct visual inspection of the fuse link status without removal, enabling quick identification of a blown fuse and reducing diagnostic time on the job.
  • Color-coded brown housing with stamped amp rating: Conforms to industry-standard color coding and physical labeling so the correct replacement fuse can be selected immediately, minimizing misidentification.
  • Manufactured to SAE Standard J1284: Ensures dimensional and performance compliance with the established automotive and marine fuse standard, confirming fitment across a wide range of OEM fuse blocks.
  • UL Recognized: Independently verified to meet applicable safety requirements for use in automotive and marine electrical circuits.
  • 32V DC rating: Compatible with standard 12V and 24V automotive and marine electrical systems operating within this voltage threshold.
  • Multi-pack format: Supplied as a value pack to support fuse replacement preparedness or multiple simultaneous replacements, reducing cost per fuse compared to single-unit purchases.

Applications

  • Automotive onboard electrical system circuit protection
  • Marine vessel electrical circuit protection up to 32V
  • Consumer and light commercial electronics requiring ATC blade fuse protection
  • Direct replacement for any ATC/ATO-compatible fuse block requiring a 5A, fast-acting blade fuse
