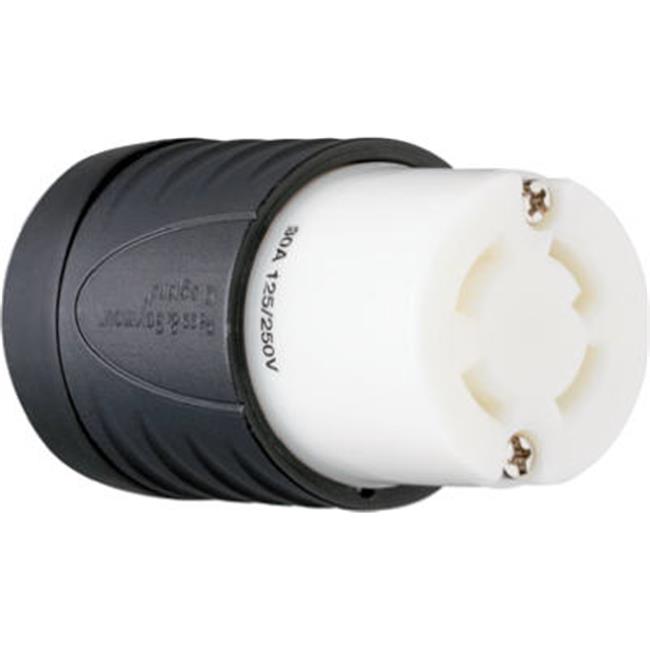

Legrand L14-30R, 30A, 125/250V, Female 4-Prung
by Gap Power
SKU 987-6087
Original price
$45.95
-
Original price
$45.95
Original price
$45.95
$45.95
$45.95
-
$45.95
Current price
$45.95
In-Store Availability
Stock Status:
Limited Stock (1-2?)
Location:
Not Specified
In-Store Only — Visit us in Gap, PA to purchase
Overview
The Legrand L14-30R Female Locking Connector (L1430CCCV3) is designed for 30A, 125/250V locking power connections in 3-pole, 4-wire grounding applications requiring NEMA L14-30R compatibility.
| Specification | Value |
|---|---|
| MPN | L1430CCCV3 |
| Brand / Manufacturer | Pass & Seymour (Legrand) |
| NEMA Configuration | L14-30R |
| Amperage | 30A |
| Voltage | 125/250V |
| Wiring Configuration | 3 Pole, 4 Wire Grounding |
| Connector Type | Locking Connector (Female) |
| Conductor Colors | Black & White |
| Blade Material | High-Strength Brass Alloy |
| Weight | 2.20 lb |
| Dimensions | 4.56 x 2.31 x 2.31 in |
| Certifications | UL Listed, CSA Certified, Federal Specification Compliant |
| Matching Plug | True Value #674-721 |
Technical Features
- High-strength brass alloy blades: Resist heat rise under sustained load, maintaining conductivity and connection integrity in demanding electrical environments.
- Color-coded wiring terminals: Simplify correct conductor identification during installation, reducing wiring errors on Black & White conductor configurations.
- Back-out ready terminals: Allow conductors to be positioned for wiring without the terminal screw being fully backed out, accelerating field installation.
- Hot-stamped amperage, voltage, and NEMA rating markings: Provide permanent, clearly legible identification directly on the device for quick job-site verification.
- NEMA L14-30R locking configuration: Ensures a secure, twist-lock connection that resists accidental disconnection under load in 30A, 125/250V circuits.
- 3-pole, 4-wire grounding design: Provides a dedicated ground path, meeting grounding requirements for generator and transfer switch applications.
- UL Listed, CSA Certified, and Federal Specification compliant: Confirms the connector meets recognized safety and performance standards for commercial and industrial use.
Applications
- Generator output connections requiring NEMA L14-30R female receptacle termination
- Portable generator cord assemblies for 125/250V, 30A service
- Transfer switch inlet connections in residential and light commercial installations
- Temporary power distribution setups at job sites requiring a locking 4-wire grounding connector
- Replacement or field-assembly connector for use with matching True Value plug #674-721
