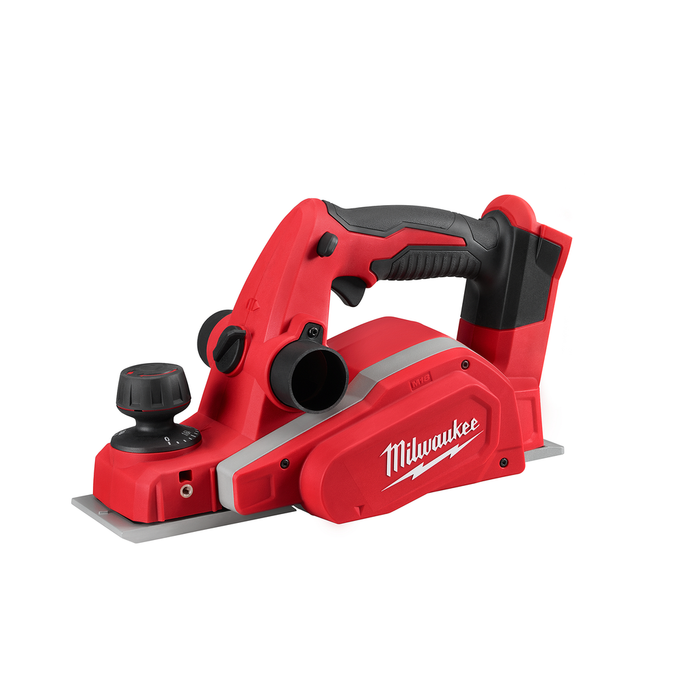

M18™ 3-1/4" Planer

The M18™ 3-1/4 in. planer delivers unmatched depth control & powerful stock removal for quick and precise material removal on soft or hard woods. The planer’s powerful motor allows the user to remove up to 5/64 in. in a single pass for increased productivity. The depth adjustment knob’s 20 locking positions allows for multiple depth settings and precise depth control. in addition the depth adjustment knob does not rotate past the 0 or 5/64 setting which allows users to quickly identify at what depth they are cutting without needing to re-zero the dial. The M18™ planer also provides up to a 27/64 in. rabbet cut capacity offering users more depth of cut when making ship lap joints. A left or right chip ejection feature allows users to aim shavings away from their eyes or finished surfaces; increasing safety, productivity, and accuracy.

Features

• Dual blade cutting head: 2 reversible carbide blades provide a smooth finish
• Spring-loaded kickstand: prevents blade from marring finished surfaces
• Bevel/edge guide: allows users to make straight, rabbet and bevel cuts up to a 45° angle
• Powerful motor: delivers up to 14,000 RPM
• Chip ejection switch: allows users to select left or right chip exhaust

Specifications

• FUEL: No
• Number of Batteries Required: 1
• Maximum Cutting Depth: 0.078 in
• Material: Metal
• Handle Type: NA
• ONE-KEY Enabled: No
• Badge Branding: Not Applicable
• Voltage: 18
• Country of Origin: Vietnam
• Battery Amp Hour (Ah): 3
• Maximum RPM: 14000
• Depth: 12.38 Inches
• Switch Type: Trigger
• Brushless Motor: No
• Color Finish: Red
• Blade Diameter: 3.25 in
• Battery System: M18™
• Power Tool Branding: Not Applicable
• Motor Type: Not Applicable
