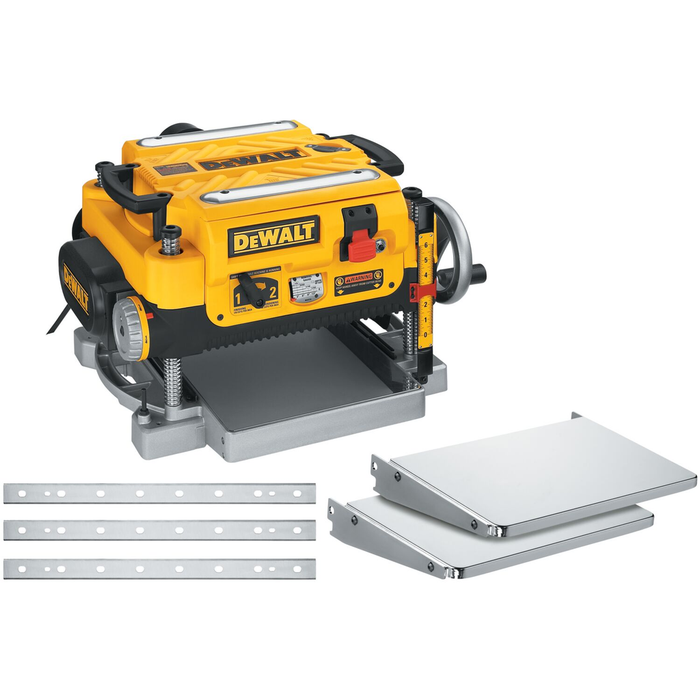

DEWALT 13 in. Three Knife, Two Speed Thickness Planer

by DEWALT
SKU DW735X
Original price $799.00 - Original price $799.00
Original price $799.00
$799.00
$799.00 - $799.00
Current price $799.00
In-Store Availability
Stock Status: 25+ Location: dewalt
Aisle View Aisle view Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase

The 13 in. Three Knife, Two Speed Thickness Planer is powered by a 15 Amp motor for managing large cuts in wider materials. Three-knife cutter head with 10,000 rpm and feed speed options for 96 or 179 CPI provide optimal performance. Includes infeed and outfeed tables and extra set of knives.

Features

  • Extra large turret depth-stop allows users to return to most frequently used thicknesses with ease
  • Includes infeed and outfeed tables and an extra set of knives
  • Powerful 15 amp, 20,000 rpm motor (10,000 rpm cutterhead speed) handles larger cuts in wider materials with ease
  • Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
  • Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
  • Three knife cutter head delivers 30% longer knife life and makes knife change faster and easier
  • Two-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
  • 19-3/4 in. cast aluminum base is 2 times more rigid than a standard 10 in. base and folding tables
  • Material removal gauge and extra large thickness scale deliver accurate cuts with every pass

Includes

  • (1) Dust Hose Adapter

Prop 65

  • Yes

Specifications

  • Adjustable Depth: Yes
  • Length: 24.310 in
  • Cord Length: 13.0 Ft
  • Wifi Compatibility: No
  • Switch Type: Speed Gear Box
  • Blade Qty: 3
  • Variable Speed: Yes
  • Weight: 100.670 lbs
  • Handle Material: Plastic
  • Battery Included: No
  • Width: 21.760 in
  • Case Type: No Case Included
  • Kit: Yes
  • Warranty: 3LW1YS90D
  • Maximum Cut Depth @ 45 Deg.: .125
  • Product Type: PLANER ACCESSORY
  • Amperage: 15.0
  • Housing Material: Plastic
  • Uncertainty K1 (Vibration): 2
  • Motor Type: Brushed
  • Country of Origin: Taiwan
  • Product Finish: Yellow | Black
  • Cutting Width: 13 In
  • Height: 20.520 in
  • Blade Type: Disposable, Reversible
  • Number Of Speeds: Variable
  • Maximum Board Thickness: 6 In
  • Maximum Speed: 2000 RPM Rpm
  • Voltage: 120 V V
  • Bare Tool: No
  • Maximum Cut Depth @ 90 Deg.: 13
  • Cordless Vs. Corded: Corded
  • Bluetooth Compatibility: No
