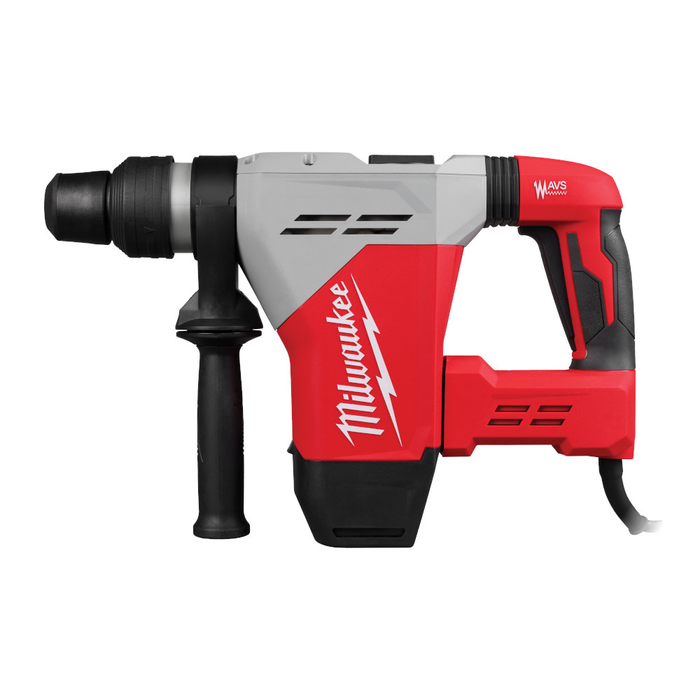

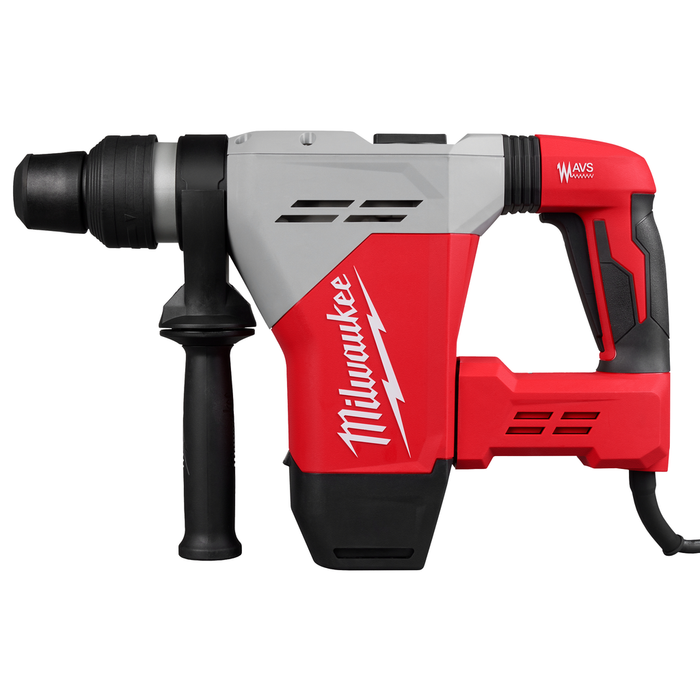

1-9/16" SDS Max Rotary Hammer

by Milwaukee Tool
SKU 5517-21
$519.00 - $519.00
$519.00
$519.00
$519.00 - $519.00
$519.00
In-Store Availability
Stock Status: Limited Stock (1-2?) Location: Not Specified
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
In-Store Only — Visit us in Gap, PA to purchase

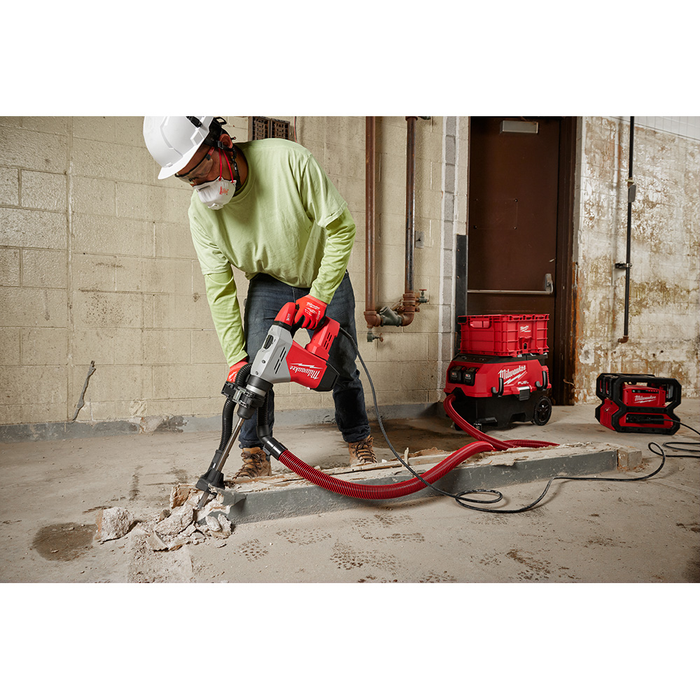

The MILWAUKEE® 1-9/16” SDS MAX Rotary Hammer is designed for all-day concrete drilling and chipping. The powerful 14A Motor delivers 5.6 ft-lbs of impact energy for demanding applications in any orientation. The AVS Anti-Vibration System is designed to reduce vibration, limit fatigue, and increase jobsite productivity. This corded rotary hammer offers maximum versatility with two-mode operation and 12-position chisel rotation, while a mechanical clutch provides protection in a bind-up. The 1-9/16” SDS MAX Rotary Hammer delivers the power needed to complete a variety of applications when power is readily available.

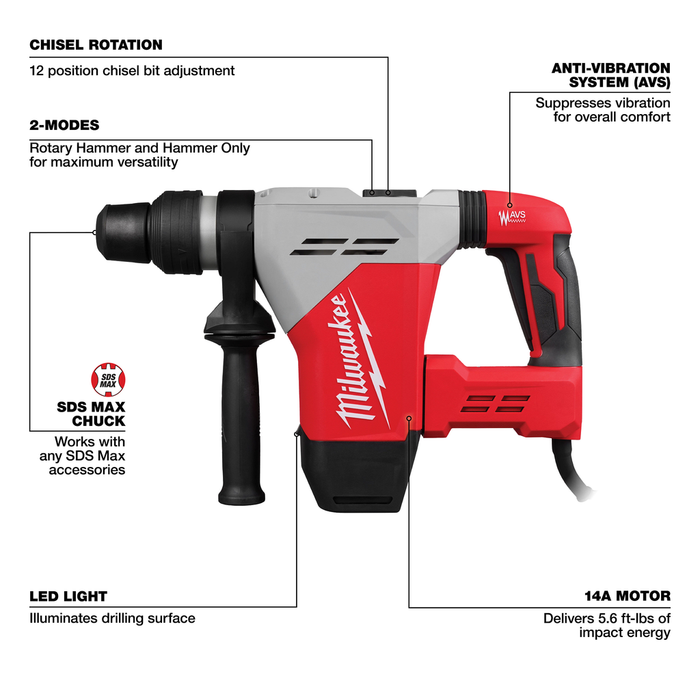

Features

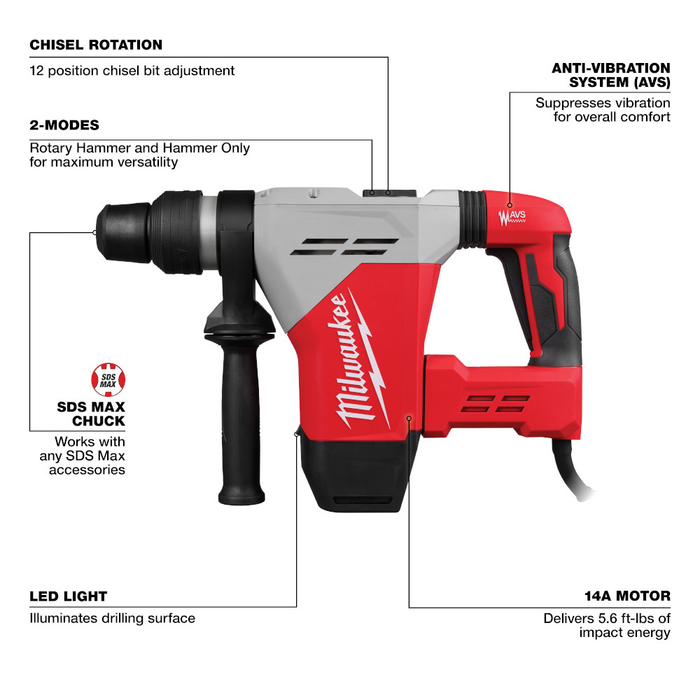

  • 12-position chisel adjustment allows the user to adjust the bit for operating versatility
  • AVS Anti-Vibration System minimizes handle vibration for maximum comfort
  • Powerful 14-amp motor delivers 5.6 ft-lbs (7.6 J) of impact energy 488 RPM, and 3,300 BPM
  • 5-year warranty
  • 2-mode operation for rotary hammer and hammer only
  • Mechanical clutch protects the tool in a bind-up
  • Soft start allows maximum control and accuracy at start-up
  • LED light illuminates drilling surface for increased visibility

Specifications

  • Motor Type: Brushed
  • Switch Type: Trigger
  • Dust Extractor Included: No
  • Voltage: 120
  • Rotary Hammer Size: 1-9/16 in
  • Power Source: Corded
  • Depth: 17.5 Inches
  • Chuck Size: 1-9/16 in
  • Peak Amps (A): 14
  • Cord Length: 16 ft
  • Blows Per Minute (bpm): 3300
  • Chuck Type: SDS Max
  • Handle Type: Drop Motor
  • Material: Metal
  • Country of Origin: China
  • Maximum RPM: 488

Downloads

    Warranty Document
