Dirt Conveyor Rental For Basements, Crawl Spaces

CVE21

Rental Item Details

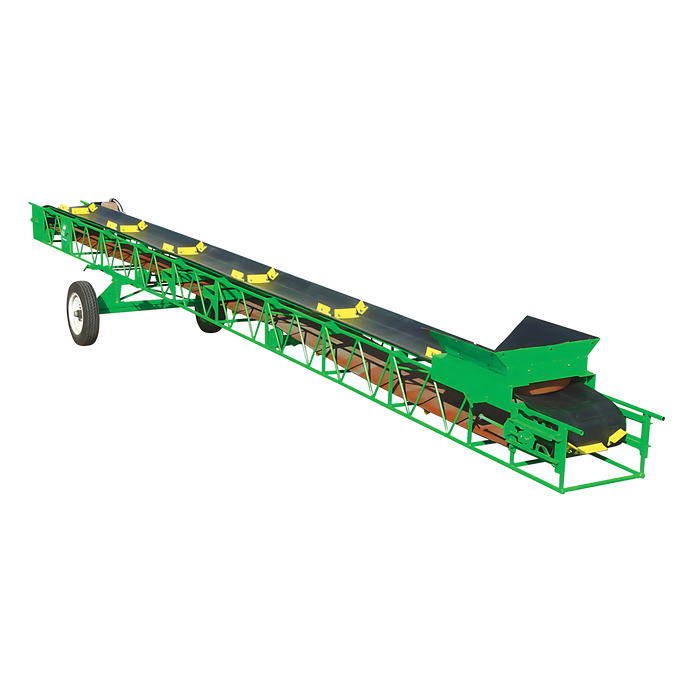

21' Towable Conveyor - Detachable Model 71.18-2 Multi-Lift
Frame Height Axle Removed 14.5"
Frame Width Axle Removed 27"
Belt Width 18"
Power Required 110V 20A (5000W Gen)
Tow Hitch 2" Ball
Weight 495 lbs
DELIVERY ESTIMATE GET RATE

Move loose materials such as dirt, gravel, debris, and much more

These Portable Dirt Conveyor Elevators are lightweight and compact. They fit into basement windows and cellars and are ideal for excavating dirt and rubble. Shown with the dolly, these Portable Dirt Conveyors can move loose materials like dirt, gravel, and debris at up to a 45 degree incline efficiently. Note that the dolly is typically removed with a few quick latches before using the conveyor. Then it will fit through many windows, down into basements and crawl spaces. The rubber belt has plastic paddles to move the dirt upward.

Features include:
• Heavy duty 2 ply rubber covered belt with
2” high cleats on 48” centers
• Combination slider/roller bed
• 7/8” O.D. high strength steel tubing
truss frame
• Approximate 120 FPM belt speed
• Conveyor belt take-up adjustments
• Self cleaning drive and idler belt pulleys
• Drive mounted at side of discharge end
• For electric motor – direct drive speed reducer
• For gas engine – internal V-belt and roller
chain reduction and safety guards
• Operating, maintenance, and
safety instructions


 Accessories:
• Electric motor
• Start/Stop switch for electric motor
• Hopper
• Fork pockets
• Dolly and hitch assembly
• Tail-light assembly
• Towable elevating carriage
Options:
• Smooth belt
• Belt wiper
• Mini-cleated belt
• Forward/Stop/Reverse switch for
electric motor
• Corrosion resistant PVC idler rollers
