"Up and Over" style aerial lift Tow behind a pickup with a 2-5/16" ball Includes 2 safety harnesses 71' worker reach

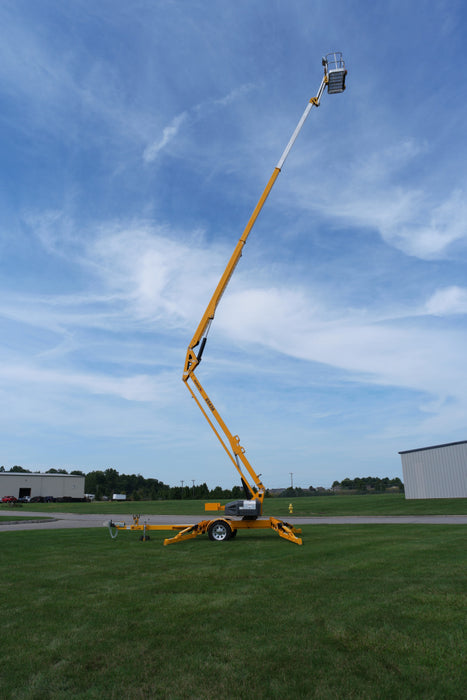

Introducing the new 6543A Articulated Aerial Work Platform. The trailer-mounted boom lift provides 71' of working height, 43' outreach, 24 'up and over height, and features an automatic, self-leveling hydraulic outrigger system that allows for setup in 30 seconds when all four outriggers are deployed simultaneously. The 6543A man lift can be operated from either the platform or ground control station. Both feature a display panel with control buttons that are logically positioned around a single machine image for easy identification of button functions. The platform capacity is 500 lbs.

NOTE regarding backing up with surge brakes on the 6543A:

There is a dump valve that is tied into the reverse lights on the vehicle. When the vehicle is in reverse all brake fluid will just be dumped back to the tank. If this is not working the customer will need to put the red stop bracket up, so that the surge brakes don't engage.

Sometimes referred to as a bucket truck, man lift, stick lift, straight lift, AWP (aerial work platform), high reach lift, spider leg aireal lift, MEWP (mobile work elevating platform), arial lift, tow behind person lift, towalift, trailer tow behind man lift, high reach lift, pull behind platform lift, pull behind electric lift, pull behind platform lift, cherry picker, hi lift, Biljax lift, or Haulotte lift.
