Mini Excavator Digger Rental, 3.5 Ton Takeuchi 11' Depth
Rental Item Details
| TAKEUCHITB235-2 | 7650lb. |
| Overall Width | 5'-4" |
| Overall Height | 8' |
| Max Dig Depth | 11'-2" |
| TAKEUCHI TB335 - reduced tail swing | 7970lb. |
| Overall Width | 5'-8.5" |
| Overall Height | 8'-3.2" |
| Max Dig Depth | 10'-6.2" |

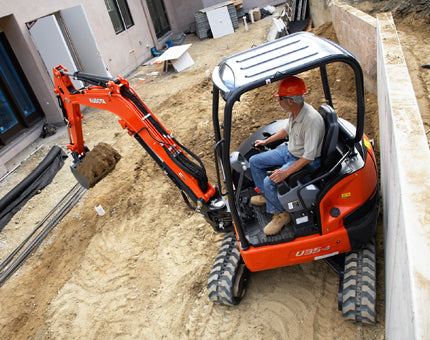

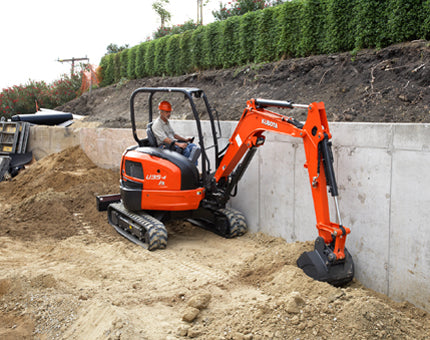

| KUBOTA U35 -reduced tail swing | 8129lb |
| Overall Width | 5'-6.9" |
| Overall Height | 8'-1.2" |
| Max Dig Depth | 9'-8.9" |
| KUBOTA KX033 | 7420lb |
| Overall Width | 5'-1" |
| Overall Height | 8'-1" |
| Max Dig Depth | 10'-6" |

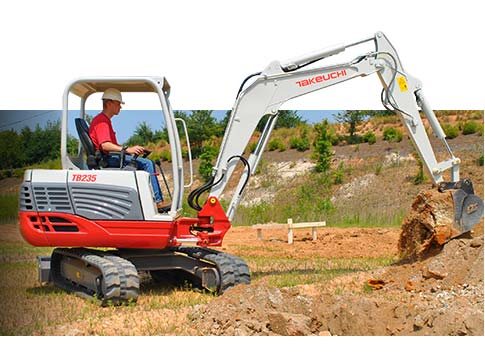

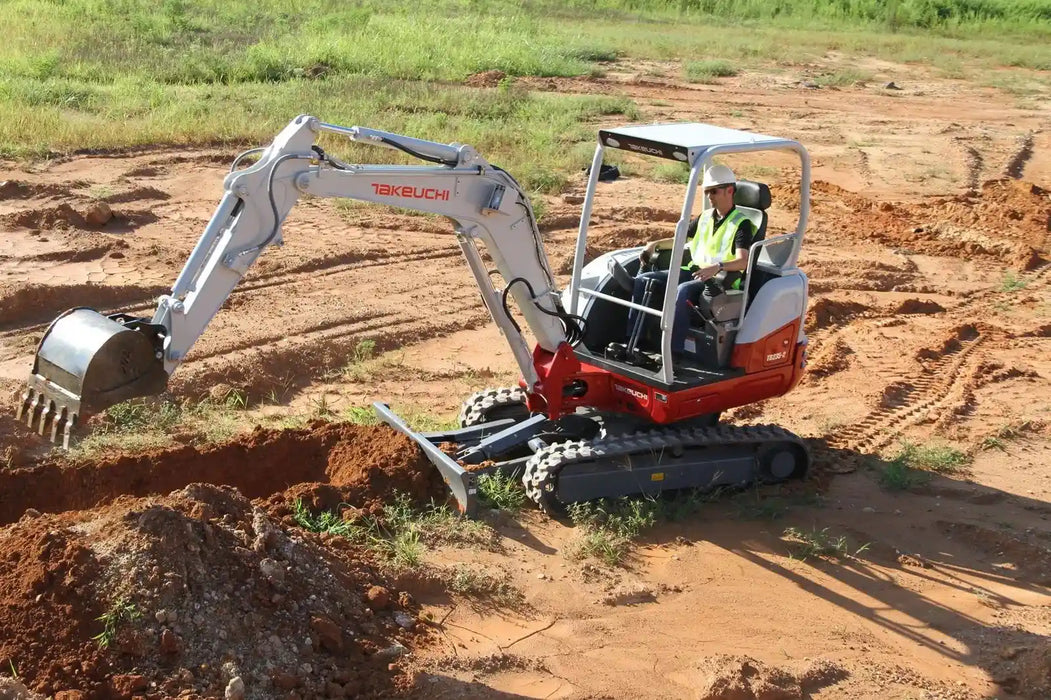

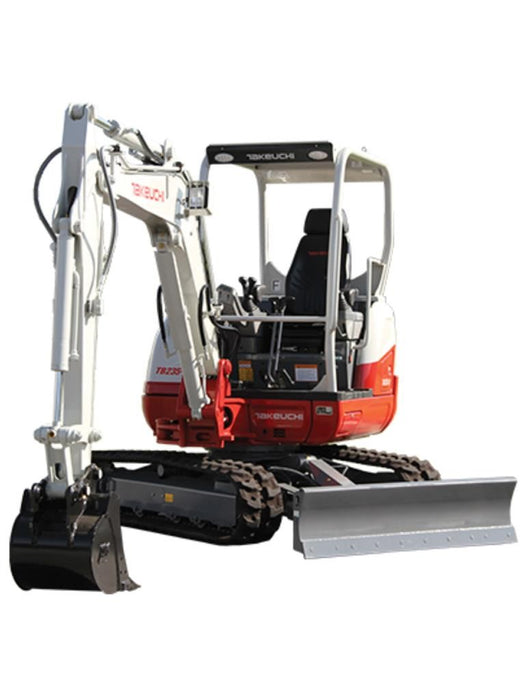

Spec Sheet Takeuchi TB235 ExcavatorThe specifications and features make Takeuchi TB235 excavators reliable to rent, comfortable to operate, and a performance leader on the job. You can even rent this excavator with a catalytic converter scrubber for reduced emission levels.
At 7600 pounds, the TB235 mini excavator is perfect for small jobs. It's dimensions are 5' 4" X 8' X 16' 7" (width X height X length) and it has a ground clearance of 11.6". The backfill blade's width and height is 5'4" and 16" respectively. It has an outstanding maximum dig depth of 11' 2", a dump height of 12' 6", and a maximum reach at ground level of 17' 6". The TB235 has a digging force of 8422 pounds. It is powered by a 2.8 HP Yanmar 3TNV88-QTB diesel engine. At a 65% load it will use one gallon of diesel per hour. The twin 14" tracks on the undercarriage of the TB235 has a traction force of 8,653 pounds and has a travel speed of 2.9 mph. It has a maximum gradeability of 30 degrees. Excavators are also known as a backhoe, a track hoe, 4 ton back hoe or a trackhoe or a 4 ton digger or escavator or track hoe 7000 minhoe or mini hoe or excuvator or Excvator or Excuzater 7K excavator.
