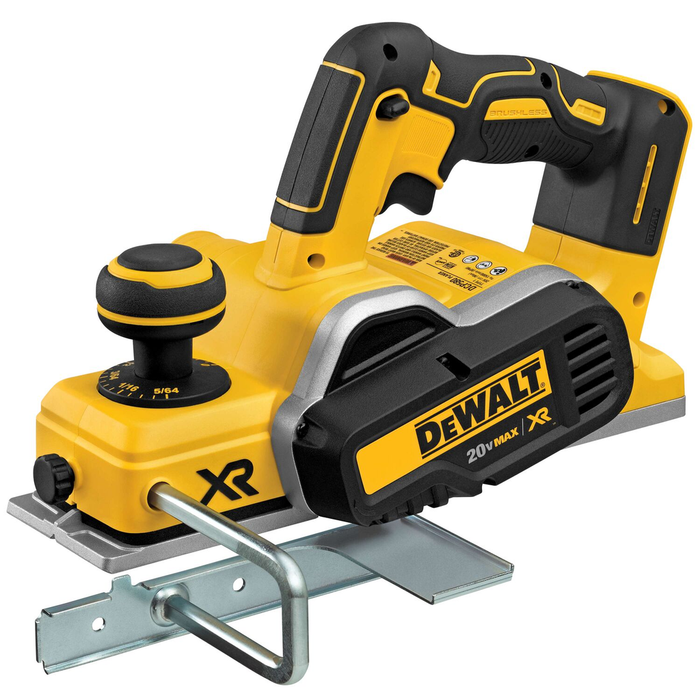

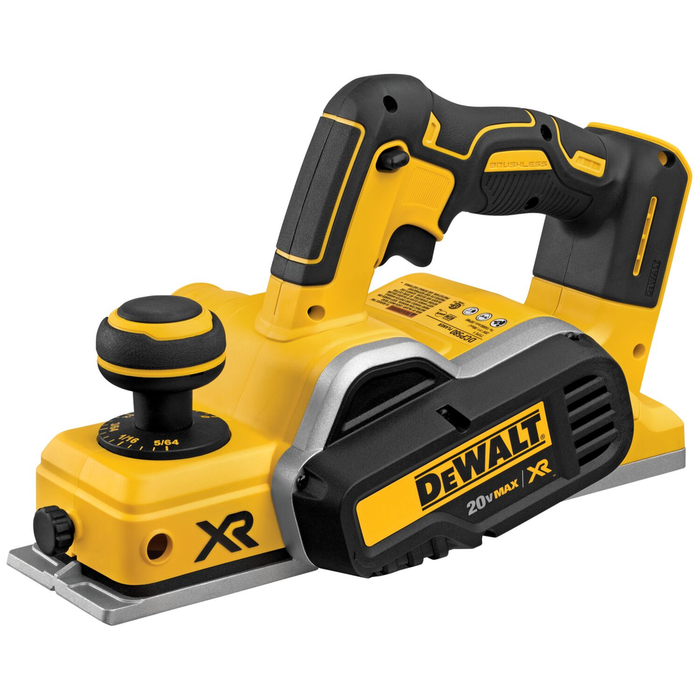

DEWALT 20V MAX* XR Brushless Cordless Planer (Tool Only)

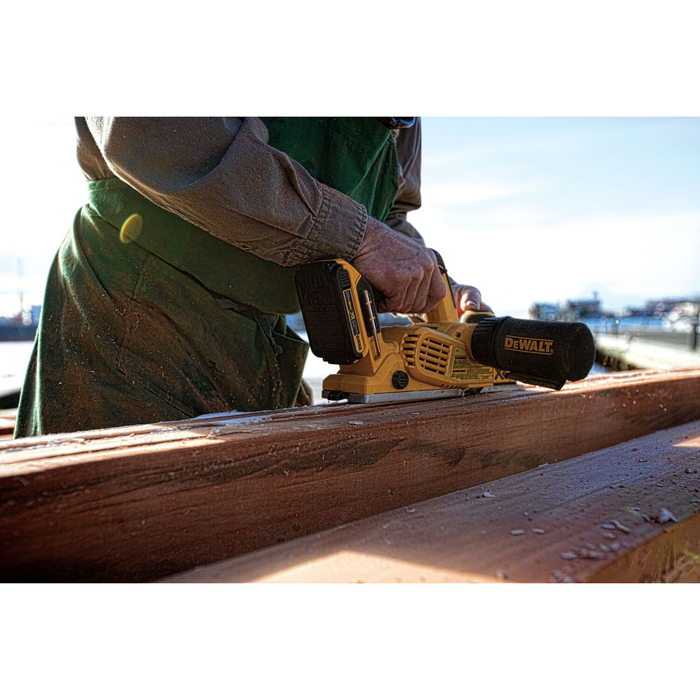

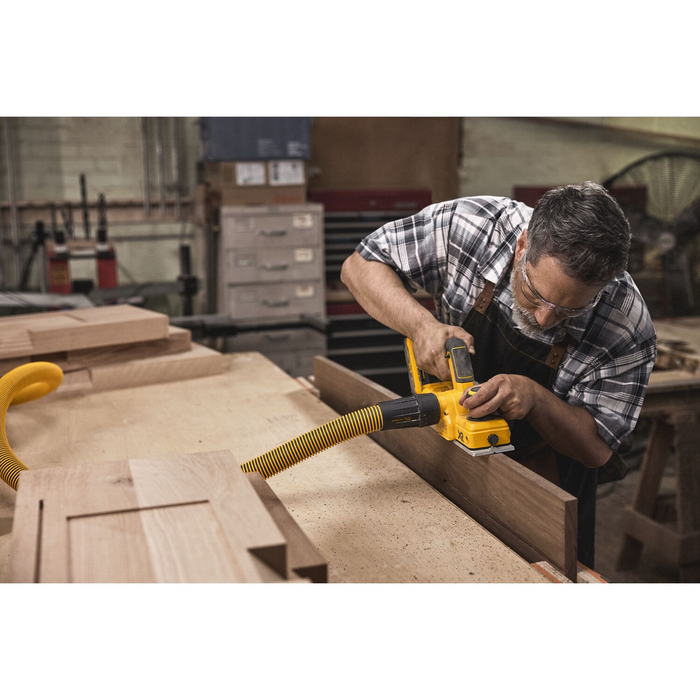

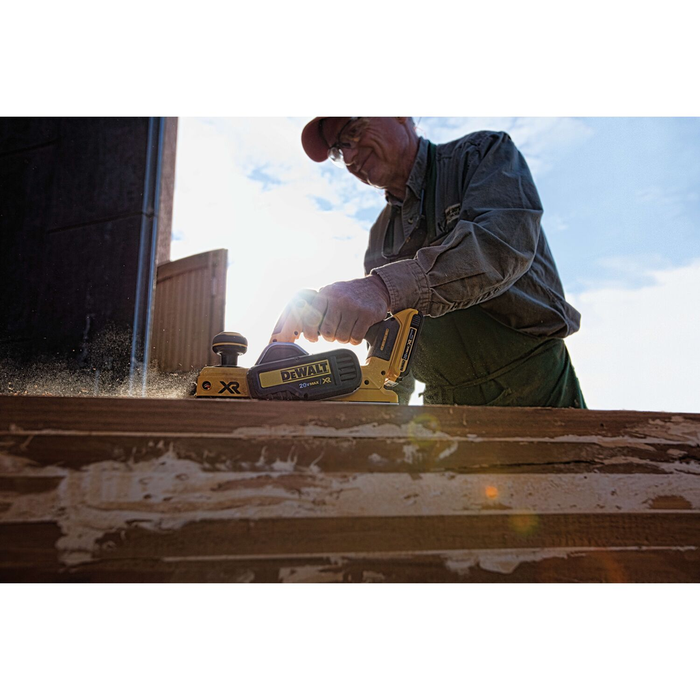

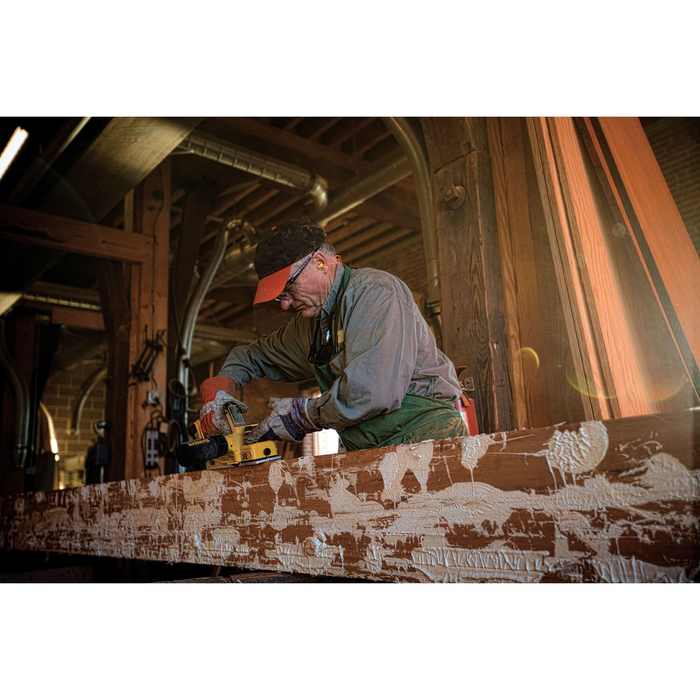

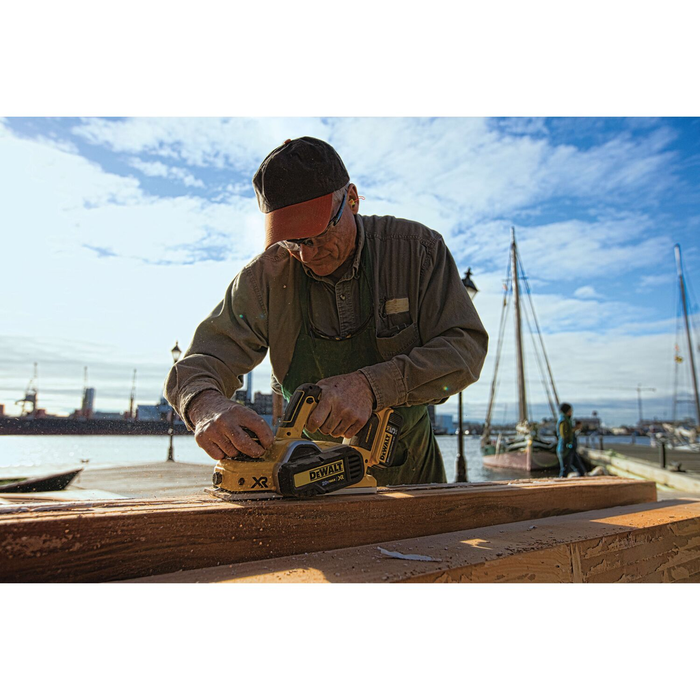

The DCP580B features a brushless motor for maximum efficiency that helps to maintain speed under load. The brushless planer features a 3-1/4 in width capacity and ability to adjust depth at 1/256 in adjustments with a rebate capacity of 5/64 in The planer weighs 6.8 lbs and operates on the DEWALT 20V MAX battery system. Lightweight and cordless, the planer can be easily transported around the jobsite without the hassle of a cord. Battery, charger and dust bag sold separately.

Prop 65

• Yes

Features

• 30,000 cuts per minute achieve a fast removal rate
• Brushless Motor provides power and runtime
• Poly-V drive belt provides increased belt durability
• Precision-machined front and back aluminum shoes ensure parallelism of cut
• Kickstand allows user to rest the planer on work surface without gouging the material

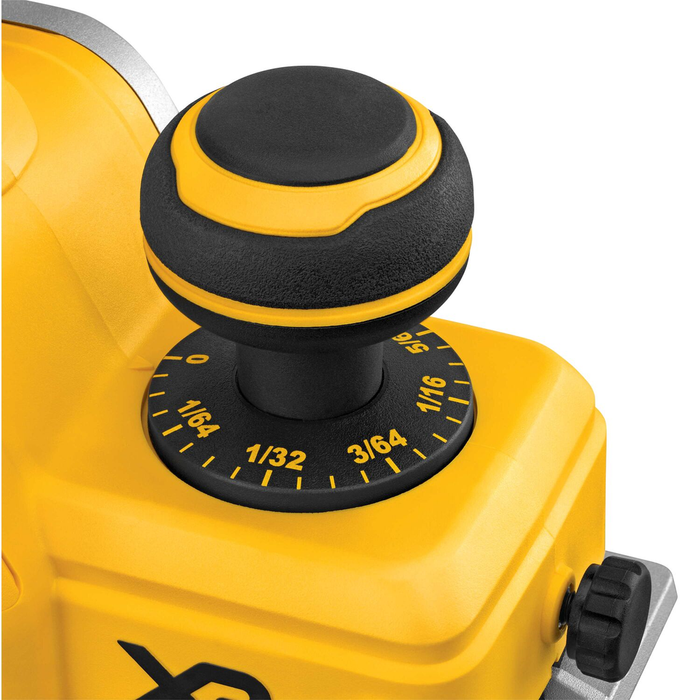

• Calibrated depth adjustment knob to 1/256 in. (0.01 mm. approximately)
• Replacement blades DW6654 Part Number: N447366
• Ergonomically designed handle provides greater comfort and less user fatigue
• 5/64 in. (2 mm.) maximum depth of cut

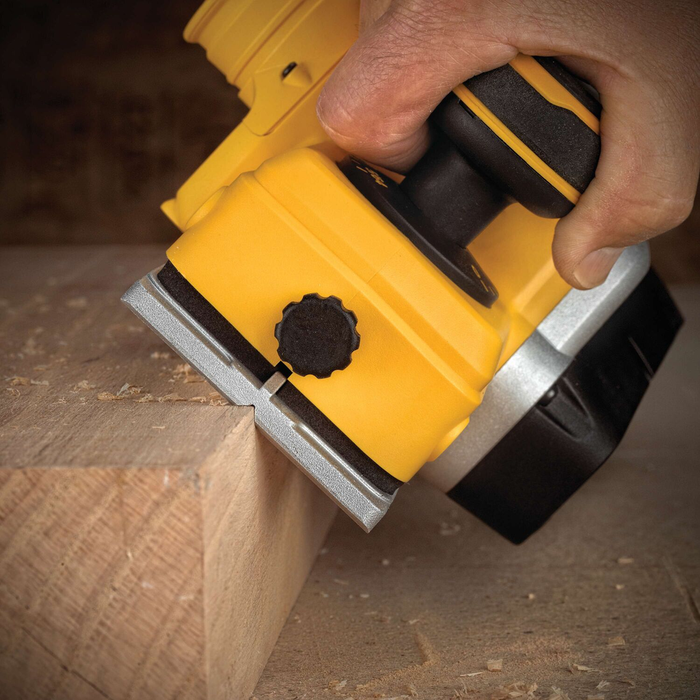

• Precision machined groove in front shoe allows for edge chamfering

Includes

• (1) Guide fence | (1) Wrench | (1) User guide

Disclaimer

• * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Specifications

• Product Material Group: WOOD
• Blade Qty: 2
• Voltage: 20 V V
• Shoe Length: 3.25 In
• Amperage: 0.0
• Motor Type: Brushless
• Depth: 0.078 In
• Length: 13.700 in
• Battery Included: No
• Battery Required: Yes
• Maximum Pressure Rating: 550 Psi
• Product Type: PLANER
• Weight: 7.800 lbs
• Width: 7.850 in
• Flow Rating: 1 Gpm
• Case Type: N/A (no case)
• Country of Origin: China
• Cordless Vs. Corded: Cordless
• Bare Tool: Yes
• Battery Type: 20V MAX Lithium Ion
• Maximum Speed: 15000 RPM Rpm
• Number Of Batteries Required: 1
• Height: 8.900 in
• Cutting Width: 3.25 In
• Uncertainty K1 (Vibration): 2
• Charger Included: No
• Housing Material: Plastic
• Power Input: 1400 W
• Warranty: 3LW1YS90D
