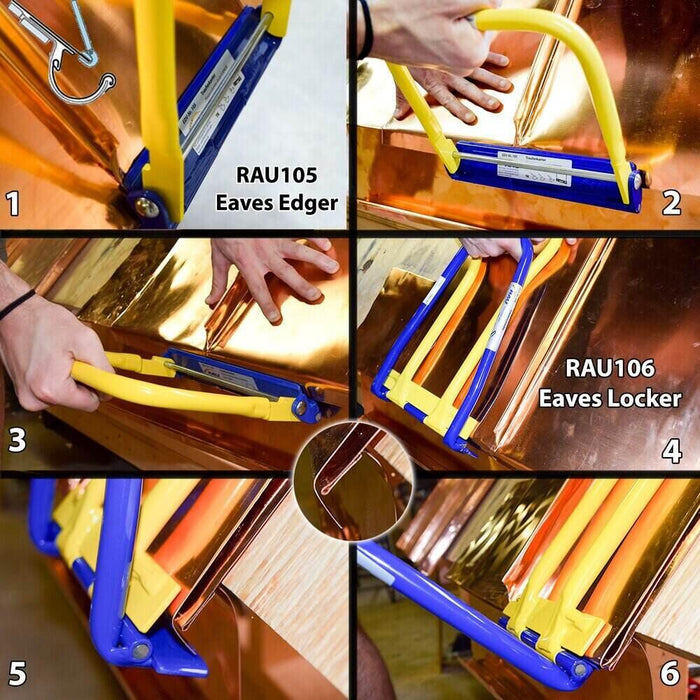

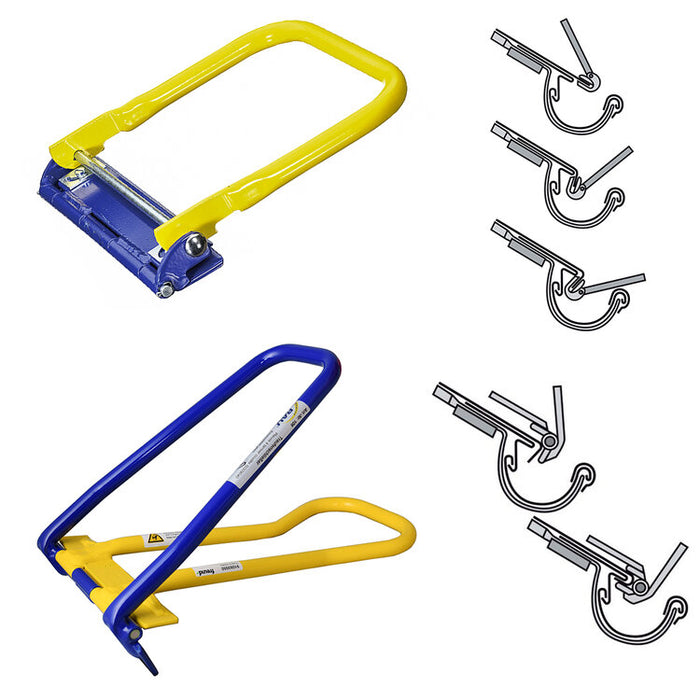

Standing Seam metal roof eave bending and crimping is done with two tools, the Eaves Edger Folder and then the Eaves Seam Locker/Crimper RAU 105 Eaves Edger Spring loaded leveraged action grips material for starting the panels bend around a drip edge Jaw Width: 9-3/4" RAU 106 Eaves Locker Used for locking the panel onto the drip edge after the bend has been started with the RAU 105 Edger Crimps the panel for a tight lock and desirable finish Jaw Width: 8-1/2"

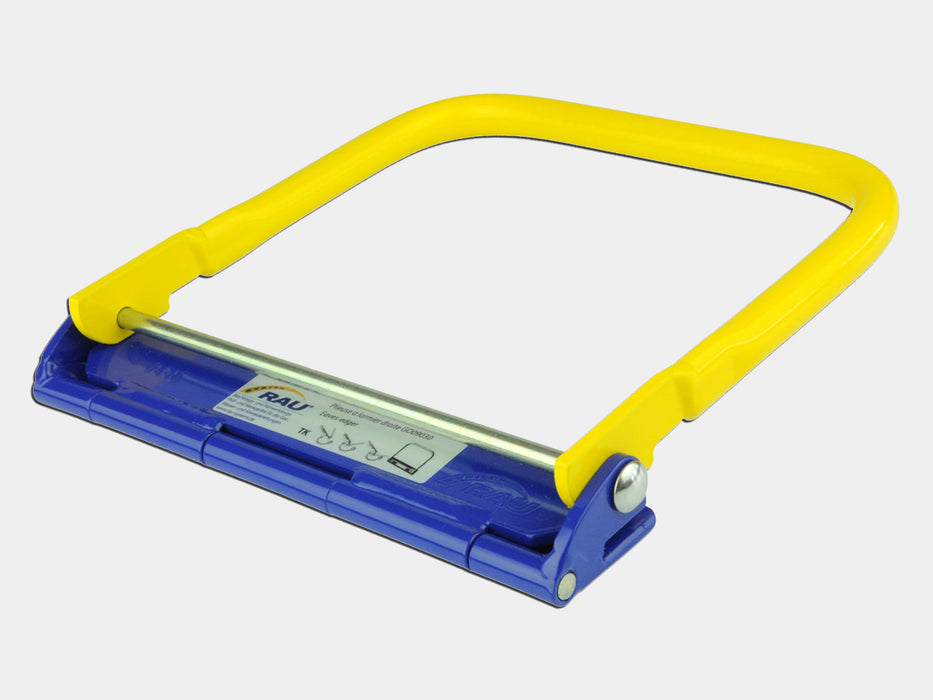

The RAU105 Spring loaded leveraged action provides added strength in gripping the material

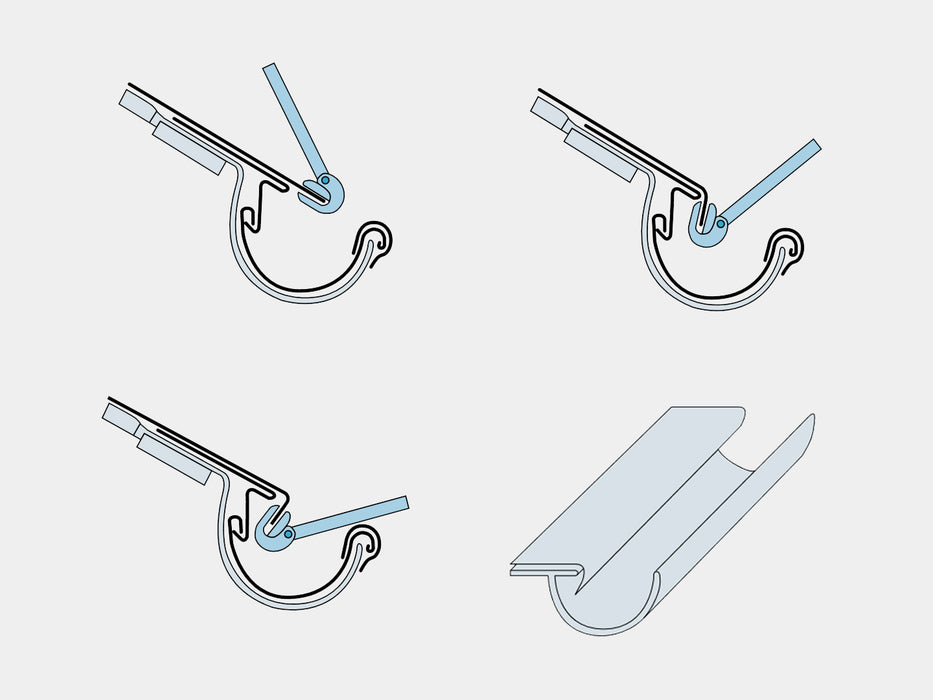

Starts bending the drip edge in excess of 90°

Also used for the first step in bending panels for dormer windows

Tool Width – 9 3/4"

1” insertion depth

Overall Length – 9 1/2”

Max thickness – 24 gauge, .040 aluminum, 20oz copper

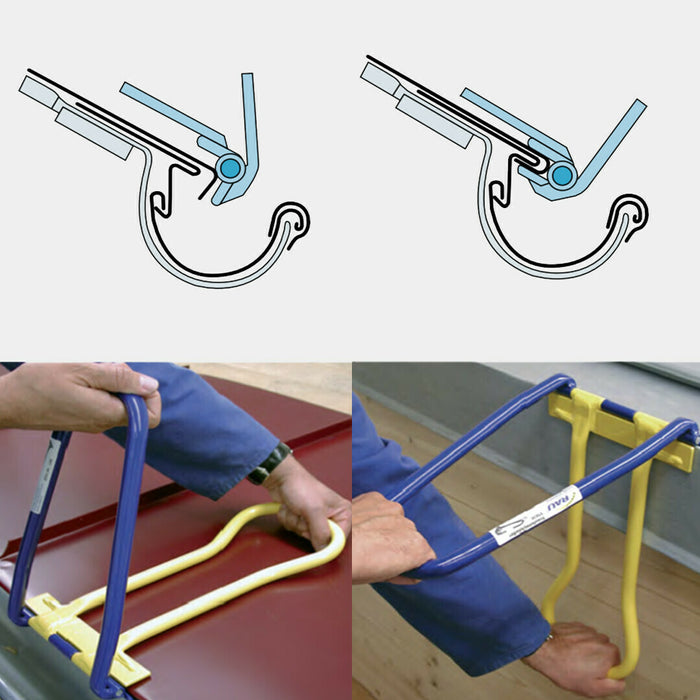

The RAU106 is used to lock the panel at the drip edge resulting in a clean looking hemmed panel edge

The tool is often used in conjunction with the RAU105 to complete locking the panel at the drip edge

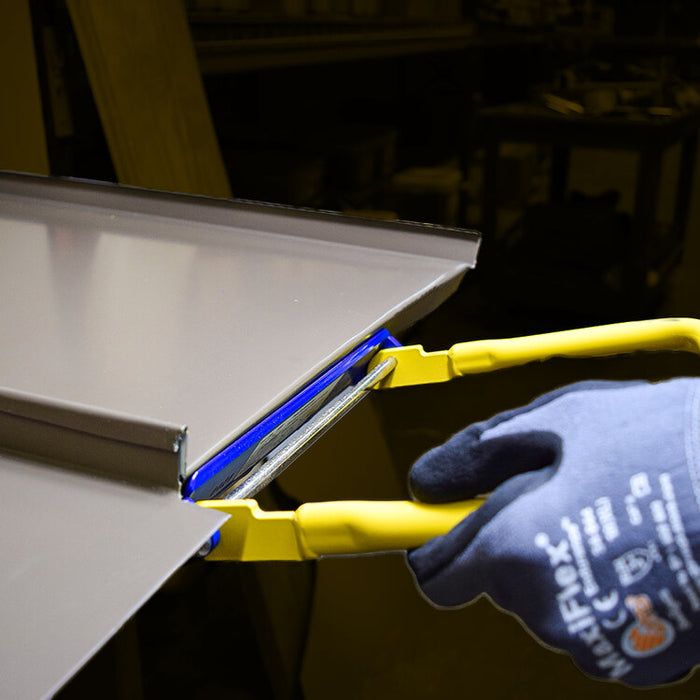

Panel edge must be bent approx. 90° for RAU106 to perform crimp

Also used for forming the final lock for dormer windows

Faster and a tighter crimp than hand seamers

Tool Width – 8 1/2”

Overall Length – 15”
