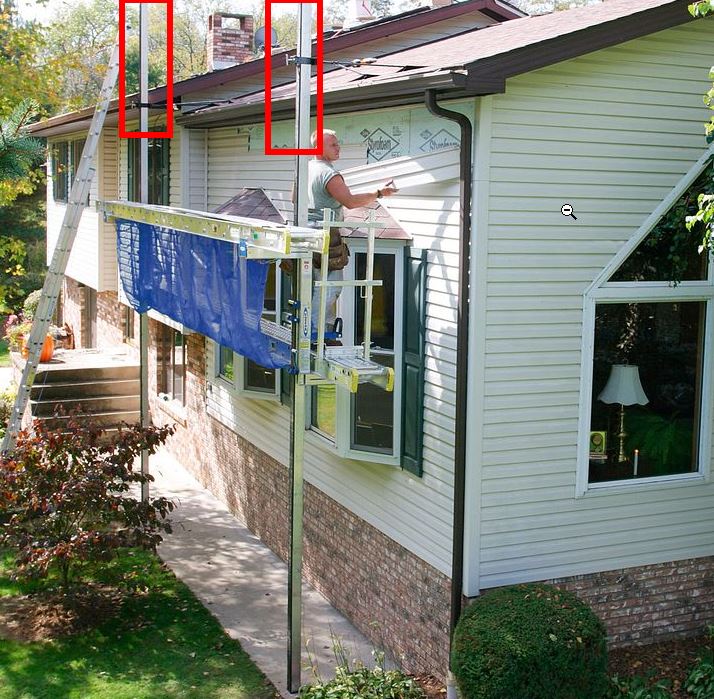

Used to extend 18ft or 24ft Poles. Used in conjunction with PJCONNECT
PUMP JACK POLE CONNECTOR SAFETY INFO:
According to Werner, pump jacks must meet the following requirements:
Maximum distance of 16' between Pump Jack Pole Connectors
Maximum distance of 18" between bottom of pole to Pump Jack Pole Connecter
Maximum distance of 18" between top of pole to Pump Jack Pole Connecter
PROCEDURE FOR PASSING INTERMEDIATE BRACE ON POLE JACK:
FAQ
When should I rent a 6ft pump jack pole extension?+
This is commonly used for: extending 18-foot or 24-foot pump jack poles for multi-story residential siding; reaching high gable peaks and dormers; painting tall exterior sidewalls; installing seamless gutters, soffit, and fascia on two-story homes. It gives you extra vertical elevation without transporting excessively long single poles. For jobs requiring heavy masonry loading or wide ground-level access, modular frame scaffolding or a mobile boom lift is generally a better choice.
Can this 6-foot pole section be used alone, and what hardware is needed to connect it?+
No, this 6-foot section is designed strictly as an add-on extension and cannot be used as a standalone pole. It must be coupled to an 18-foot or 24-foot base pole using a dedicated pump jack pole connector (PJCONNECT). A complete operating setup also requires pump jack climbing mechanisms, workbench arms, aluminum walk planks, rigid wall braces, and base plates or mudsills.
What are the spacing and bracing safety requirements for pump jack poles?+
Per manufacturer guidelines, pump jack poles must be braced securely into solid building framing with a maximum span of 16 feet between braces. In addition, the distance between the pole ends and the nearest connector or brace must not exceed 18 inches at either the top or the bottom. Proper bracing prevents pole deflection and sway while workers and materials are on the staging platform.
How do you safely move a pump jack past an intermediate wall brace?+
To pass an intermediate brace while raising or lowering the stage, install an extra temporary brace above or below the platform before unfastening the obstruction. Once the pump jack mechanism clears the bracket location, reattach the permanent brace securely before removing the temporary brace. A pole must never be left unsupported while loaded.
How do I transport this 6-foot pole extension?+
At 6 feet long, this extension easily fits inside a standard pickup truck bed, an SUV with folding rear seats, or an enclosed van. However, if you are also renting the 18-foot or 24-foot base poles and aluminum walk planks needed to complete the system, you will need a properly rated truck ladder rack, an extended trailer, or jobsite delivery from Gap Power.
How many pole extensions and accessories do I need to plan for my project?+
Plan your setup based on wall length and eave height. A standard two-pole pump jack staging run supports an aluminum platform spanning between two uprights, meaning you need two base poles, two 6-foot extensions, two connectors (PJCONNECT), two pump jacks, and enough wall braces to maintain maximum 16-foot vertical intervals on each pole. For longer walls, additional poles and planks are added to create continuous staging.
