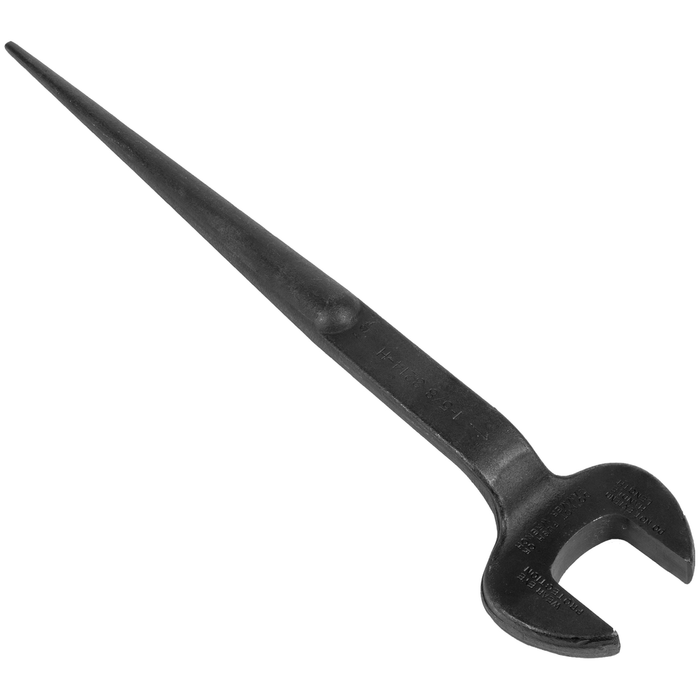

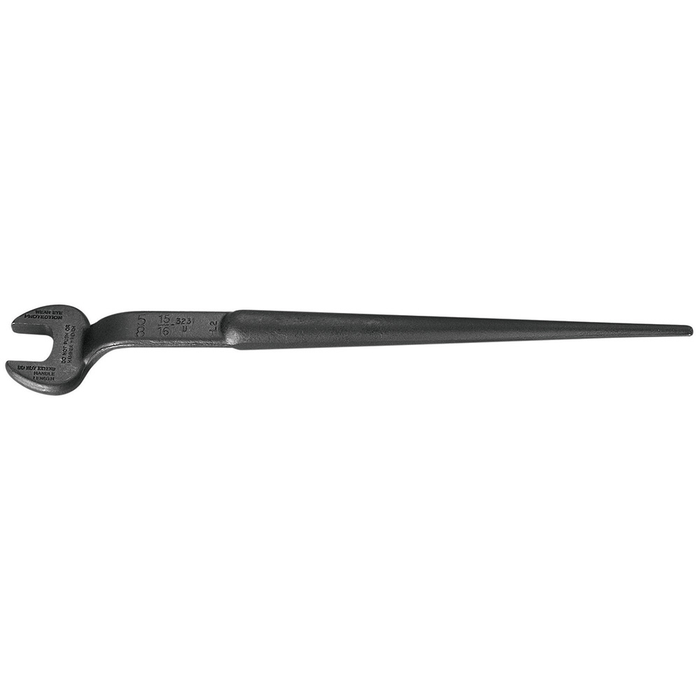

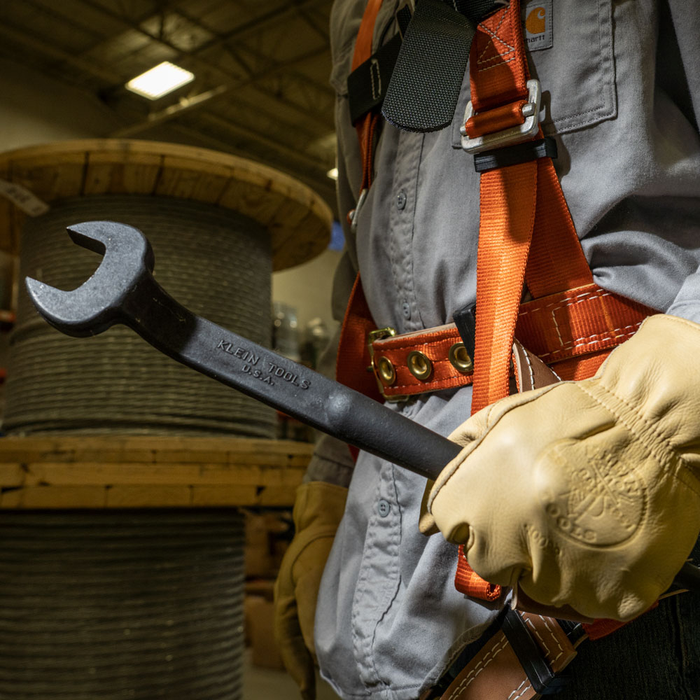

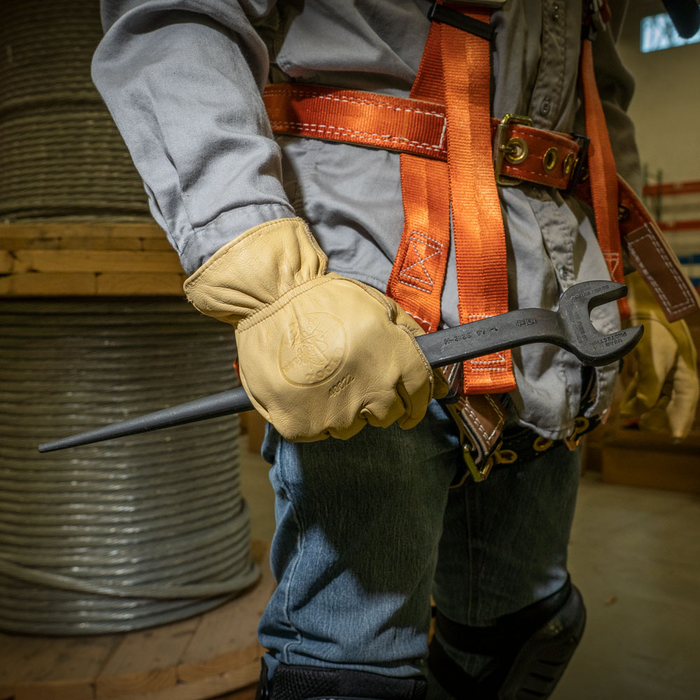

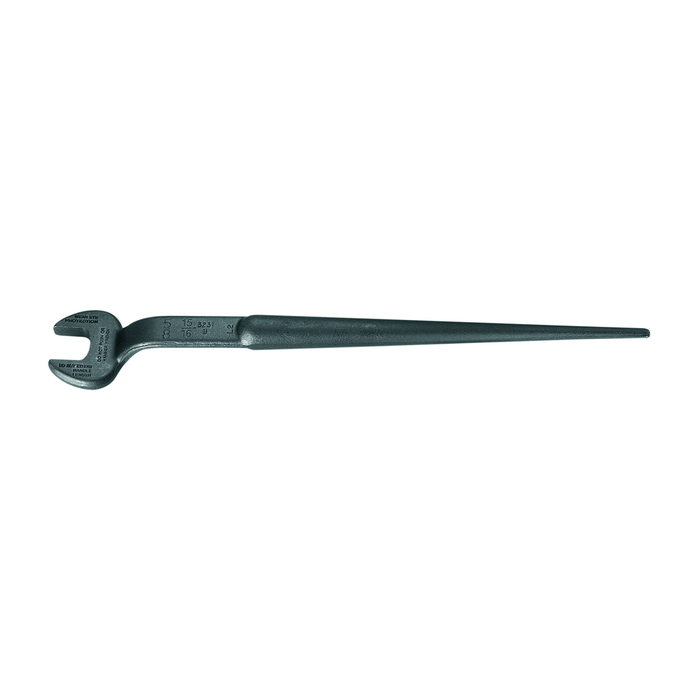

Spud Wrench, 1-5/8-Inch Nominal Opening for Heavy Nut

Forged from select alloy steel, the Klein Tools 1-5/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

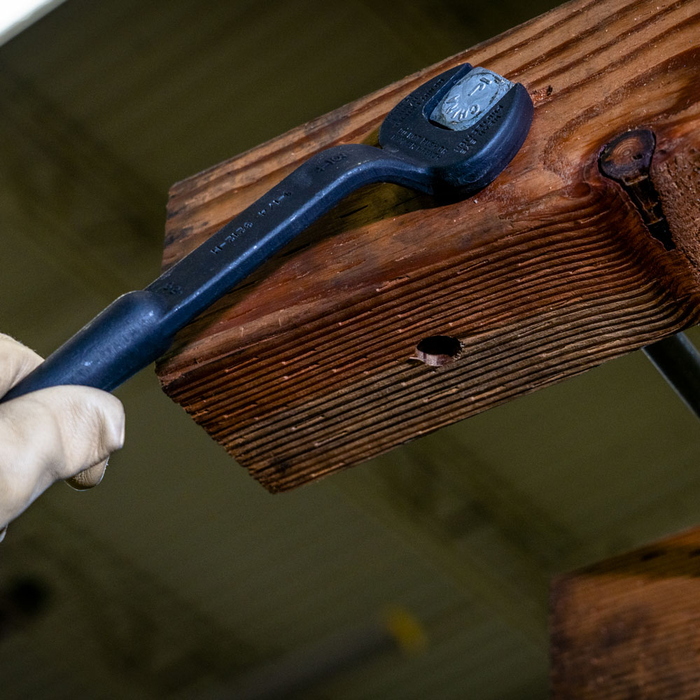

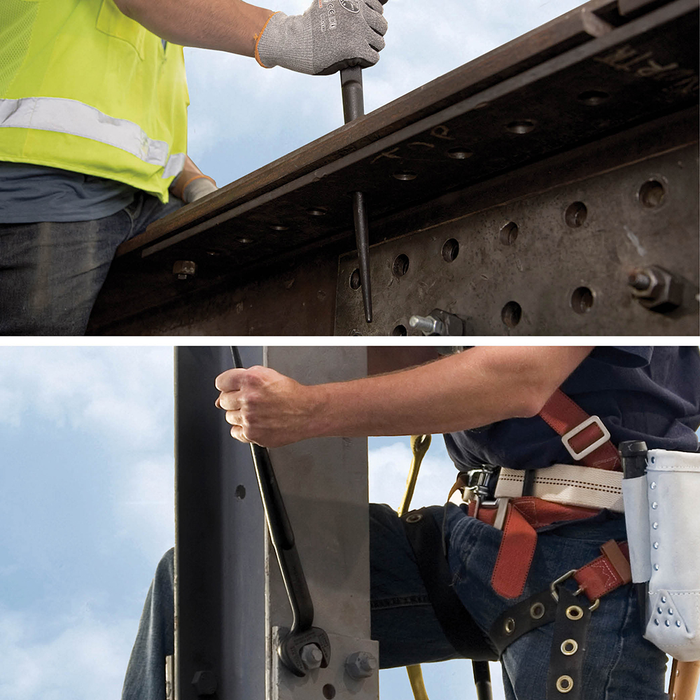

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding

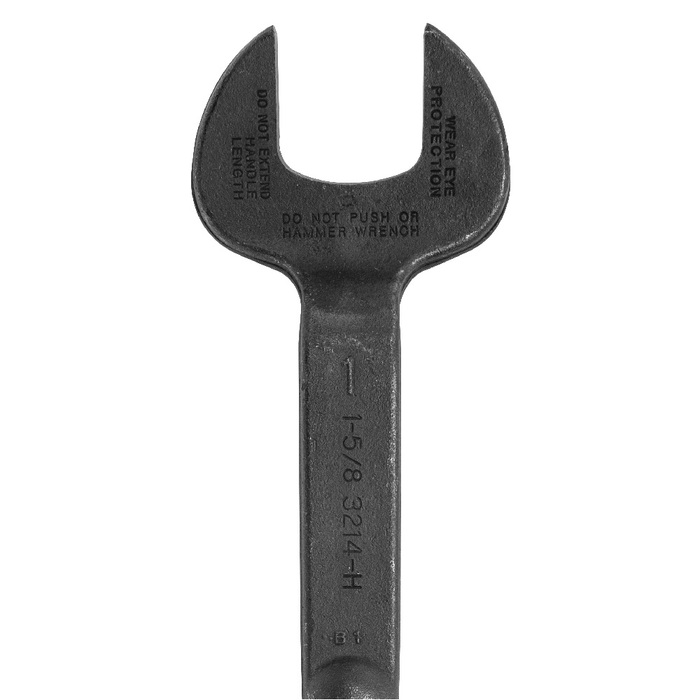

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Extra heavy-duty head area gives maximum strength and durability
• Forged from select alloy steel to withstand high-leverage and heavy loads
• Extra Heavy-Duty Head for Maximum Strength
• American Bridge design
• Extra-large hub area works on larger diameter holes better than other wrenches

Warnings

• Always wear approved eye protection.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.

Specifications

• Bolt Size: 1" (2.5 cm)
• Configuration: 1-1/8 to 1/4-Inch Taper
• Overall Width: 3.6" (9.1 cm)
• Material: Alloy Steel
• Overall Height: 1" (2.54 cm)
• Head Width: 3.625" (9.2 cm)

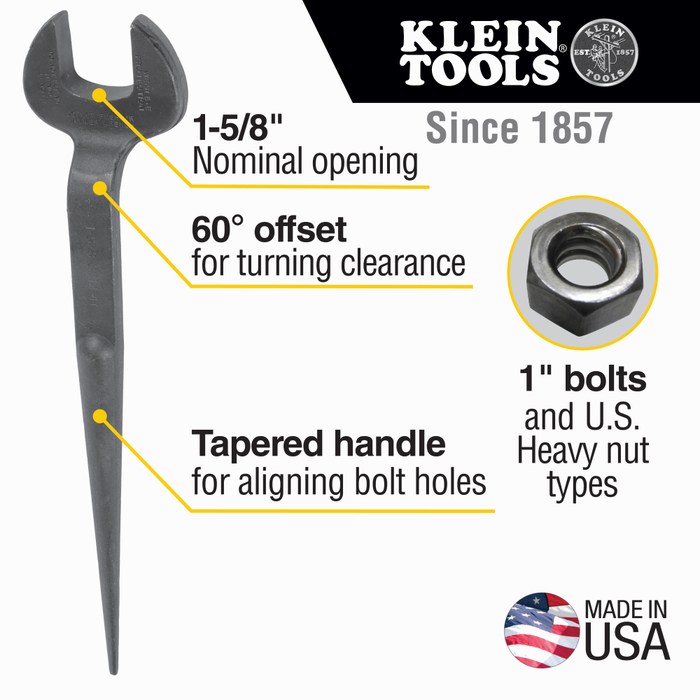

• Offset Angle: 60°
• Nominal Opening: 1-5/8" (4.1 cm)
• Nut Type: U.S. Heavy
• Application: Connecting Steel Members
• Taper Diameter: 1-1/8" to 1/4" (2.9 to 0.6 cm)
• Heavy Nut Size: 1" (2.5 cm)
• Height: 1.0000 in
• Country of Origin: United States
• Style Name: Standard
• Width: 3.6250 in
• Size Name: 1-Inch
• Weight: 3.3600 lbs

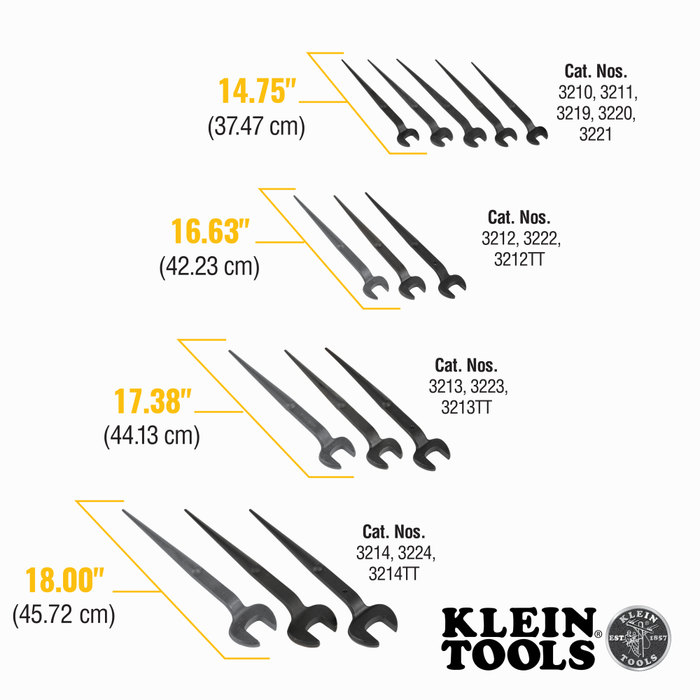

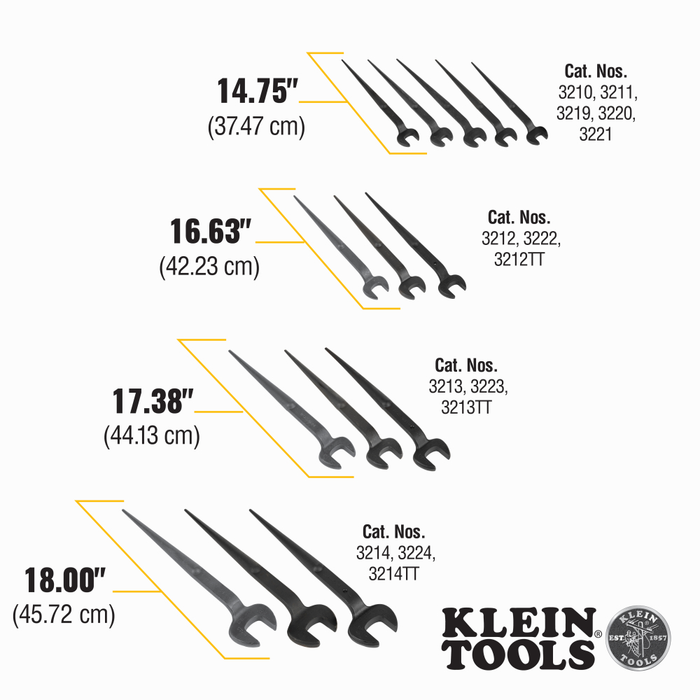

• Overall Length: 18" (45.7 cm)
• Type: Spud Wrench
• Finish: Black Oxide with a Rust Preventative
• Depth: 18.0000 in
