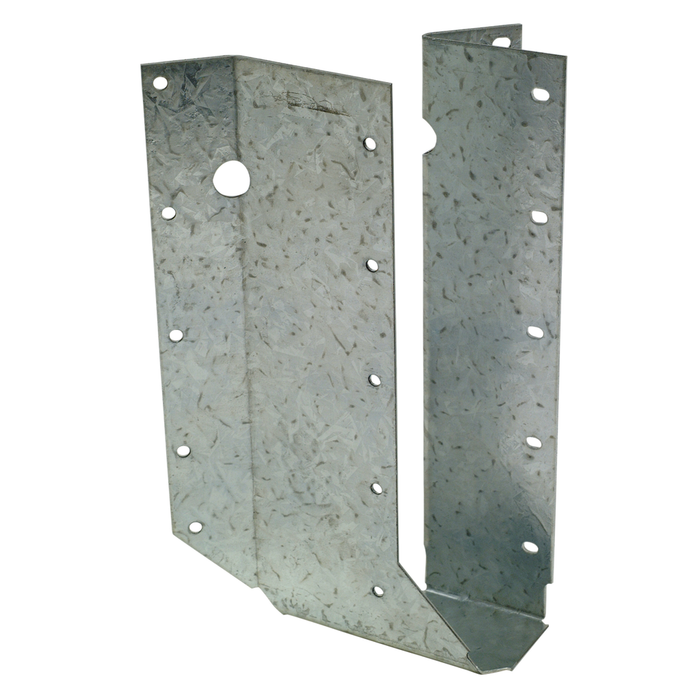

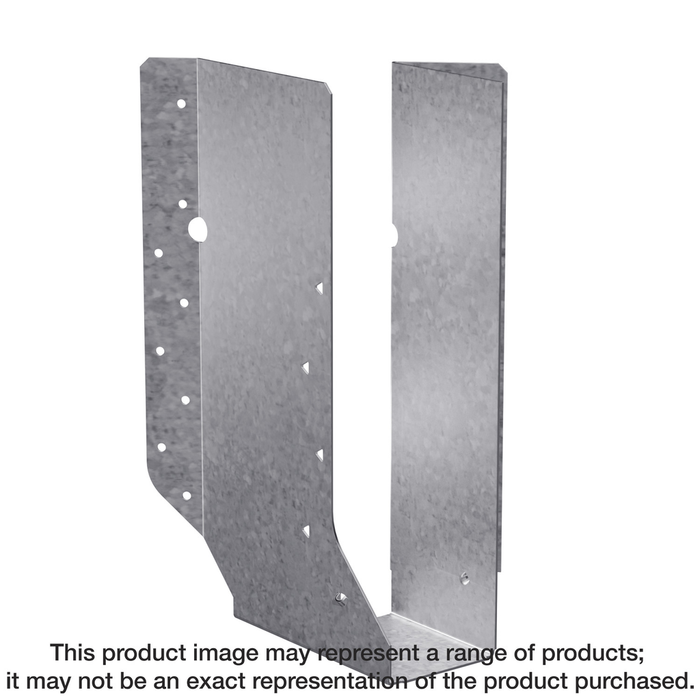

Simpson Strong-Tie SUR210Z SUR ZMAX® Galvanized Joist Hanger for 2x10, Skewed Right

by Simpson Strong-Tie
SKU SUR210Z
Sold out
$19.38 - $19.38
$19.38
$19.38
$19.38 - $19.38
$19.38
In-Store Availability
Stock Status: Limited Stock (1-2?) Location: Not Specified
Get Directions 5270 Newport Rd, Gap PA Call Us (717) 442-8970
In-Store Only — Visit us in Gap, PA to purchase

The SUR/L are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

Features

  • Made from 16-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
  • SUR = skewed right
  • These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
  • Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)

Specifications

  • Country of Origin: United States
  • Nominal joist size: 2x10 or 2x12
  • Depth: 4.98227 in
