Slope Laser
Rental Item Details

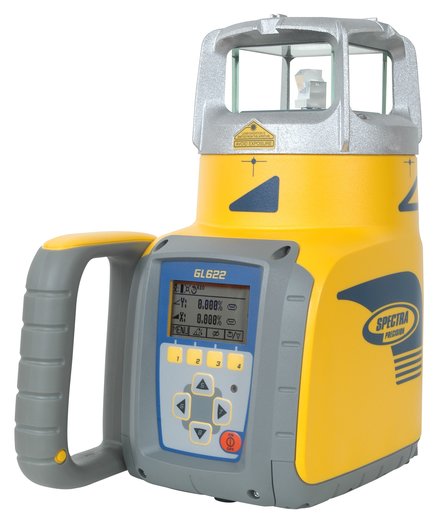

Sloping Site Laser w Tripod & Grade Rod | Model GL622 Trimble |
Grade Capacity | +/-25% grade |
Beam Range | 2,600 ft diameter |
Leveling accuracy | ± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds |
Grade accuracy | ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds |
DELIVERY ESTIMATE | GET RATE |
Manuals

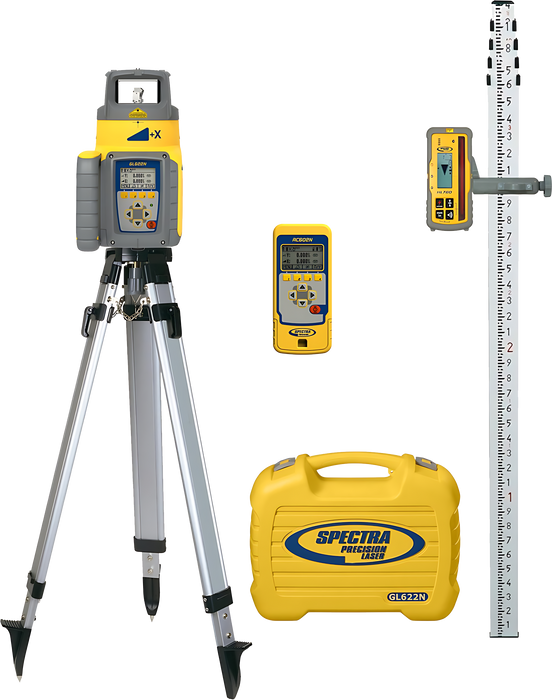

Applications: - Leveling concrete forms and footers - General construction... and many others Determine Slope: Rise/Run x 100 = slope percentage Includes: Grade pole, tripod, and receiver
This automatic self-leveling line laser does three jobs - level, grade and vertically align with plumb. It sends a continuous, self-leveled 360-degree laser reference over your entire work area, and has a wide grade range so it can be used in a variety of slope applications. Very long operating range of 800 m (2,600 ft) for the laser increases machine control capability and reduces setups over the jobsite.
Applications: - Leveling concrete forms and footers - General construction - General construction vertical alignment and plumb such as anchor bolt and form alignment - Grading and excavating - Concrete sections with runoff for sports fields, tennis courts and driveways - Steep slope road embankments and ditch banks - Parking garages, ramps and drainage. Sometimes referred to as a transit lazer or Rotary transit line lazer
