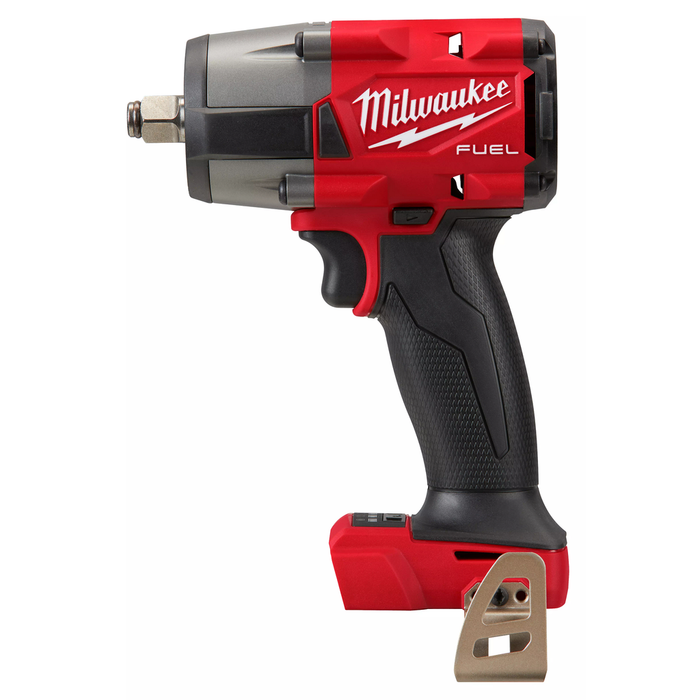

M18 FUEL™ 1/2" Mid-Torque Impact Wrench w/ Friction Ring

The MILWAUKEE® M18 FUEL™ " Mid-Torque Impact Wrench w/ Friction Ring delivers the best power to weight ratio, most access in tight spaces, and faster removal speed. It provides 600 ft-lbs of nut-busting torque and only weighs 5.0 lbs, making it extremely versatile, capable of performing a wide variety of applications. Its POWERSTATE™ Brushless Motor generates the power needed to quickly perform many tasks, such as removing large bolts or lug nuts. This battery-powered impact wrench is the most compact in its class, allowing access to stubborn fasteners in spaces where larger impact wrenches can’t fit without needing to disassemble components to reach bolts. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence ensures maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.

Features

• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 35 ft-lbs. of torque.
• 6.0" in length provides most access in tight spaces
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• Compatible with all M18™ Batteries & Chargers
• Best power to weight ratio is offered as the tool provides 650 ft-lbs. of nut-busting torque at only 5.1 lbs. with a 5.0Ah battery.
• Faster removal speed provides increased user productivity
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
• Works in up to to 69kV environments
• Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.

Specifications

• Power Tool Branding: FUEL™
• Battery System: M18™
• Weight - Battery Installed (lb): 5.1
• DRIVE CONTROL: 4-Mode w/ Bolt Removal Mode
• Anvil Type: Friction Ring
• Chuck Type: Not Applicable
• Maximum Torque (ft-lbs): 650
• Impacts Per Minute Range (IPM): 0 - 3,100
• Motor Type: POWERSTATE™ Brushless
• Voltage: 18
• Country of Origin: Vietnam
• Maximum RPM: 2575
• FUEL: Yes
• Depth: 6.85 Inches
• Number of Batteries Required: 1
• Material: Aluminum
• Brushless Motor: Yes
• Power Source: Cordless
• ONE-KEY Enabled: No
• Weight Excluding Battery (lb): 3.9
• Battery Charger Input Voltage: 18
• Color Finish: Black;Red
• Rotations Per Minute Range (RPM): 0 - 2,575
• Chuck Size: Not Applicable in
• Badge Branding: FUEL™
• Drive Size: 1/2" Square
• Anvil Size: 1/2 in
• Fastening Torque: 550
• Wrench Type: High Torque
