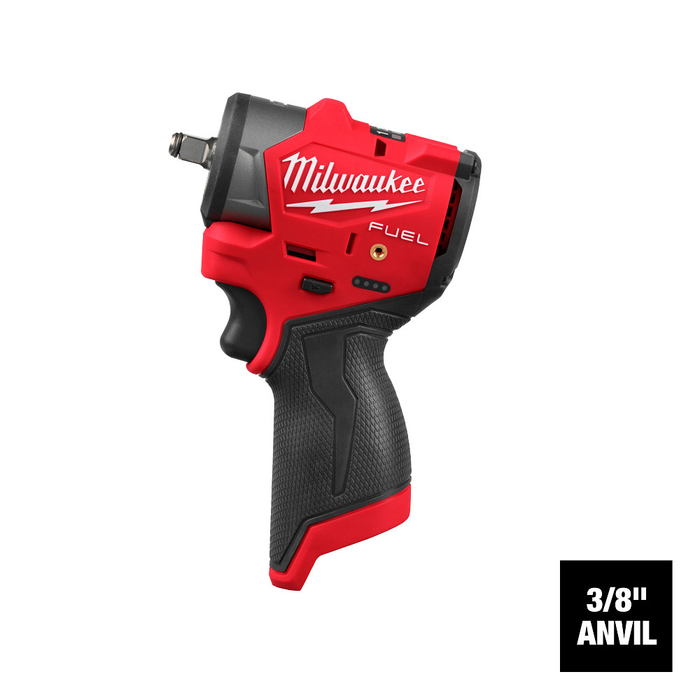

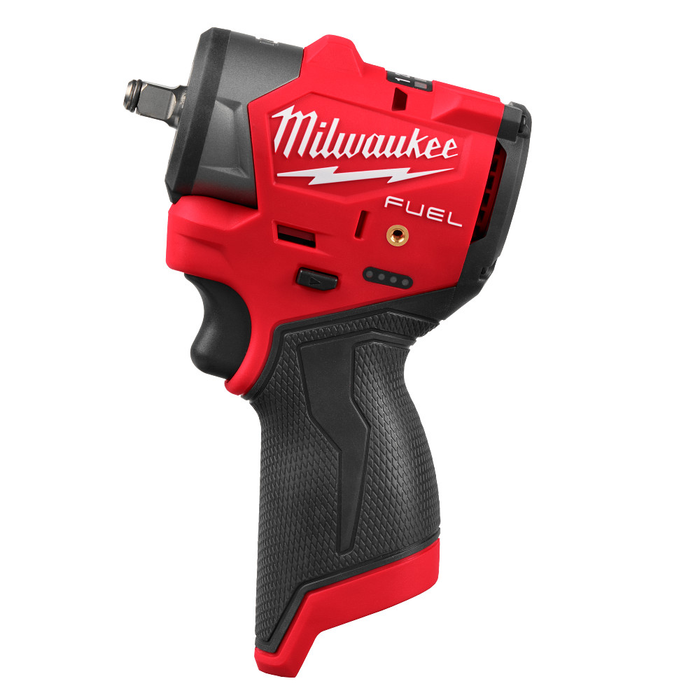

M12 FUEL™ 3/8" Subcompact Impact Wrench w/ Friction Ring

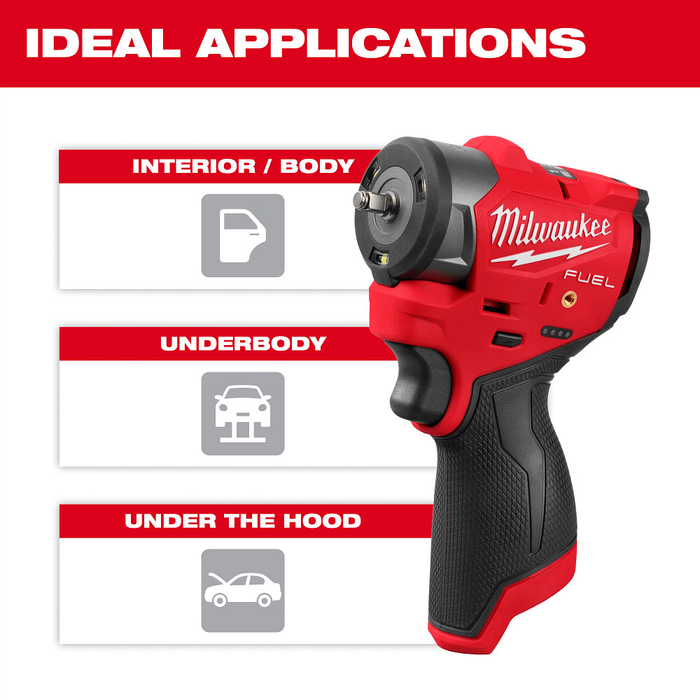

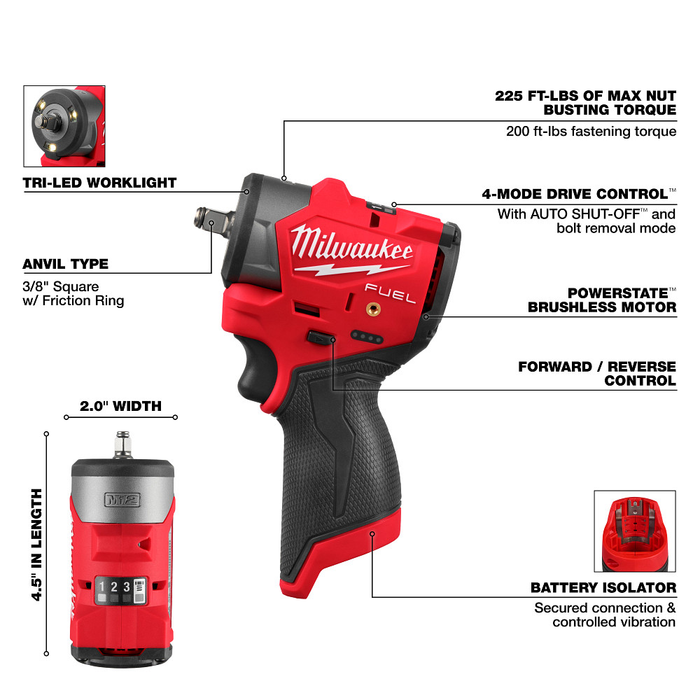

The MILWAUKEE® M12 FUEL™ 3/8” Subcompact Impact Wrench with Friction Ring delivers the Best Underhood Access for all automotive applications. Measuring 4.5” in length and 2.0” in width, this Subcompact Impact Wrench fits into the tightest spots, minimizing the time spent on removing additional components under the hood. The M12 FUEL™ Subcompact Impact Wrench delivers up to 225 ft-lbs of nut-busting torque when paired with our M12™ REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery Pack while providing up to 30% faster application speeds, maximizing productivity in the shop. This solution excels in both performance and size. Weighing only 1.6 lbs as a bare tool, it is the Lightest Weight in its class, reducing fatigue throughout the workday and fitting into the tightest spaces without additional extensions, swivels, or adapters. Equipped with a Tri-LED work light, it illuminates your work area without casting shadows. The tool has a variable speed trigger with 4-Mode DRIVE CONTROL™, which offers greater precision and customization of power output, including AUTO SHUT-OFF™ that limits torque to 15 ft-lbs for hand-tight applications, preventing overtightening in forward mode. In reverse, the bolt removal mode slows down RPM once the bolt is free, preventing fastener drops in your workspace. Mode changes are effortless with single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you can easily switch modes.

Features

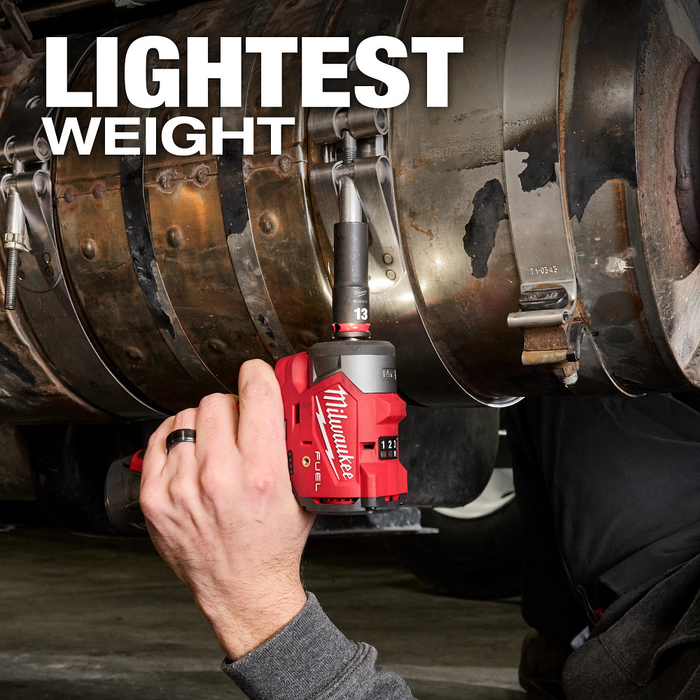

• Lightest Weight
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• Mode 1 RPM: 0-1,150; Mode 2 RPM: 0-2,400; Mode 3 RPM: 0-3,400; Mode 4 RPM: FWD: 0-1,600, REV: 0-3,400 / 0-1,500
• Compatible with all M12™ batteries & Chargers

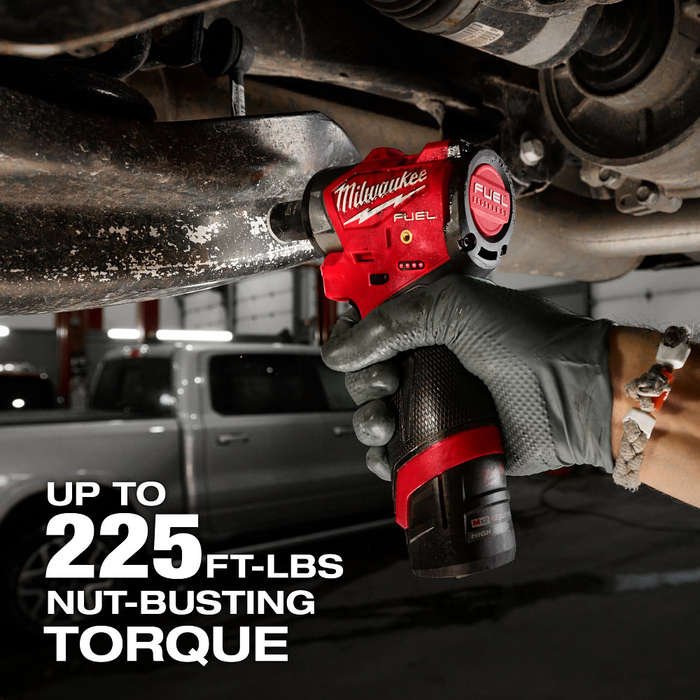

• Up to 225 ft-lbs of Nut-Busting Torque
• Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories

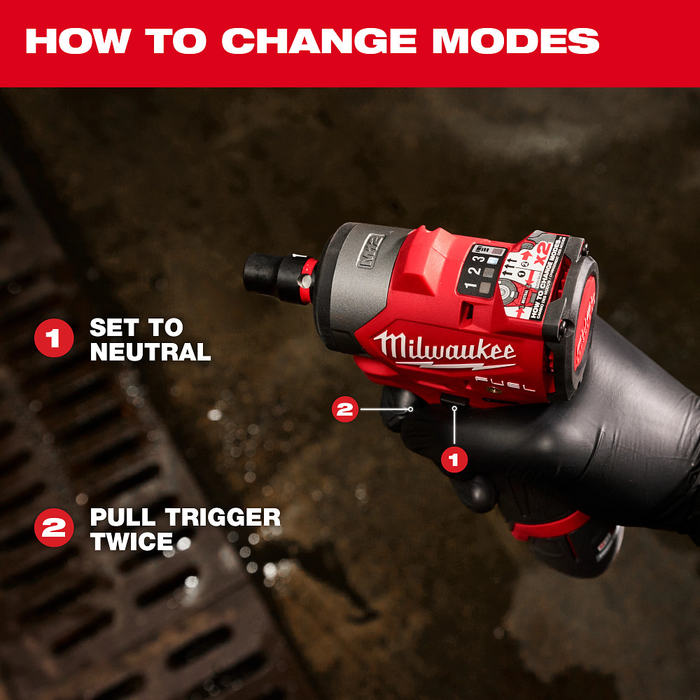

• Single-handed mode changes for increased productivity
• Mode 1 IPM: 0 - 1,000; Mode 2 IPM: 0 - 3,400; Mode 3 IPM: 0 - 3,600; Mode 4 IPM: 0 - 3,600
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• Variable speed trigger for precise control
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.

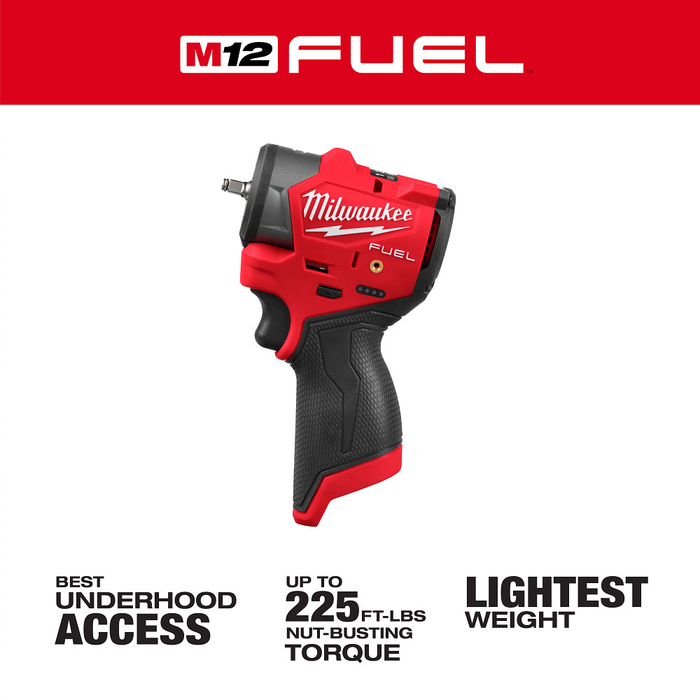

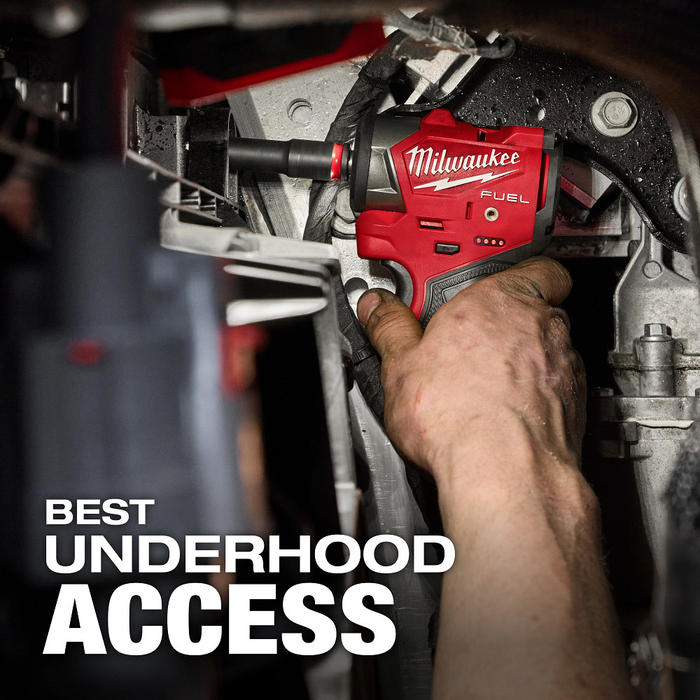

• Best Underhood Access
• 30% Faster Application Speeds

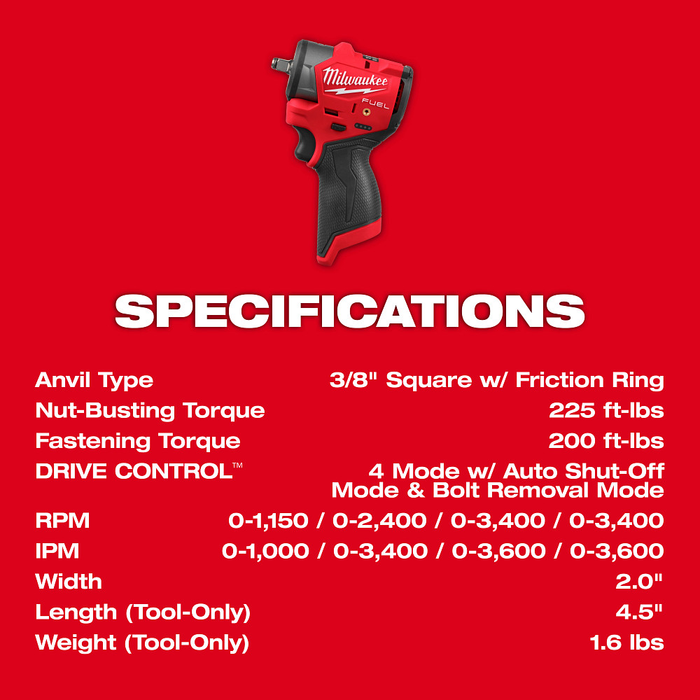

Specifications

• Battery System: M12™
• Chuck Type: Not Applicable
• Color Finish: Red
• Rotations Per Minute Range (RPM): 0-3400
• Material: Metal
• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Weight Excluding Battery (lb): 1.6
• FUEL: Yes
• Weight - Battery Installed (lb): 2
• Chuck Size: Not Applicable in
• Fastening Torque: 200
• Maximum RPM: 3400
• Power Tool Branding: FUEL™
• Anvil Size: 3/8 in
• Brushless Motor: Yes
• Voltage: 12
• Country of Origin: Vietnam
• ONE-KEY Enabled: No
• Wrench Type: Sub-Compact
• Depth: 4.5 Inches
• Number of Batteries Required: 1
• Anvil Type: Friction Ring
• Impacts Per Minute Range (IPM): 0 - 3600
• Motor Type: POWERSTATE™ Brushless
