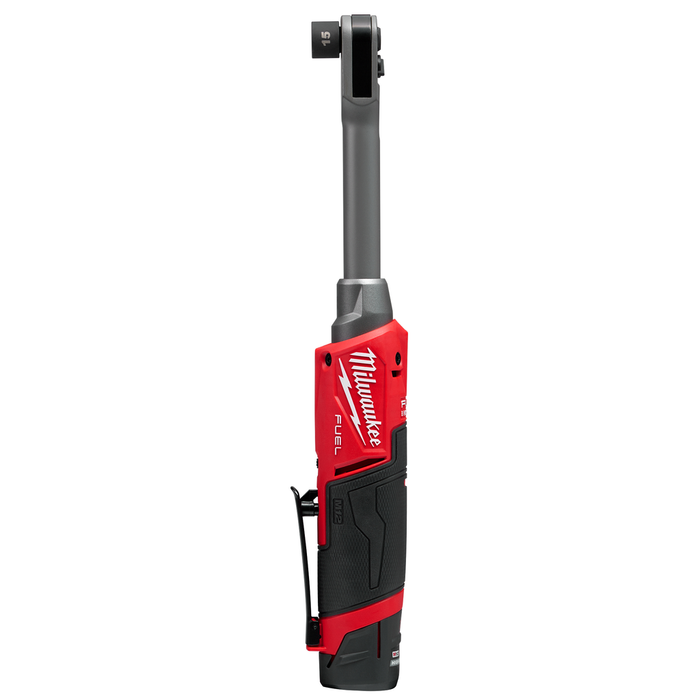

M12 FUEL™ INSIDER™ Extended Reach Box Ratchet

The MILWAUKEE® M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to be inserted directly into the tool. The M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with the provided INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. The Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. The M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is part of the M12™ System, which is fully compatible with over 150 solutions.

Features

• Unrivaled Access with INSIDER™ Box Ratchet Sockets
• On-board battery fuel gauge displays remaining run time
• Can be used manually without engaging the tool’s motor
• Extended paddle switch for multiple grip positions
• Extended reach neck for ultimate access and reduce knuckle busting
• Dual LED lights to illuminate work areas
• Ultimate Versatility to get more jobs done with one tool
• Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
• POWERSTATE™ brushless motor delivers maximum power and longer motor life
• Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
• Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
• Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access

Specifications

• Head Profile: 0.83 in
• Power Source: Cordless
• Weight Excluding Battery (lb): 2.3
• Maximum Torque (ft-lbs): 60
• Material: Metal
• Number of Speed Settings: Variable
• Country of Origin: Mexico
• Battery System: M12™
• Torque Range: 0 - 60ft-lbs
• Maximum RPM: 350
• Anvil Size: 1/2 in;3/8 in;1/4 in
• Number of Batteries Required: 1
• Depth: 4.37 Inches
• Color Finish: Black;Red;White;Metallics
• FUEL: Yes
• Weight - Battery Installed (lb): 2.7
• Rotations Per Minute Range (RPM): 0-350
• Voltage: 12
• Motor Type: POWERSTATE™ Brushless
• Power Tool Branding: FUEL™
• ONE-KEY Enabled: No
• Fastening Torque: 60
• Badge Branding: FUEL™
