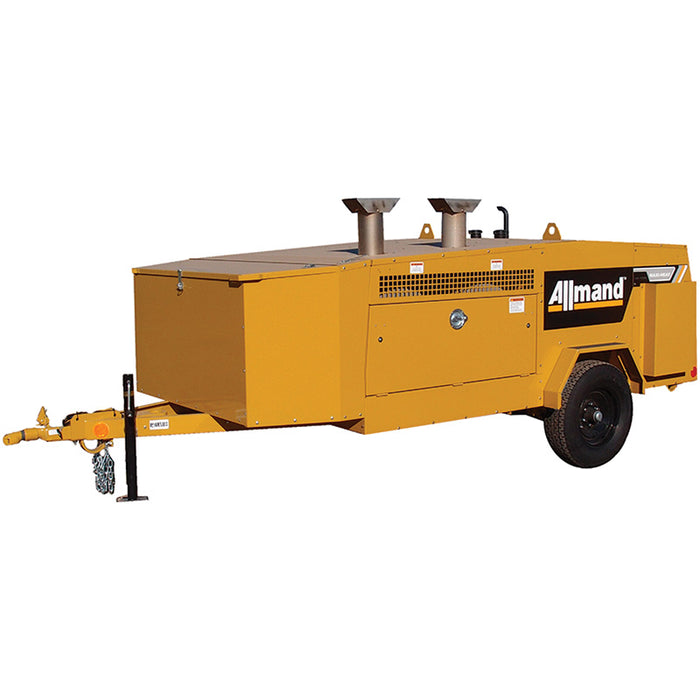

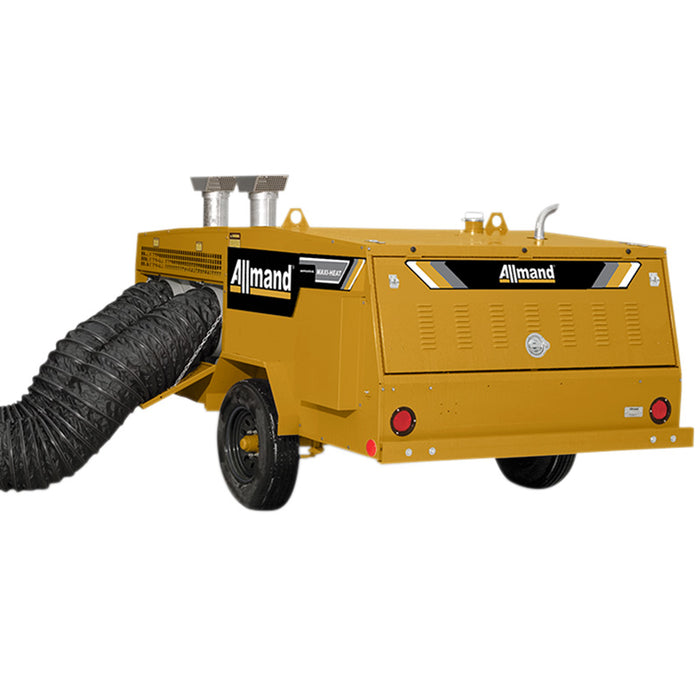

Heater Rental, Heat Exchange, 1,000,000 BTU, Trailer Mounted
HEAEXC1M
Rental Item Details
| Model | Model Allmand MH500IQ |
| Fuel Capacity | 175 Gallons |
| Runtime | 30 Hours |
| Fuel Consumption | 5.84 Gallons/Hour |
| Heated Air Volume | 2 x 3,200 CFM |
| BTU Rating | 2 x 500,000 BTU's (1,000,000 BTU) |
| Discharge Temp | Up to 230 degrees |
| Static Pressure | 2.3" |
| Maximum length of duct | 75' |
| Included 12" Duct | 2 x 12"x25' Discharge Duct |
| Power Requirements | Onboard Diesel Generator |
| GVWR | 5,650lbs |
| Dimensions | 194"L x 80"W x 87.3"H |
| DELIVERY ESTIMATE | GET RATE |
Spec Sheet, Allmand MH500IQUses Kerosene and is perfect for workshops, greenhouses, farms, warehouses, and construction sites. Two 25' ducts included ***100% clean heat, flame never touches heated air. *** Indirect heaters work the same as a home furnace using a heat exchanger to heat the air. Sometimes referred to as a heater in a trailer, diesel heater, or trailer heater.
Our oil indirect fired heater has high output, high thermal
efficiency and high airflow and is ductable up to 100 feet. Output of 1,000,000 BTU/HR with a 250 degree air output temperature.
Cubic foot of area x .133 x desired temperature rise = btu size needed
