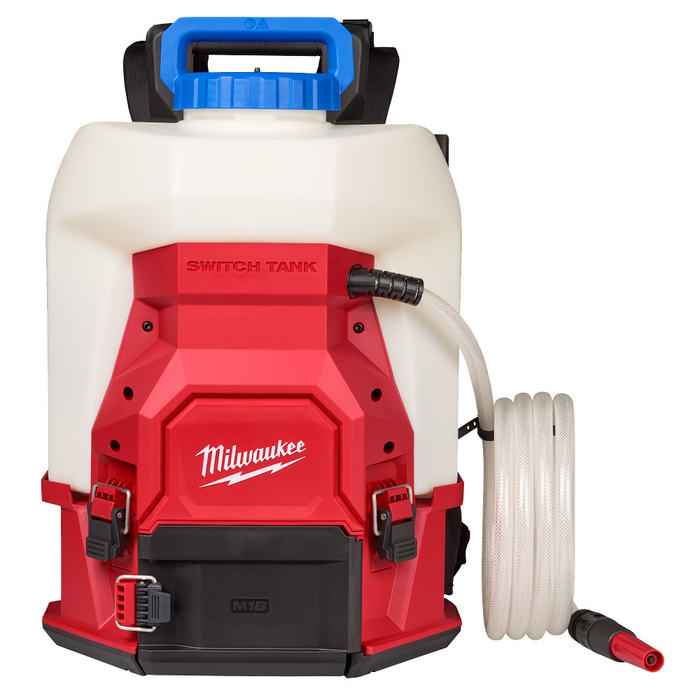

M18™ 4-Gallon Water Supply Kit w/ SWITCH TANK™

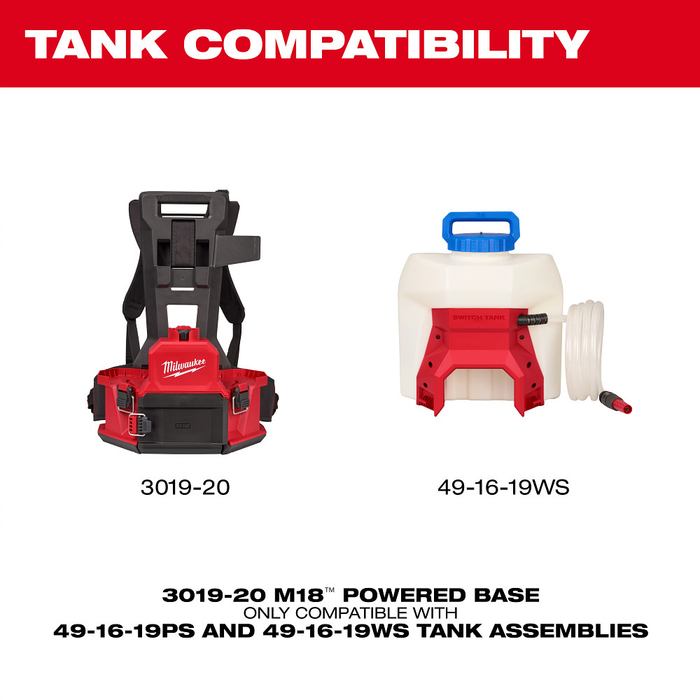

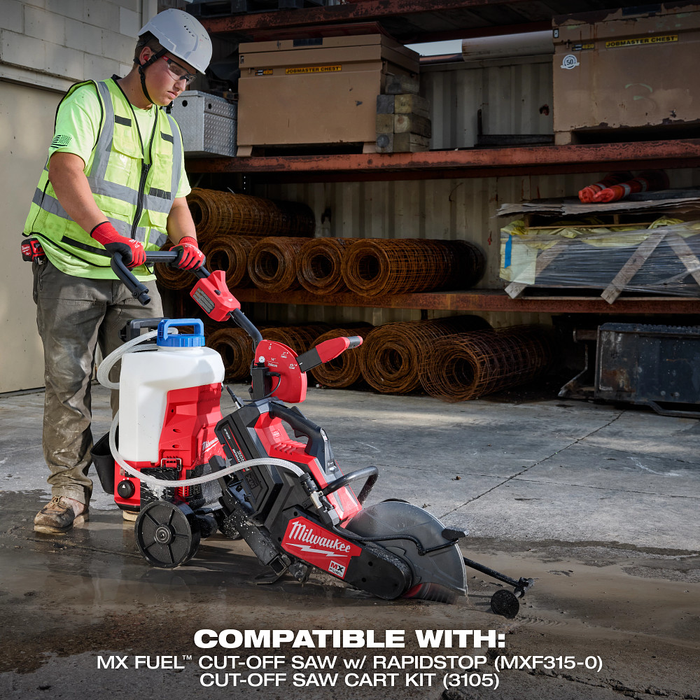

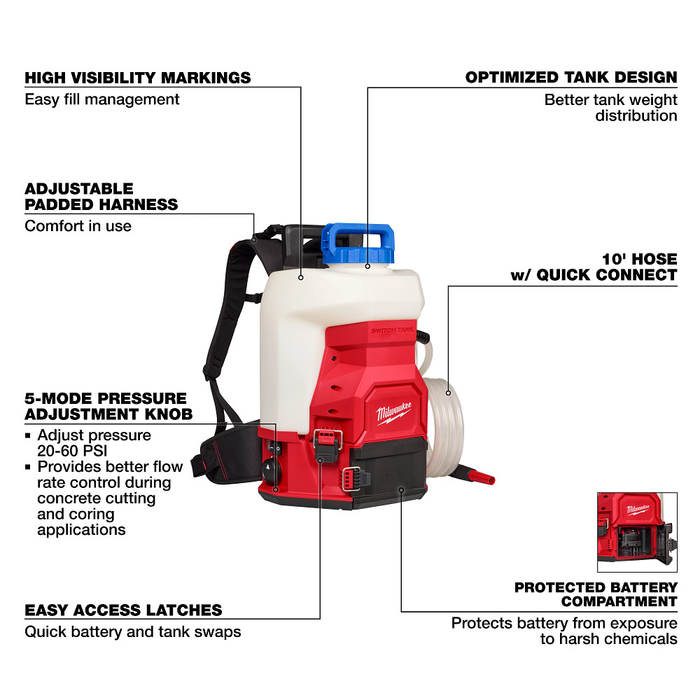

The MILWAUKEE® M18™4-Gallon Water Supply Kit w/ SWITCH TANK™ offers an easy-to-use interchangeable tank design with no manual pumping. Designed to meet your water supply needs for concrete cutting and coring, the battery-powered water supply delivers instant, constant, and adjustable pressure up to 60 PSI. The 5-mode pressure regulator adjustment knob adjusts the pressure between 20 – 60 PSI for ultimate control. The M18™ REDLITHIUM™ XC3.0 Battery (included) provides you with up to 40 tanks of water delivery per charge. The 4-gallon water supply tank features a dual diaphragm pump for increased durability and longer pump life. The tank also has a wide mouth opening for easier pouring and a strainer that filters debris from getting into the tank. The backpack frame includes a premium adjustable harness and a handle, providing convenient transportation and storage. The 4-Gallon Water Supply is made up of two components – the M18™ Powered Base w/ SWITCH TANK™ and the 4-Gallon Water Supply Tank Assembly w/ SWITCH TANK™ (49-16-19WS). The Powered Base includes the motor, battery compartment, and REDLINK™ electronics, while the interchangeable Tank Assembly includes the pump, 10ft hose, and quick-connect coupler. The isolated pump, hose, and tank allows you to add on additional tank assemblies for different applications. The M18 Powered Base is compatible with the 4-Gallon Sprayer Tank Assembly w/ SWITCH TANK™ (49-16-19PS). The M18™ 4-Gallon Water Supply Kit w/ SWITCH TANK™ is part of the M18™ system, which is fully compatible with over 275 tools.

Features

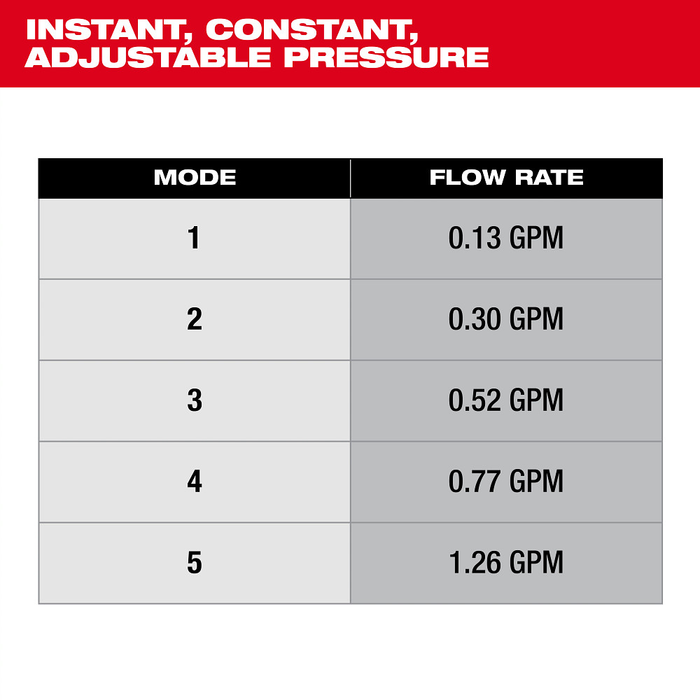

• Instant, Constant and Adjustable Pressure for Ultimate Control
• Strainer to Filter Debris

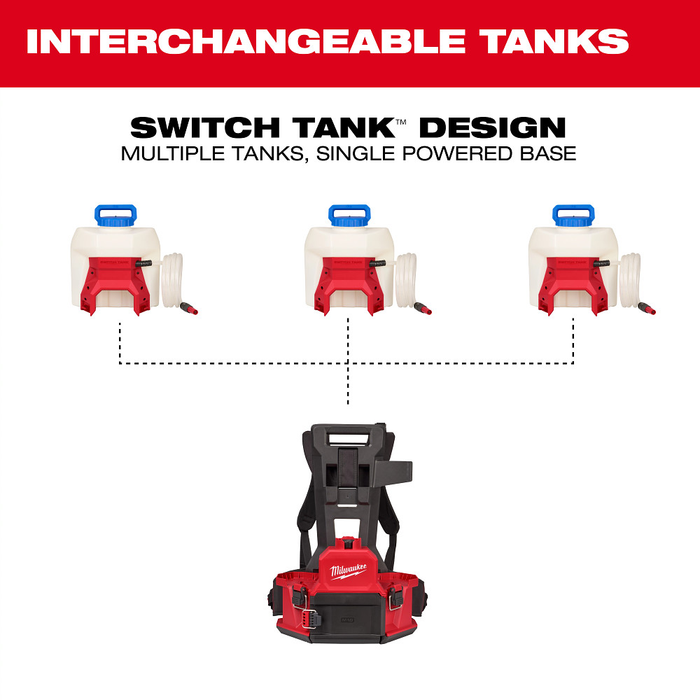

• Add-On, Replace and Interchange Water Supply Tanks w/ SWITCH TANK™

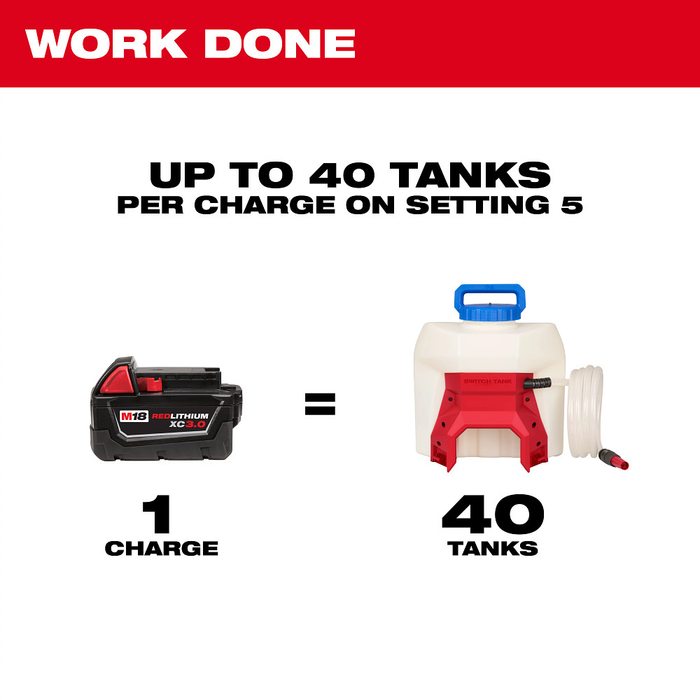

• Run-time: Up to 40 tanks per charge with M18™ REDLITHIUM™ XC3.0 Battery
• Up to 60 PSI
• Wide Mouth Opening for Easier Pouring

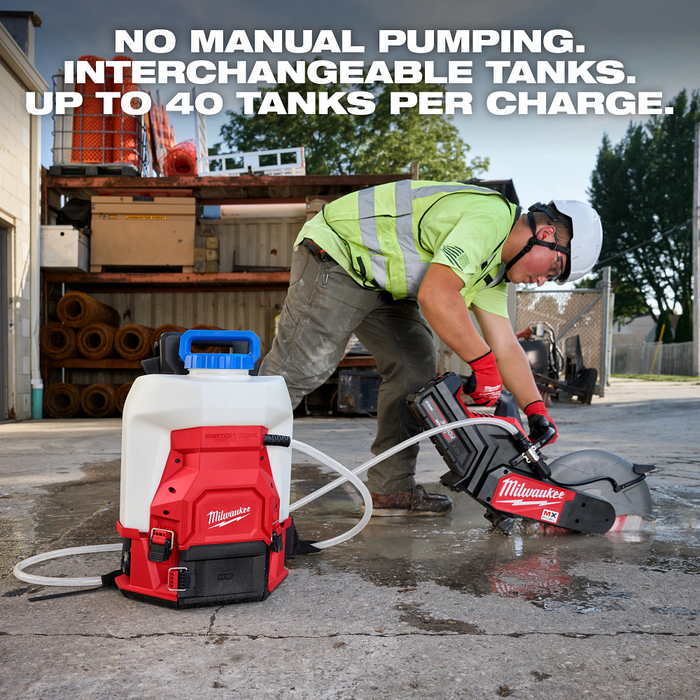

• Interchangeable Tanks, No Manual Pumping

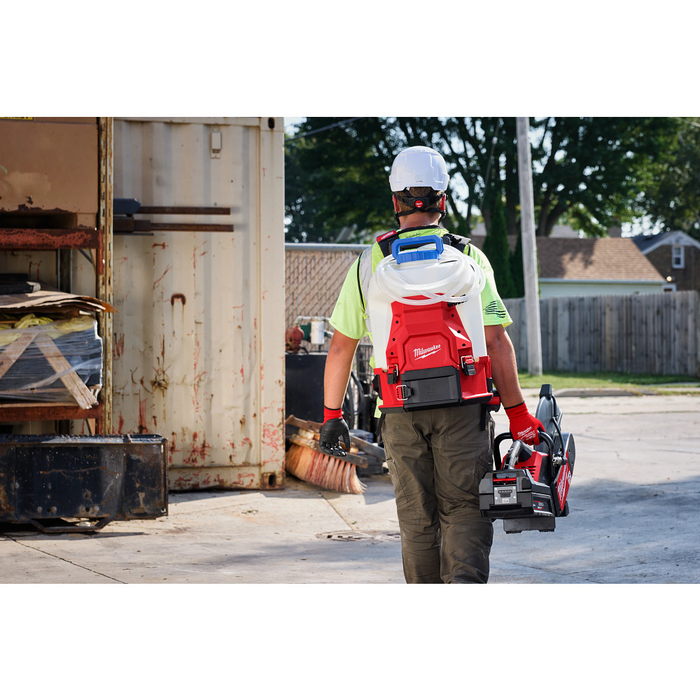

• Adjustable Premium Harness and handle for convenient transport and storage

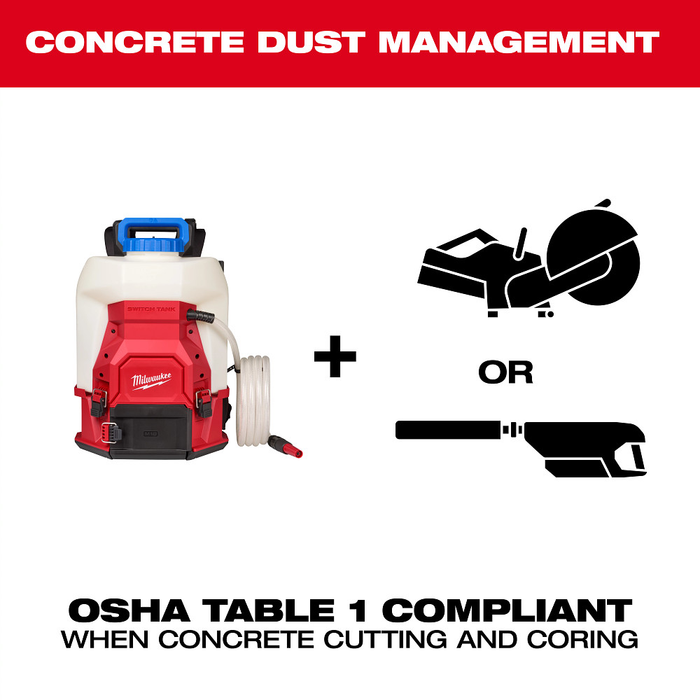

• OSHA Table 1 Compliant when Concrete Cutting and Coring
• Compatible with Pesticide Sprayer Tank Assemblies w/ SWITCH TANK™

Specifications

• ETL Listed: No
• Length: 10.5 Inches
• Battery Composition: Lithium-Ion (Li-ion)
• Charger Included: Yes
• Cordless / Corded: Cordless
• Number of Batteries Required: 1
• Battery Ampere-hour (Ah): 3.0
• Weight: 18.9 Pounds
• Maximum Horizontal Spray: 3 ft
• Battery Voltage (V): 18
• Dispenser Tank Size (gal): 4
• Color / Finish: White; Black; Red
• Height: 22.5 Inches
• Country of Origin: China
• Width: 15 Inches

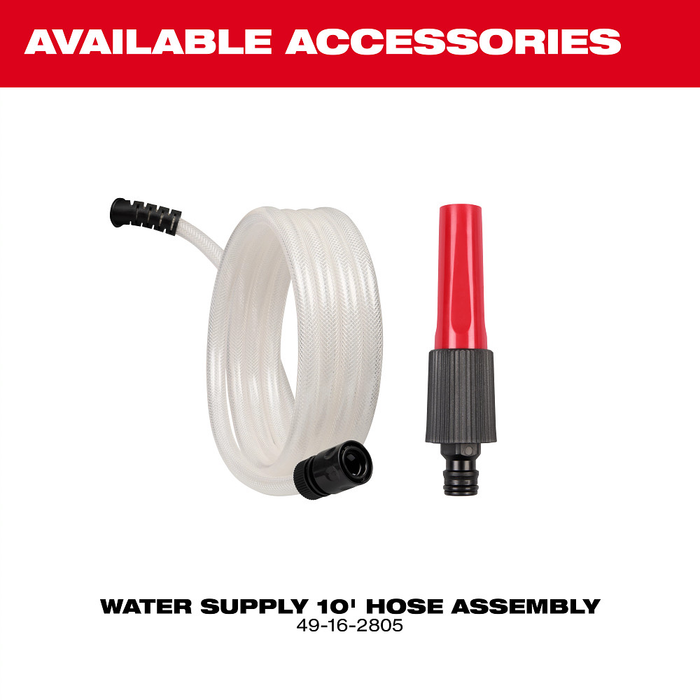

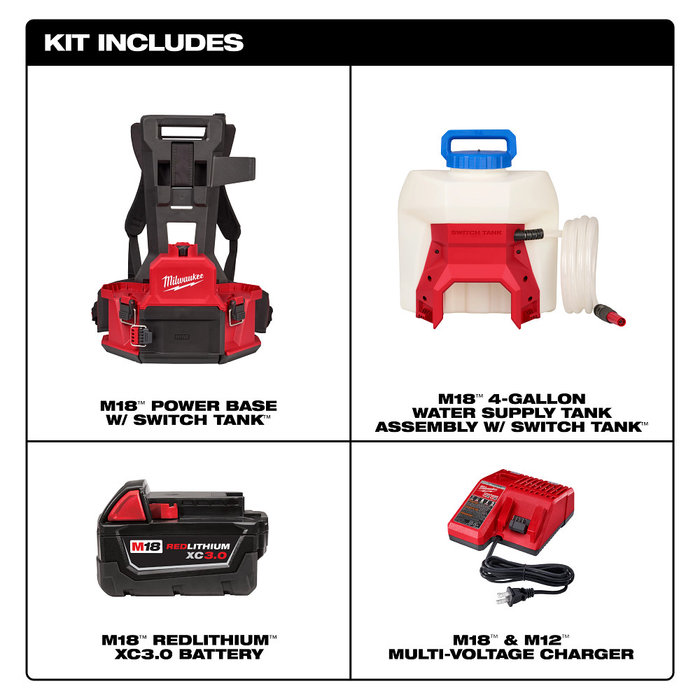

• Additional Contents: (1) 4-Gallon Water Supply Tank Assembly w/ SWITCH TANK (49-16-19WS); (1) 10ft Hose w/ Quick-Connect (49-16-2805); (1) Water Spray Nozzle w/ Quick-Connect (49-16-2805); (1) M18 REDLITHIUM XC3.0 Battery (48-11-1828); (1) M18/M12 Multi-Voltage Charger (48-59-1812)
• Fuel Type: Battery Powered
• Maximum Vertical Spray: 24 ft
• UL Listed: Yes
• Number of Batteries Included: 1
• Battery Charger Input Voltage (V): 120
• CSA Certified: No
