Brass 3/8-in FIP x 3/8-in FIP Ball Valve - Lead-Free
Aisle View
Tap to enlarge

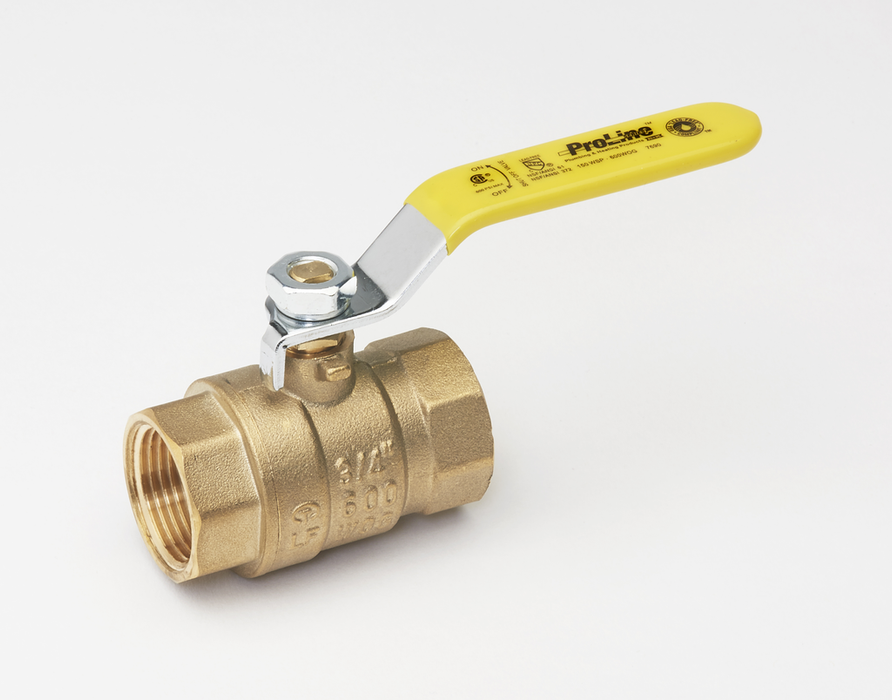

The Series 7690T Ball Valve is our lighter ball valve line offering for ligt commercial and residental applications. Constructed of forged brass, this valve is designed to work with oil, gas and wate operations up to 600 PSI. This valve is deigned with a full port allowing for maximum flow rate and features a lever handle allowing for easy on/off operation. The packing gland feature allows for tightening the internal components when the stem leaks, ensuring a longer valve operational life.
Features
- 600 PSI/150 WSP (working steam pressure)
- Temperature range of -40°F to 194°F
- Full port for maximum flow rate
- Rust-resistant heavy-duty handle with vinyl grip
- Threaded ends comply with ANSI B1.20.1
- Packing gland – blowout proof stem design
- Chrome-plated brass ball and stem
- PTFE discs and seats
Specifications
- Length: 4.33 Inches
- Country of Origin: China
- Weight: 0.2756 LBS
- Width: 0.94 Inches
Downloads
