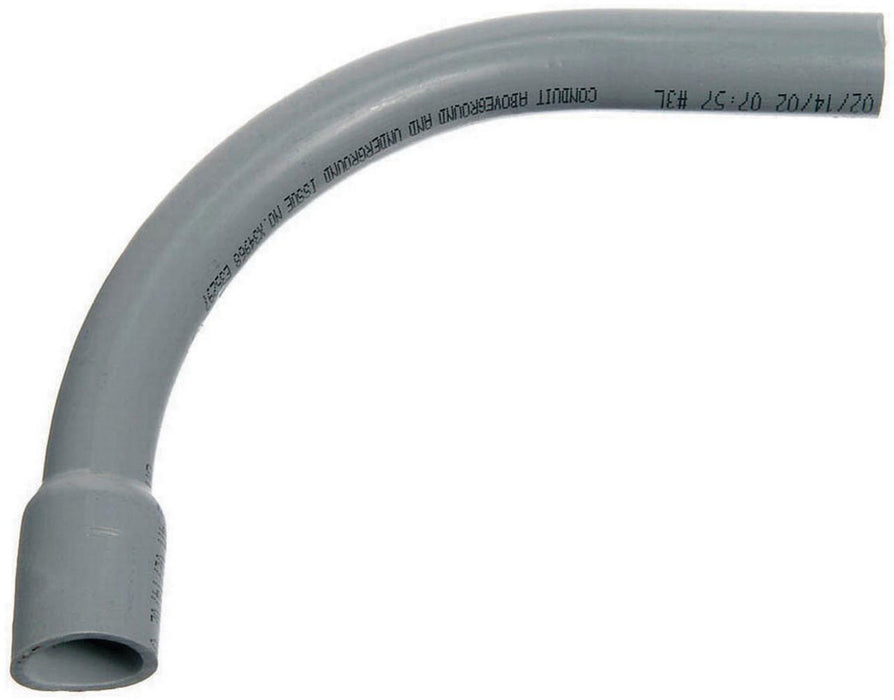

UA9AHB-CTN ELBOW CONDUIT 90D SCH40 15IN
by Gap Power
SKU 197-5705
Original price
$5.49
-
Original price
$5.49
Original price
$5.49
$5.49
$5.49
-
$5.49
Current price
$5.49
In-Store Only — Visit us in Gap, PA to purchase
Overview
The UA9AHB-CTN (UA9AHB-CTN) by Thomas & Betts (ABB) is designed for rigid PVC conduit systems requiring a 90-degree directional change at Schedule 40 wall thickness.
| Specification | Value |
|---|---|
| MPN | UA9AHB-CTN |
| Brand / Manufacturer | ABB / Thomas & Betts |
| Product Type | PVC Bell End Elbow |
| Trade Size | 1.5 in. |
| Schedule | Schedule 40 |
| Angle | 90 Degree |
| Radius Type | Standard Radius |
| Material | PVC |
| Color | Silver |
| Weight | 0.96 lb |
Technical Features
- Schedule 40 PVC construction: Provides the standardized wall thickness required for compliance with Schedule 40 conduit system installations, ensuring consistent fit with compatible fittings and conduit.
- 90-degree bend angle: Enables a precise right-angle directional change in conduit routing, reducing the need for multiple fittings or custom bends.
- Bell end design: Incorporates a factory-formed socket end that accepts standard 1.5 in. Schedule 40 PVC conduit directly, simplifying solvent-cement connections and maintaining system integrity.
- Standard radius geometry: Conforms to industry-standard sweep dimensions, facilitating wire and cable pull-through during installation.
- 1.5 in. trade size: Sized to accommodate the wire fill capacity associated with 1.5 in. conduit systems.
Applications
- Directional changes in underground or above-ground PVC conduit runs in electrical distribution systems.
- Use in conduit installations where Schedule 40 wall rating is specified per project or code requirements.
- Compatible with 1.5 in. Schedule 40 PVC conduit and fittings from standard electrical conduit systems.
- Suitable for routing conductors around structural obstacles in residential, commercial, and light industrial wiring applications.
