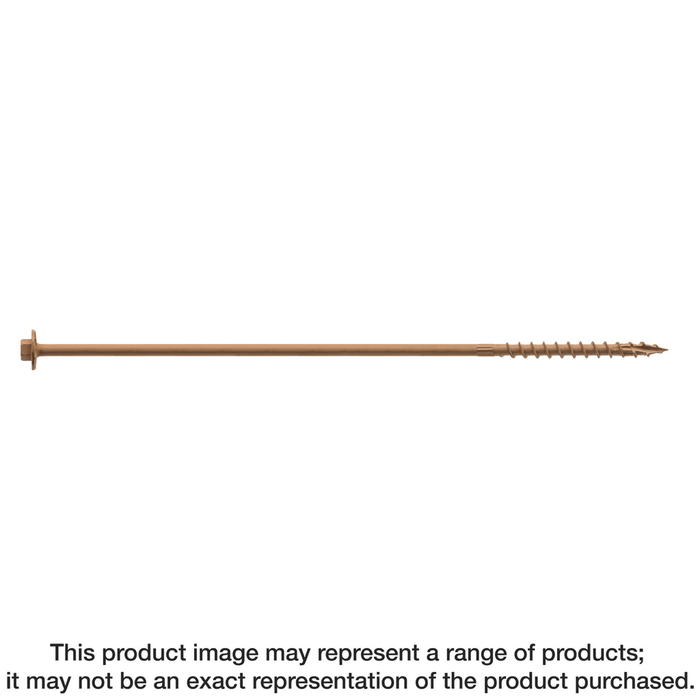

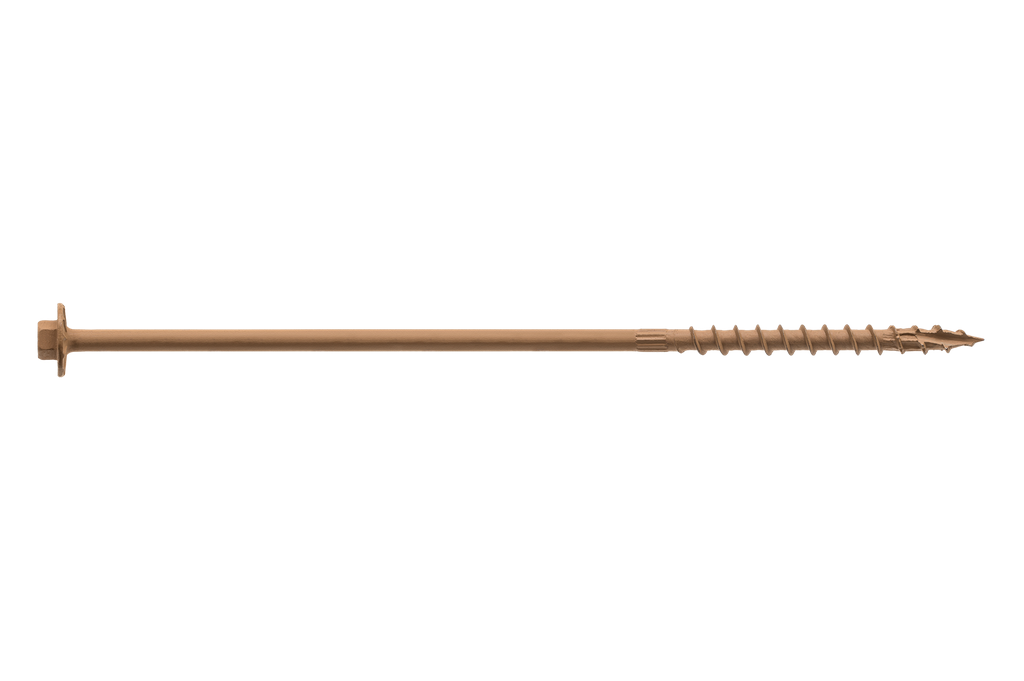

Simpson Strong-Tie SDWH19800DB-R50 Strong-Drive® SDWH™ TIMBER-HEX Screw — 0.195 in. x 8 in. 5/16 Hex, DB Coating (50-Qty)

Ideal for structural and general-purpose fastening applications where a hex-head drive is preferred. The Strong-Drive SDWH Timber-Hex screw is ideal for the contractor and do-it-yourselfer alike. It is code listed under IAPMO-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.

Features

• Driver bit included (replacement bit BITHEXR516-134)
• 5/16-in. hex drive
• Under-head nibs that offer greater control when seating the head
• Double-barrier coating provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in most non-marine environments
• Large washer head provides maximum bearing area (0.650-in. head dia.)
• Bold thread design that provides superior holding power
• SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Size identification on all SDWH screw heads

Prop 65

• WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Specifications

• Depth: 0.650 in
• Length: 8 in
• Country of Origin: Taiwan
