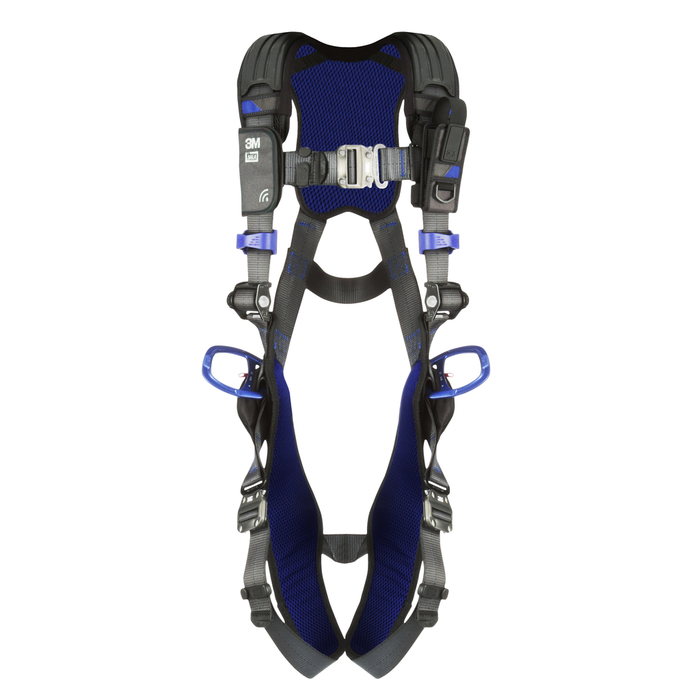

3M™ DBI-SALA® ExoFit™ X300 Comfort Vest Positioning Safety Harness 1113046, Small

The 3M™ DBI-SALA® ExoFit™ X300 is designed for those who refuse to compromise. The X300 harnesses are outfitted with high-quality components that have been developed to enhance the safety, convenience and performance for working at height on your job site. The X300 comfort harness is built with 6,000lb polyester webbing, robust nylon/polyester hybrid comfort padding with reflective 3M Scotchlite™ panels, and lightweight aluminum hardware. New technology in the Dorsal D-ring area helps workers make efficient connections and maintain a safe harness fit. Locking torso adjustment and quick-connect buckle options are available to optimize fit and worker experience. Select configurations are also available with exclusive weight distribution system to help reduce shoulder strain and fatigue.

Features

• Integrated easy-link SRL adapter lets you quickly and easily connect and disconnect personal SRLs. Available on select models.
• Revolving Torso Buckles adjust harness fit with ease and speed and lock webbing into place to maintain a comfortable and safe harness fit. Available on select models
• Auto-locking quick connect buckles secure contact with webbing, reducing the need to readjust. Available on select models.
• Automatic stand-up D-ring (lightweight aluminum) enables efficient dorsal connections
• Low-profile suspension trauma strap design integrated between harness webbing
• Equipped with anti-sliding dorsal D-ring pad to help greatly reduce dorsal D-ring slide

Specifications

• Torso Buckle Material: Aluminum Alloy/Zinc Plated Steel
• Product Type: Comfort Vest Positioning Safety Harness
• Weight Capacity (Imperial) UOM: lb
• Weight Capacity (Metric) UOM: kg
• Chest Buckle Material: Aluminum Alloy/Zinc Plated Steel
• Padding Location Type: Back
• Country of Origin: United States
• Weight Capacity (Imperial): 420.0
• Weight Capacity (Metric): 190.0
• Leg Buckle Material: Aluminum Alloy/Zinc Plated Steel
• Connected Safety ID Equipped: Yes
• Specifications Met: ANSI Z359.11, OSHA 1910.140, OSHA 1926.502
• Number of Connection Points: 3.0
• Product Color: Gray
• Harness Application: Positioning
• Subpelvic Strap: Yes
• Webbing Material: Polyester
• Belly Pad: No
• Body Belt: No
• D-ring Placement: Back
• Hip Pad: No
• Chest Connection Type: Auto-locking Quick Connect
• Product Series: X300
• Harness Size: Small
• Torso Buckle Type: Aluminum Alloy/Zinc Plated Steel
