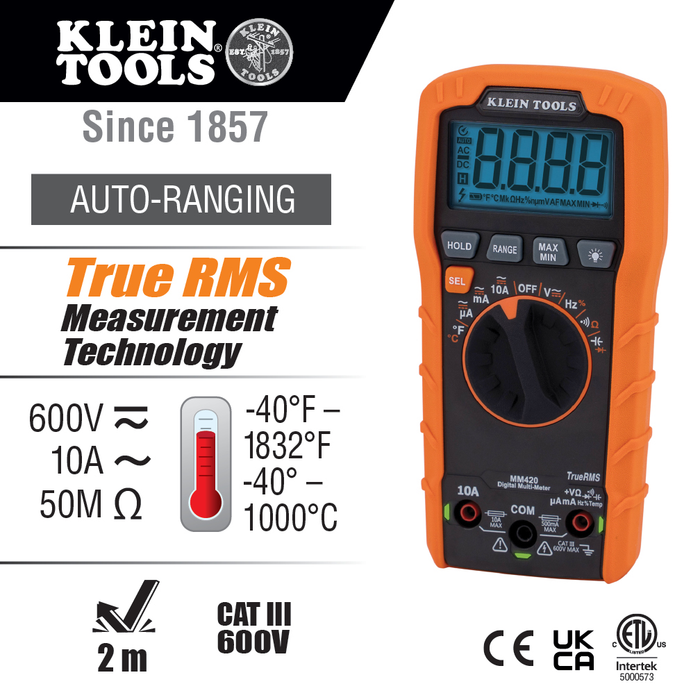

Digital Multimeter, Auto-Ranging, 600V

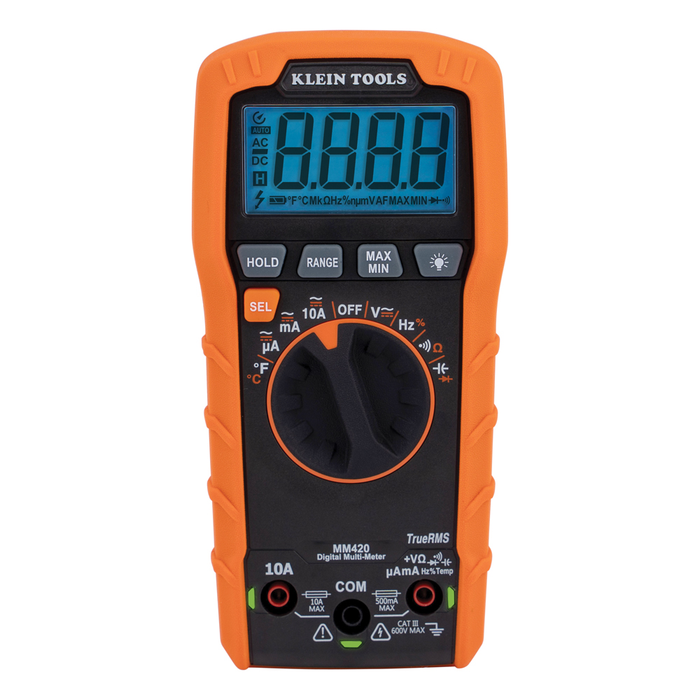

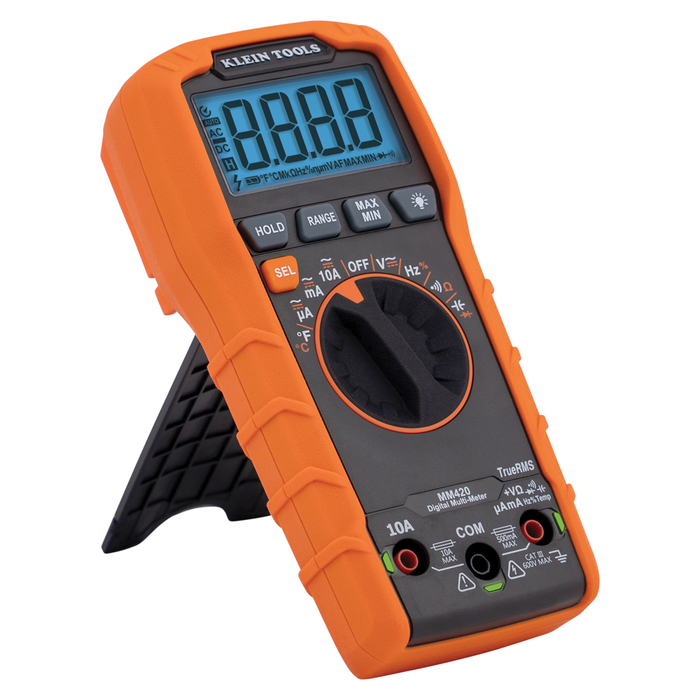

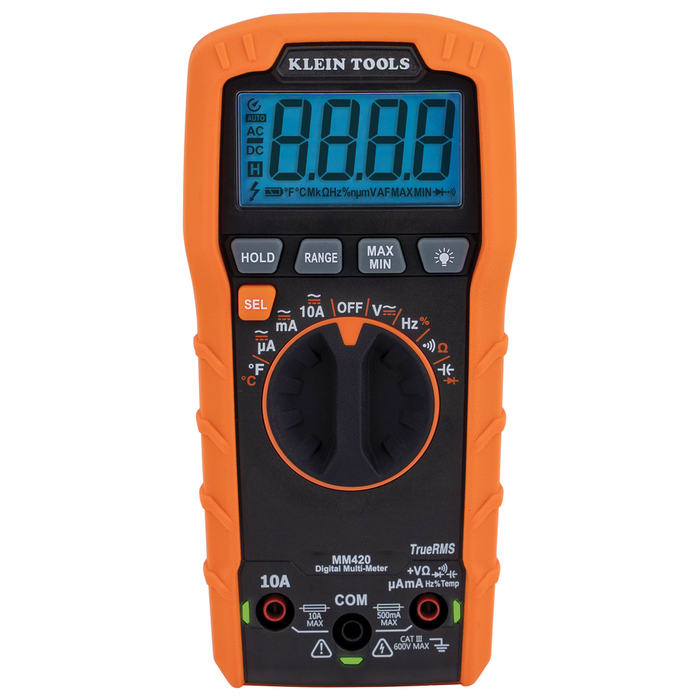

Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Features

• Includes test leads, thermocouple with adapter, batteries and user manual
• For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
• Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
• Durable meter built to withstand a 6.6-Foot (2 m) drop

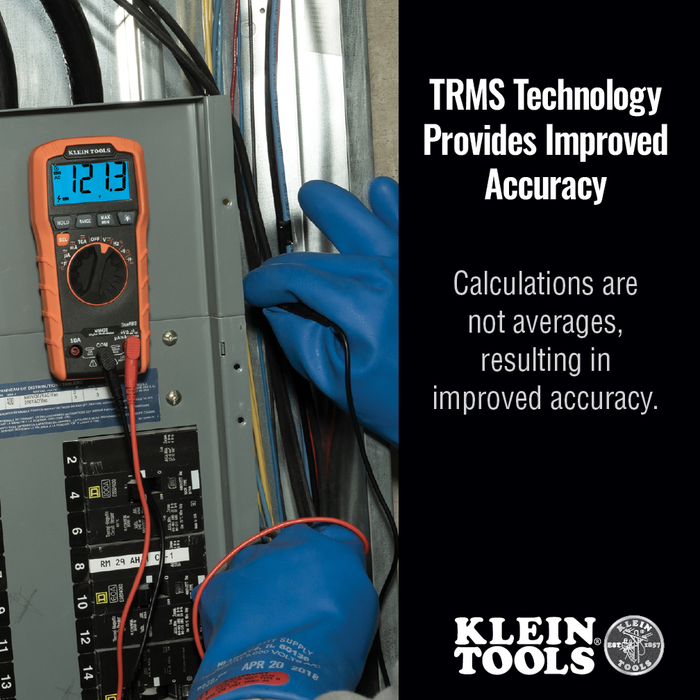

• Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
• CAT III 600V safety rating

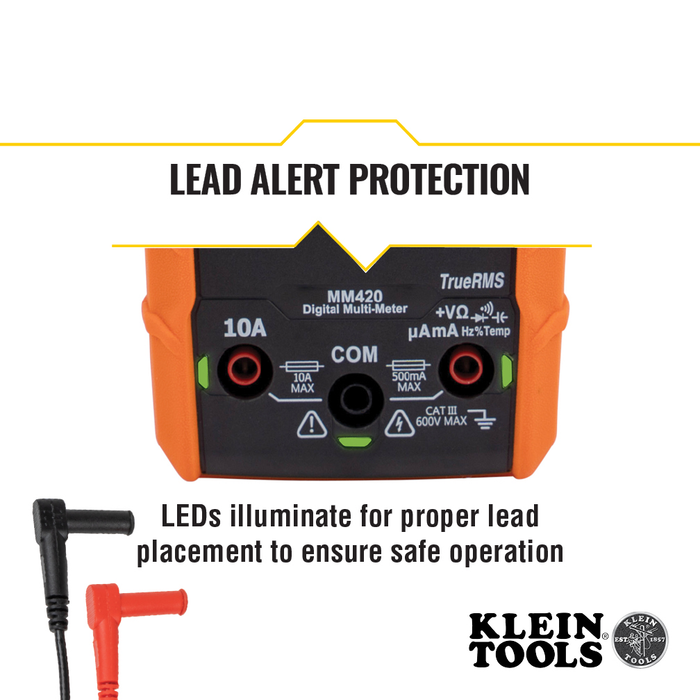

• Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
• Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
• Low battery indicator and easily accessible battery and fuse compartment

Warnings

• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

Specifications

• Functions: Measures up to 600V AC/DC Voltage, 10A AC/DC Current, 50MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes, and Continuity
• Ohms: 50MΩ Resistance
• Frequency: 1 Hz - 50 KHz
• Capacitance: 400 µF
• Overall Length: 6.41 Inch (16.3 cm)
• Accuracy: See Instructions
• Display: 4000 Count LCD
• Batteries: 2 x AAA
• Current: 10A AC/DC
• Weight: 0.9100 lbs
• Overall Width: 3.16 Inch (8 cm)
• Temperature Range: -40° to 1832°F (-40° to 1000°C)
• Height: 3.8200 in
• Drop Protection: 6.6' (2 m)
• Material: ABS, Electrical Components
• Included: Multimeter, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
• Overall Height: 4.5 cm (1.78 Inch)
• Application: Testing and Measuring Voltage
• Standard: CAT III 600V; CE and UKCA Certified
• Depth: 9.3300 in
• Color: Orange/Black
• Width: 5.0800 in
• Voltage: 600V AC/DC
• Type: Digital Multimeter
