Digital Multimeter, Manual-Ranging, 600V

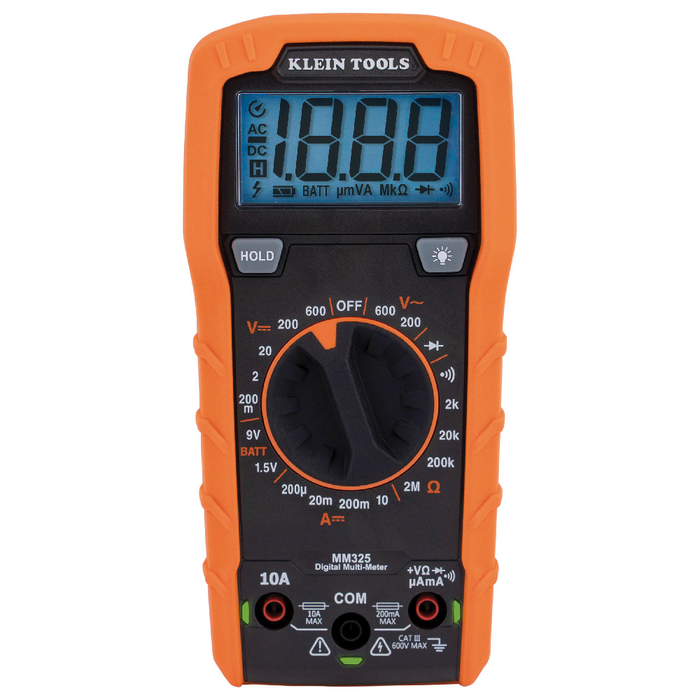

Klein Tools MM325 Multimeter is a manual-ranging multimeter that measures AC/DC voltage, DC current, and resistance. It can also test batteries, diodes, and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Warnings

• Before each use verify meter operation by measuring a known voltage or current.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Features

• Easy-to-view backlit display for low light environments
• Low battery indicator and easily accessible battery and fuse compartment
• Durable meter built to withstand a 6.6-Foot (2 m) drop
• Multimeter measures up to 600V AC/DC voltage, 10A DC current, 2 MOhms resistance, continuity, batteries, and diodes
• Lead Alert; Backlight; Auto Power-Off; Data Hold
• CAT III 600V safety rating
• Lead Alert protection with LED's for test lead placement
• Includes test leads, batteries and user manual
• For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

Specifications

• Standard: CAT III 600V; CE and UKCA Certified
• Overall Width: 3.13" (7.9 cm)
• Depth: 9.3300 in
• Overall Height: 1.83" (4.6 cm)
• Batteries: 2 x AAA
• Voltage: 600V AC/DC
• Accuracy: Voltage +/- 2%
• Drop Protection: 6.6' (2 m)
• Current: 10A DC
• Included: Multimeter, Test Leads with CAT III/CAT IV Safety Caps, Instructions, 2 x AAA Batteries
• Functions: Measures up to 600V AC/DC Voltage, 10A DC Current, 2MΩ Resistance, Tests Batteries, Diodes, and Continuity
• Overall Length: 6.41" (16.2 cm)
• Height: 3.8200 in
• Ohms (Resistance): 2MΩ
• Application: Testing and Measuring Voltage
• Color: Orange/ Black
• Type: Digital Multimeter
• Material: ABS and Electrical Components
• Display: 2000 Count LCD
• Width: 5.0800 in
• Weight: 0.8700 lbs

Downloads

Instructions
