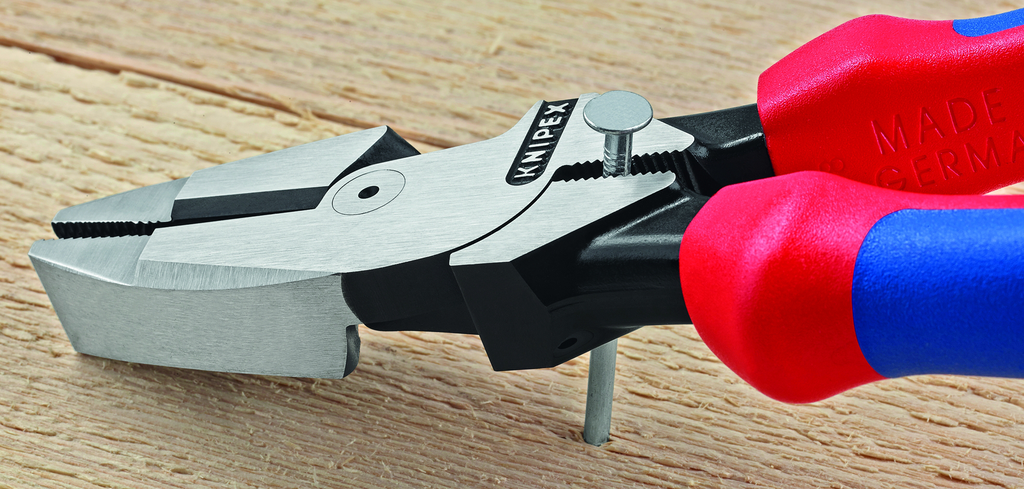

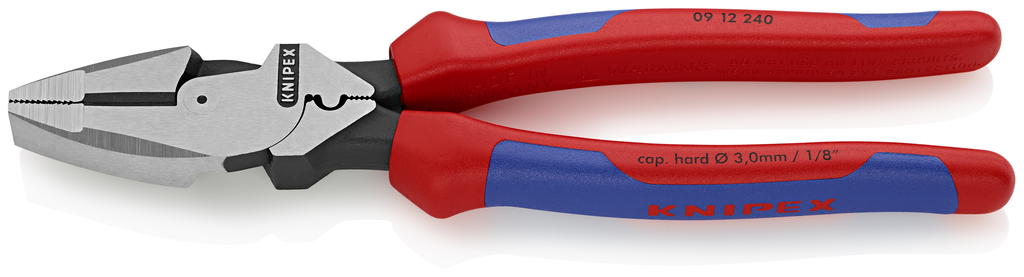

High Leverage Lineman's Pliers New England Comfort Grip w/ Tape Puller & Crimper

High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio. Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation. Effective cross-hatched knurled gripping zone in jaws for strong gripping and pulling. Serrated gripping zone below the joint for powerful leverage. Cutting edges for soft and hard wire, nails, ACSR and piano wire. Cutting edge hardness approx. 64 HRC. With fish tape puller in the joint gap; with universal crimping point below the joint. Vanadium steel, forged, multi stage oil-hardened.

Features

• Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation
• Cutting edges for soft and hard wire, nails and piano wire
• With fish tape puller in the joint gap; with universal crimping point below the joint
• Vanadium steel, forged, multi stage oil-hardened
• High transmission ratio for easy cutting
• High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio
• Serrated gripping zone below the joint for powerful leverage
• Cutting edge hardness (approx. 64 HRC)
• Effective cross-hatched knurled gripping zone in the jaws for strong gripping and pulling

Specifications

• Handle Type: Multi-Component Grips
• Cutting Capacity - Medium Hard Wire (Nail): 3/16"
• Joint Type: Inserted rivet
• Material Type: Vanadium steel, forged, multi stage oil-hardened
• Surface Finish: Polished
• 1000 Volt Insulated: No
• Gripping Surface: Cross-hatched, Knurled
• Cutting Edge HRC: Approx. 61 HRC
• Cutting Capacity - Hard Wire (Steel Wire): 1/8"
• Crimping Positions: 1
