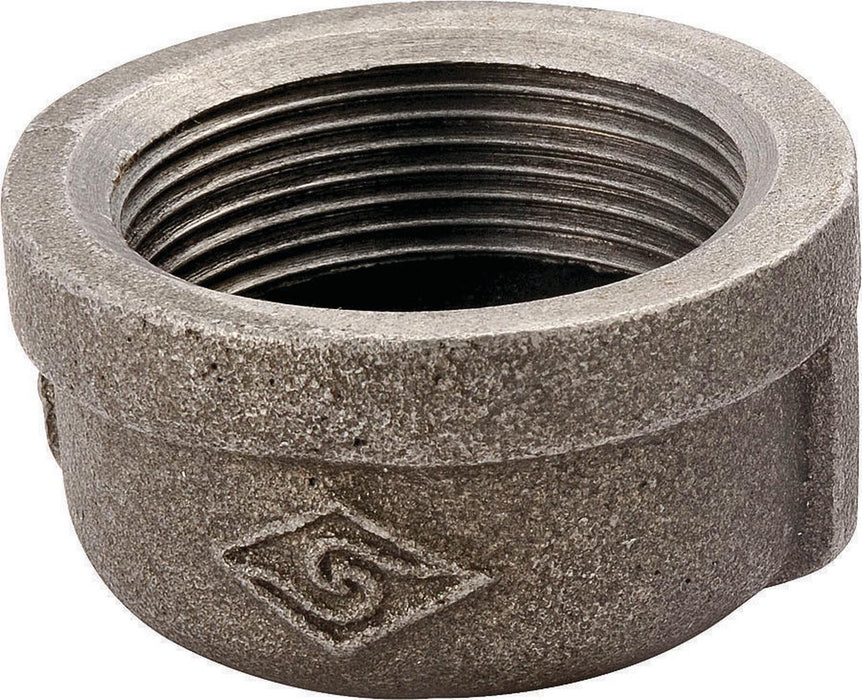

66386 1/4 BLACK CAP
by Gap Power
SKU 610-2180
Sold out
Original price
$2.40
-
Original price
$2.40
Original price
$2.40
$2.40
$2.40
-
$2.40
Current price
$2.40
In-Store Only — Visit us in Gap, PA to purchase
Overview
The 66386 1/4 Black Cap (B300 8) is designed for Hardware > Plumbing > Plumbing Fittings & Supports applications, specifically for closing the end of a pipe or fitting using a threaded female connection.
| Specification | Value |
|---|---|
| MPN | B300 8 |
| Brand | Worldwide Sourcing (Prosource) |
| Nominal Size | 1/4 in |
| Connection Type | FIP (Female Iron Pipe) |
| Thread Type | Female NPT |
| Wall Thickness | 0.09 in |
| Length | 0.63 in |
| Operating Pressure | 300 PSI |
| Operating Temperature | -4°F to 572°F (-20°C to 300°C) |
| Schedule Rating | Schedule 40 |
| Material | 150 Class Malleable Iron |
| Finish | Black |
| Weight | 3.91 lb |
| Certifications | UL Listed, FM Certified |
| Standards | ASTM, ASME |
Technical Features
- 150 Class Malleable Iron Construction: Provides structural durability and resistance to mechanical stress in pressurized pipe systems.
- 300 PSI Pressure Rating: Supports high-pressure applications, reducing risk of fitting failure under demanding operating conditions.
- Wide Operating Temperature Range (-4°F to 572°F): Suitable for both low-temperature and high-heat environments, including steam and hot fluid systems.
- Female NPT Threads: Designed to connect directly to a male pipe or fitting, ensuring a secure, leak-resistant threaded seal.
- Schedule 40 Rating: Compatible with standard Schedule 40 pipe systems for consistent, predictable fit and performance.
- Black Finish: Provides surface protection and visual identification consistent with black iron pipe systems.
- UL Listed and FM Certified: Meets independently verified safety and performance standards for use in fire protection and industrial installations.
- Meets ASTM and ASME Standards: Confirms dimensional and material compliance with recognized industry specifications.
Applications
- Closing off the open end of a 1/4 in male pipe or fitting in plumbing and piping systems.
- Use in fire protection systems where FM and UL certifications are required.
- Suitable for installations involving steam, hot fluids, or cold-temperature environments given the broad thermal operating range.
- Compatible with black iron pipe systems in residential, commercial, and industrial plumbing configurations.
