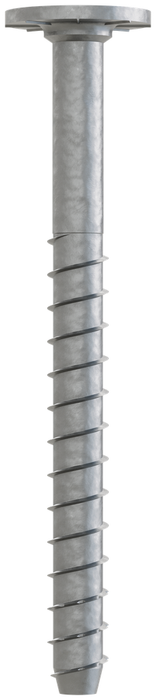

Simpson Strong-Tie THDB62800WHMG Titen HD® 5/8 in. x 8 in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor (10-Qty)

The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.

Prop 65

• WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Features

• Standard fractional sizes — the hole size matches the anchor size
• Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
• For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
• Washer head allows screw anchor applications incompatible with a hex head
• Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
• Mechanically galvanized Titen HD is code listed for exterior applications

Specifications

• Country of Origin: China
• Anchor size: 5/8 in. x 8 in.
• Depth: 1.75 in
