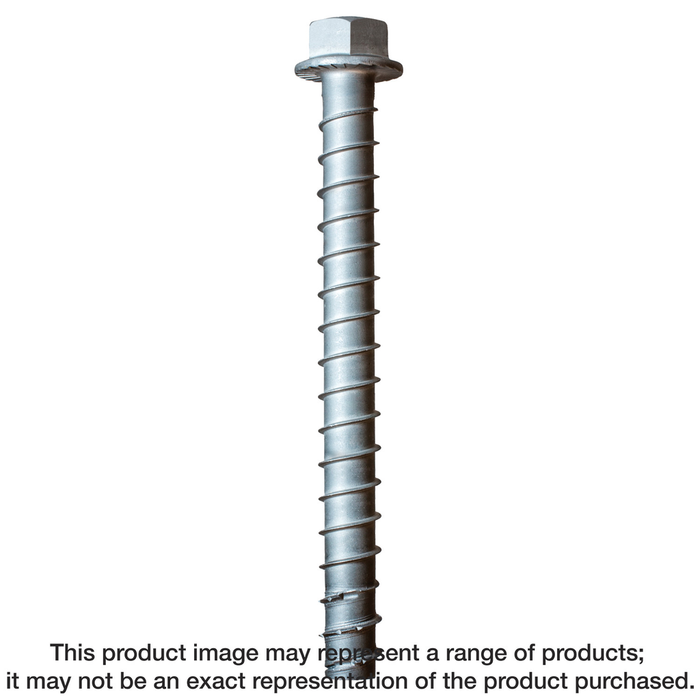

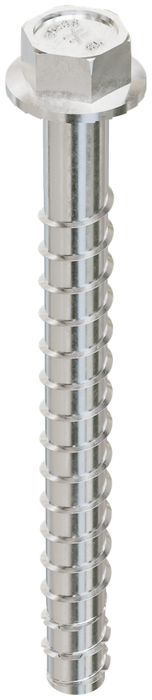

Simpson Strong-Tie THD75812H4SS Titen HD® 3/4 in. x 8-1/2 in. Type 304 Stainless Steel Heavy-Duty Screw Anchor (5-Qty) (Pack of 252)
Aisle View
Tap to enlarge
The Titen HD stainless-steel screw anchor for concrete and masonry sets the standard for when the job calls for installation in multiple types of environments. It is the ultimate choice to provide fast and efficient installation, combined with long-lasting corrosion resistance for an unsurpassed peace-of-mind. The THDSS is a state-of-the-art screw anchor solution that combines the corrosion resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads. Type 316 is the optimal choice for applications in corrosive or extreme environments such as salt water, or when chemical or corrosive solutions are present. Type 304 is a cost-effective solution for less extreme applications where the environment may be wet, moist or damp.
Features
- Hex-washer head requires no separate washer and provides a clean installed appearance
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
- Thread design undercuts to efficiently transfer the load to the base material
- Made from Type 304 stainless steel
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
- Qualified for static and seismic loading conditions
Prop 65
- WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
- Country of Origin: China
- Size: 3/4 in. x 8-1/2 in.
- Depth: 1.6 in
