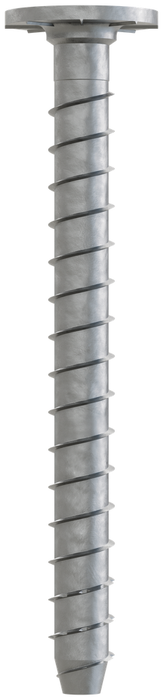

Simpson Strong-Tie THD50600WHMG Titen HD® 1/2 in. x 6 in. Mech. Galv. Washer-Head Heavy-Duty Screw Anchor (15-Qty)
SKU THD50600WHMG
Original price
$72.00
-
Original price
$72.00
Original price
$72.00
$72.00
$72.00
-
$72.00
Current price
$72.00
In-Store Availability
Stock Status:
Limited Stock (1-2?)
Location:
Aisle 15 left side
Aisle View
Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase
The Simpson Strong-Tie® Titen HD® with washer head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a minimal head profile is necessary. The model is offered in sizes suitable for use in sill plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor. The anchor's 6-lobe drive eases driving and is less prone to stripping.
Features
- For added convenience, a 1/2-in. socket adapter and two T-drive bits included in each box
- Qualified in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind and seismic loading conditions
- Washer head allows screw anchor applications incompatible with a hex head
- Standard fractional sizes — the hole size matches the anchor size
- Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
- No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
- Mechanically galvanized Titen HD is code listed for exterior applications
Prop 65
- WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications
- Anchor size: 1/2 in. x 6 in.
- Depth: 1.375 in
- Country of Origin: China
