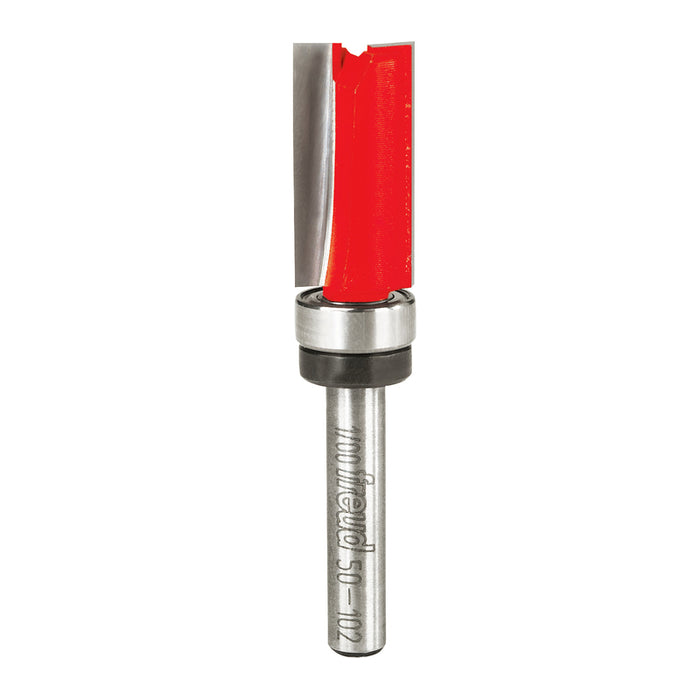

1/2" Flush Trim Router Bit (Top Bearing)
by Gap Power
SKU DR50102
Sold out
Original price
$22.95
-
Original price
$22.95
Original price
$22.95
$22.95
$22.95
-
$22.95
Current price
$22.95
In-Store Availability
Stock Status:
3+
Location:
Not Specified
In-Store Only — Visit us in Gap, PA to purchase
Overview
The Diablo 1/2" Flush Trim Router Bit (Top Bearing) (DR50102) is designed for flush trimming and template-guided routing of wood and laminates.
| Specification | Value |
|---|---|
| MPN | DR50102 |
| Brand | Diablo |
| Cutting Diameter | 1/2 in. |
| Cutting Length | 1 in. |
| Overall Length | 2-5/8 in. |
| Weight | 0.1 lb |
| Bearing Position | Top (Upper) |
| Blade Material | High-Density Carbide with Titanium Composition |
| Category | Router Bits |
Technical Features
- Top-mounted bearing guide: The upper bearing travels along the edge of a template, ensuring the cutter follows an identical path to the template for consistent, repeatable results.
- High-density carbide and titanium composition: Provides extended edge retention and resistance to wear, supporting repeated use without degradation in cut quality.
- 1/2 in. cutting diameter with 1 in. cutting length: Sized to handle a practical range of flush trim tasks on workpieces up to 1 in. in thickness.
- Splinter-free cutting performance: Engineered to produce clean cuts on all types of wood and laminates, reducing the need for secondary finishing work.
- Compact overall length of 2-5/8 in.: Allows efficient operation in standard router configurations without excess overhang.
Applications
- Template-guided routing for duplicating master workpieces with precision.
- Flush trimming hardwood, softwood, plywood, and laminate materials.
- Producing finished edges on cabinet components, countertops, and laminate surfaces.
- Copying complex shapes from a template to a workpiece in production or custom woodworking environments.
