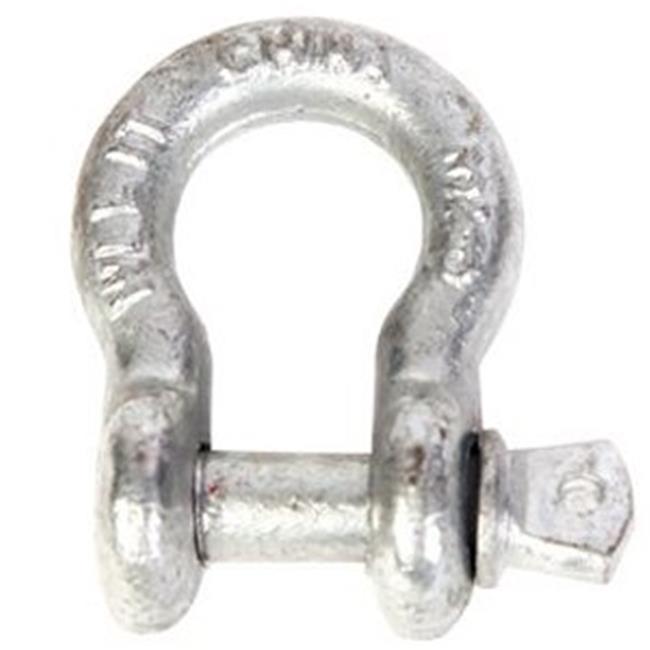

081613/MC655G ANCHOR SHACKLE SCRW PIN 1-1/4
by Gap Power
SKU 645-9085
Sold out
Original price
$47.95
-
Original price
$47.95
Original price
$47.95
$47.95
$47.95
-
$47.95
Current price
$47.95
In-Store Availability
Stock Status:
Limited Stock (1-2?)
Location:
Aisle G
Aisle View
Tap to enlarge
In-Store Only — Visit us in Gap, PA to purchase
Overview
The Koch Industries 081613/MC655G Anchor Shackle (081613/MC655G) is designed for heavy-duty rigging, lifting, and load-securing applications requiring a rated working load capacity of 9-1/2 ton.
| Specification | Detail |
|---|---|
| MPN | 081613/MC655G |
| Brand | Koch Industries |
| Pin Size | 1-1/4 in. |
| Work Load Limit | 9-1/2 ton |
| Pin Type | Screw Pin |
| Body Material | Steel |
| Pin Material | Alloy Steel |
| Finish | Hot Dip Galvanized |
| Weight | 3.91 lb |
Technical Features
- 9-1/2 ton Work Load Limit: Provides a high-capacity rated load threshold, making this shackle suitable for demanding industrial lifting and rigging tasks.
- Screw Pin design: Allows for tool-free installation and removal, enabling quick reconfiguration of rigging setups without sacrificing connection security.
- Steel body construction: Delivers structural strength and durability necessary for sustained use under high-load conditions.
- Alloy steel pin: Offers enhanced tensile strength over standard steel, ensuring the pin maintains integrity at maximum working loads.
- Hot dip galvanized finish: Provides corrosion resistance through a zinc coating applied by immersion, extending service life in outdoor or moisture-exposed environments.
- 1-1/4 in. pin size: Corresponds to a shackle body rated for large-scale rigging hardware compatibility, suitable for use with appropriately rated chains, slings, and hooks.
Applications
- Heavy-duty lifting and rigging operations in construction and industrial environments
- Load securing on marine, dock, or outdoor installations where corrosion resistance is required
- Connection point between wire rope slings, chain slings, or synthetic slings and lifting hardware
- General overhead lifting applications within the rated 9-1/2 ton work load limit
