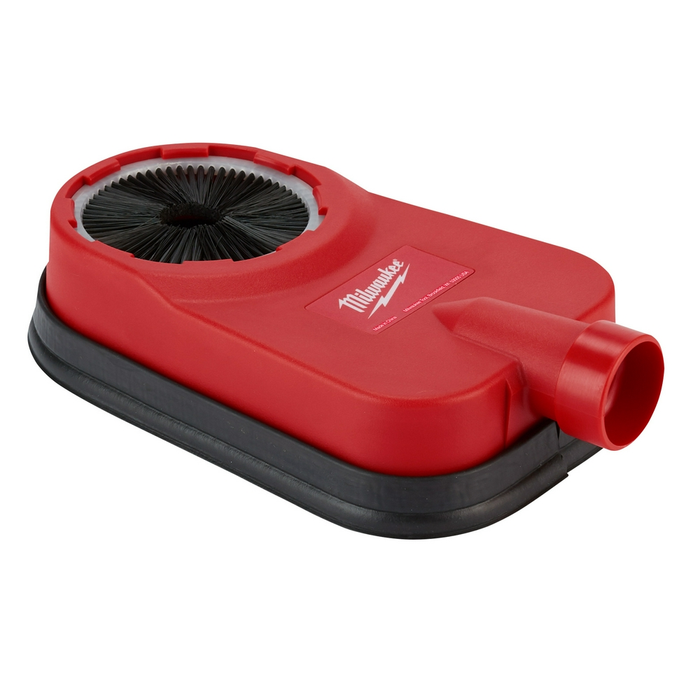

SDS Max Dust Extraction Attachment

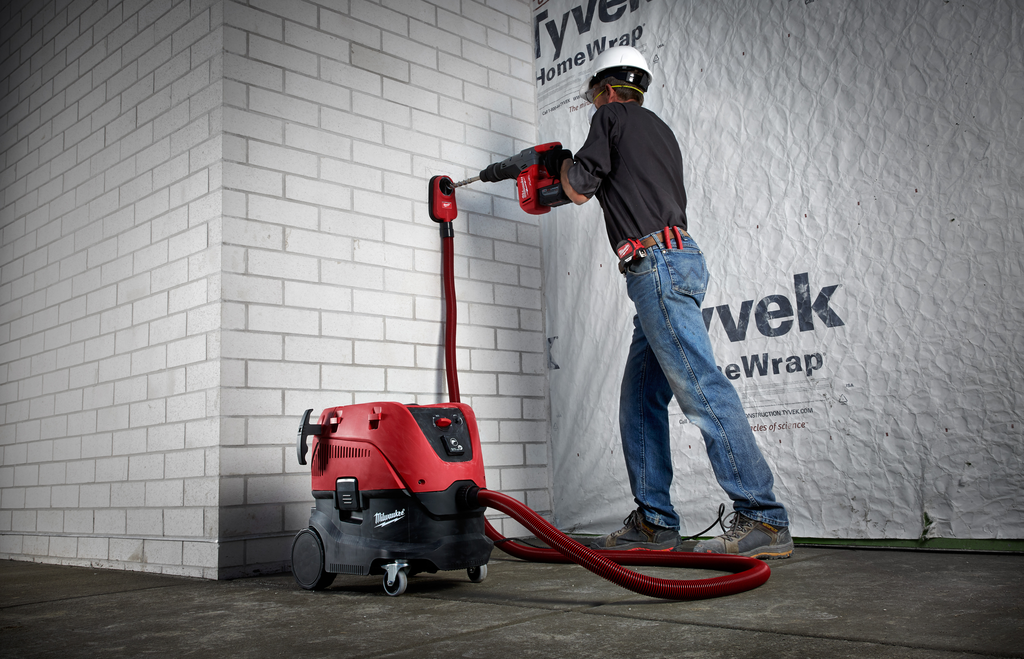

The SDS max dust extraction attachment provides users with a solution for the regulation on resharpenable crystalline silica dust (29 CFR 1926.1153). The SDS max dust extraction attachment is optimized for all drilling depths and a hole ranging from 1/4 in. and 2-3/4 in. in diameter. Its remodeler brush rings allows for increased tool life when performing larger diff coring applications. Attach to the Milwaukee 8960-20 8 Gallon dust extractor for a complete OSHA table 1 complaint solution.
Features
- Rubber seal ensures dust containment
- OSHA compliance when used with Milwaukee 8 Gallon dust extractor (8960-20)
- Quick and easy attachment to Milwaukee hose clip adapter (49-90-1959)
- Removable brush rings for up to 2-3/4 in. drilling and coring applications
- Vacuum assisted suction adheres to even and uneven surfaces
Specifications
- Material: Plastic
- Overall Height: 2.0 in
- Vacuum Attachable: Yes
- Filter Element Included: No
- Automatic On / Off: No
- Color / Finish: Red & Black
- Overall Length: 8.75 in
- Case Included: No
- Overall Width: 4.6 in
- Weight: 0.57 Pounds

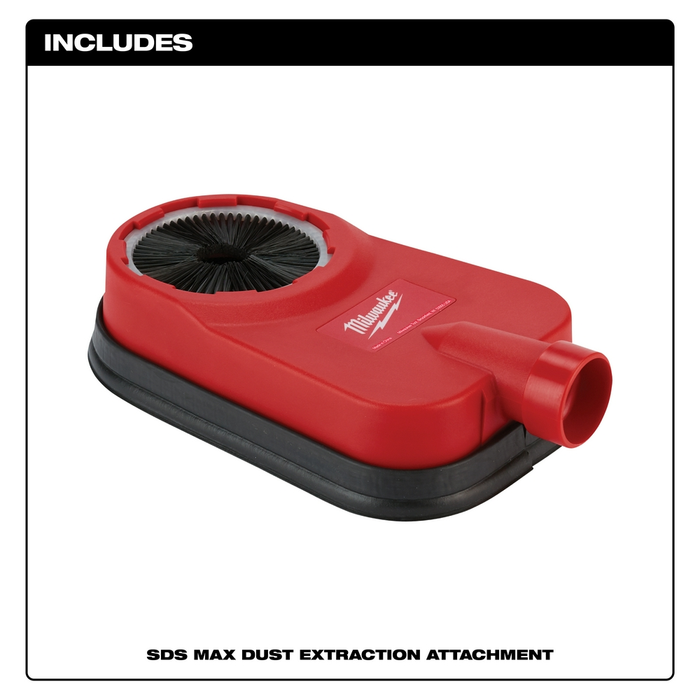

- Package Contents: (1) SDS Max Dust Extraction Attachment (5317-DE); (1) Hose Clip Adapter (49-90-1959)
- Accessory Type: SDS Max Drilling
- Country of Origin: China
- Brand / Model Compatibility: 5317-DE
