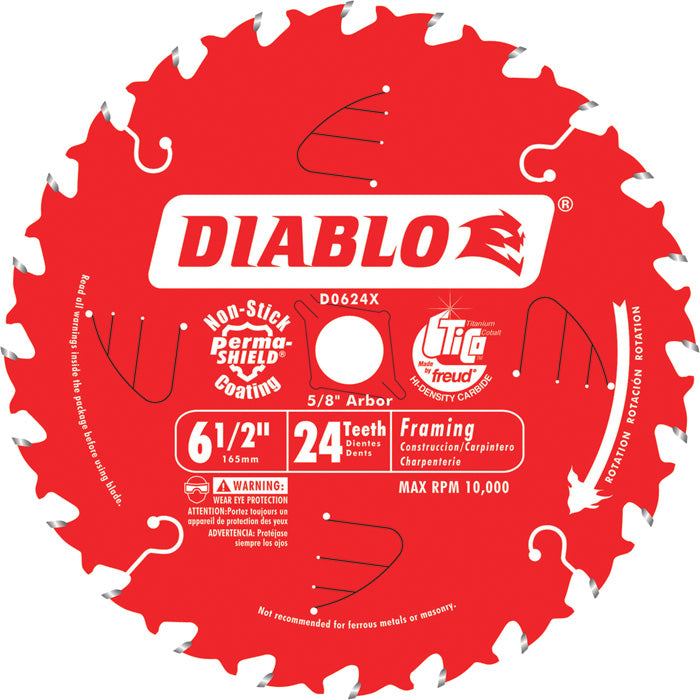

D0624X FRAME BLADE 6-1/2 24THT
by Gap Power
SKU D0624X
Original price
$11.95
-
Original price
$11.95
Original price
$11.95
$11.95
$11.95
-
$11.95
Current price
$11.95
In-Store Only — Visit us in Gap, PA to purchase
Overview
The Diablo D0624X FRAME BLADE (D0624X) is designed for combination wood cutting applications using circular saws, delivering high-speed performance with a 24-tooth carbide-tipped configuration optimized for framing and general-purpose cuts.
| Specification | Value |
|---|---|
| MPN | D0624X |
| Brand / Manufacturer | Diablo / Freud |
| Blade Diameter | 6-1/2 in. |
| Number of Teeth | 24 |
| Arbor Size | 5/8 in. |
| Arbor Shape | Round with Diamond Knockout Included |
| Max. Blade Speed | 10,000 RPM |
| Max. Cutting Depth | 2-3/16 in. |
| Cut Width (Kerf) | 0.06 in. |
| Plate Thickness | 0.039 in. |
| Tip Material | Carbide |
| Tooth Grind | ATB (Alternate Top Bevel) |
| Hook Angle | 18 Degrees |
| Blade Type | Combination |
| Wood Cutting Type | Combination |
| Primary Material Application | Wood |
| Compatible Saw Type | Circular Saws |
| Weight | 3.91 lb. |
Technical Features
- 24 Carbide-Tipped Teeth: Carbide tip material provides extended edge retention compared to standard steel teeth, reducing replacement frequency on demanding framing tasks.
- ATB (Alternate Top Bevel) Tooth Grind: Alternating top bevel geometry produces cleaner entry and exit cuts through wood, minimizing splintering on both faces of the workpiece.
- 18-Degree Hook Angle: An aggressive positive hook angle promotes fast, efficient material removal, making this blade well-suited for high-volume framing cuts.
- 10,000 RPM Max Blade Speed: Rated for high rotational speeds, allowing compatibility with the full range of standard 6-1/2 in. circular saws operating at typical RPM outputs.
- 0.06 in. Kerf Width: Thin kerf design reduces the amount of material removed per cut, decreasing the load on the saw motor and improving cut efficiency.
- 0.039 in. Plate Thickness: A slender plate reduces overall blade mass and drag, contributing to smoother operation and reduced vibration during cutting.
- 5/8 in. Round Arbor with Diamond Knockout: Standard 5/8 in. arbor ensures broad compatibility with circular saws, while the included diamond knockout accommodates saws requiring that arbor configuration without the need for a separate adapter.
- 2-3/16 in. Max Cutting Depth: Sufficient cutting depth for standard dimensional lumber, covering typical framing material thicknesses encountered on job sites.
Applications
- Framing and rough carpentry using dimensional lumber
- Combination ripping and crosscutting of wood
- General-purpose wood cutting with 6-1/2 in. cordless or corded circular saws
- Job-site cutting tasks requiring a fast, aggressive cut on softwood and hardwood
