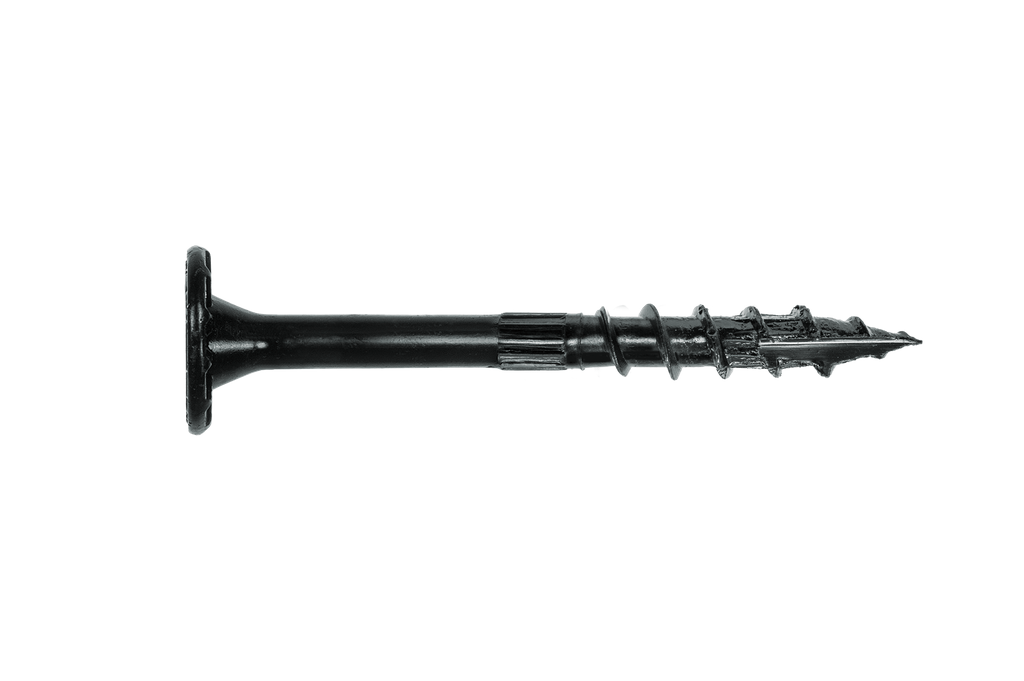

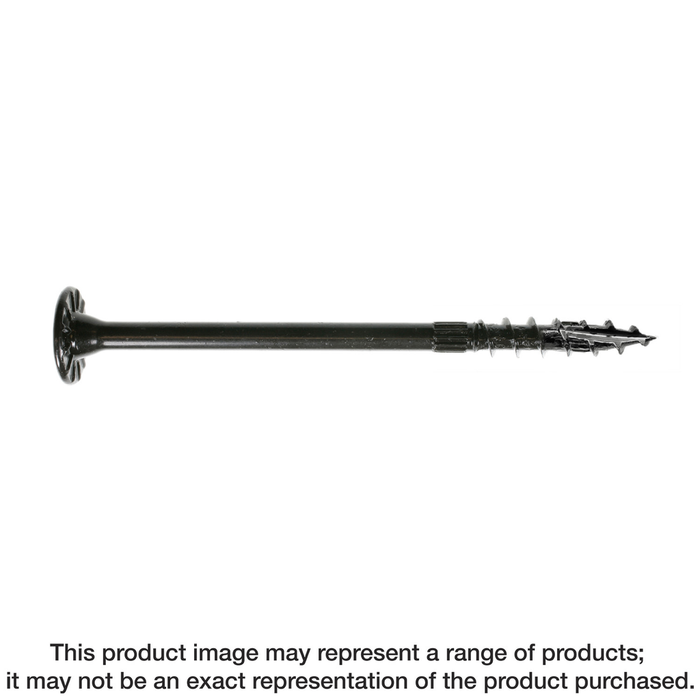

Simpson Strong-Tie SDW22300-R50 Strong-Drive® SDW™ TRUSS-PLY Screw — .220 in. x 3 in. T40 6-Lobe E-coat® (50-Qty)

The Strong-Drive SDW Truss-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply members, such as joining plated trusses and solid sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2-, 3- and 4-ply trusses. With the SDW Truss-Ply screw, multi-ply trusses and beams can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed and meets IRC® and IBC® code requirements for several common framing applications.

Features

• Deep 6-lobe T40 recess reduces cam-out, making driving easier
• E-coat® electrocoating is recommended for dry, low-corrosion environments
• Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
• Large washer head provides maximum bearing area; stamped with the Simpson Strong-Tie “≠” sign and fastener length for easy identification after installation (0.760-in. head diameter)
• SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
• Includes one 6-lobe, T40 driver bit
• Bold thread design provides superior holding power and cinches fastened members together for consistent installation
• Higher shear values than competitive products enable wider spacing, saving time and money

Prop 65

• WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Specifications

• Depth: 0.760 in
• Length: 3 in
• Country of Origin: Taiwan
