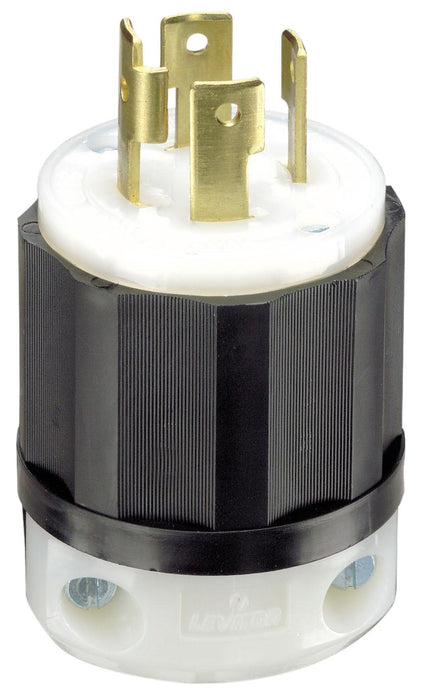

NEMA L14-30P/30A/125/250V (Male 4 Prung) **SUB**
by Gap Power
SKU 2711
Sold out
Original price
$19.95
-
Original price
$19.95
Original price
$19.95
$19.95
$19.95
-
$19.95
Current price
$19.95
In-Store Availability
Stock Status:
Call for Availability
Location:
Not Specified
In-Store Only — Visit us in Gap, PA to purchase
Overview
The Leviton Industrial Grade Locking Plug (061-2711) is designed for heavy-duty power distribution applications requiring secure, twist-lock connections in industrial and commercial environments. Configured to the NEMA L14-30P standard, this 4-prong male locking plug delivers 30-amp, 125/250-volt grounded power in a Black and White finish.
| MPN | 061-2711 |
|---|---|
| Brand | Leviton Manufacturing Co. |
| NEMA Configuration | L14-30P |
| Amperage | 30 Amp |
| Voltage | 125/250 Volt |
| Poles | 3 |
| Wires | 4 |
| Wire Gauge | 14–8 AWG |
| Cord Range | 0.595–1.150 in. |
| Grounding | Yes |
| Body Material | Super Tough Nylon |
| Blade & Contact Material | Solid Brass |
| Assembly Screw Finish | Zinc Plated Steel |
| Color | Black and White |
| Compatible Connector | L14-30R (1063-2040) |
| Certifications | UL Listed, CSA Certified |
| Weight | 10.04 lb |
Technical Features
- Solid brass blades and contacts — Provides low-resistance electrical connections and long-term conductivity under repeated use cycles.
- Super tough nylon body — Resists impact, heat, and mechanical stress common in industrial job-site environments.
- Zinc plated steel assembly screws — Corrosion resistance extends service life in humid or outdoor-adjacent installations.
- NEMA L14-30P twist-lock configuration — Secure locking engagement prevents accidental disconnection under load, critical for generator and power distribution applications.
- 4-wire, 3-pole grounded design — Supports grounded 125/250V circuits, reducing shock hazard in compliance with grounding requirements.
- Wide cord range (0.595–1.150 in.) and wire gauge compatibility (14–8 AWG) — Accommodates a broad range of cord assemblies, reducing the need for additional adapters or ferrules.
- UL Listed and CSA Certified — Verified compliance with recognized North American electrical safety standards for industrial-grade devices.
Applications
- Portable generator power cord terminations requiring a secure, non-slip connection
- Industrial power distribution panels and transfer switch wiring
- Construction site temporary power assemblies operating at 125/250V, 30A
- Replacement plug for existing L14-30R locking connector installations
- Commercial HVAC, pump, and motor feed connections requiring a grounded 4-wire circuit
