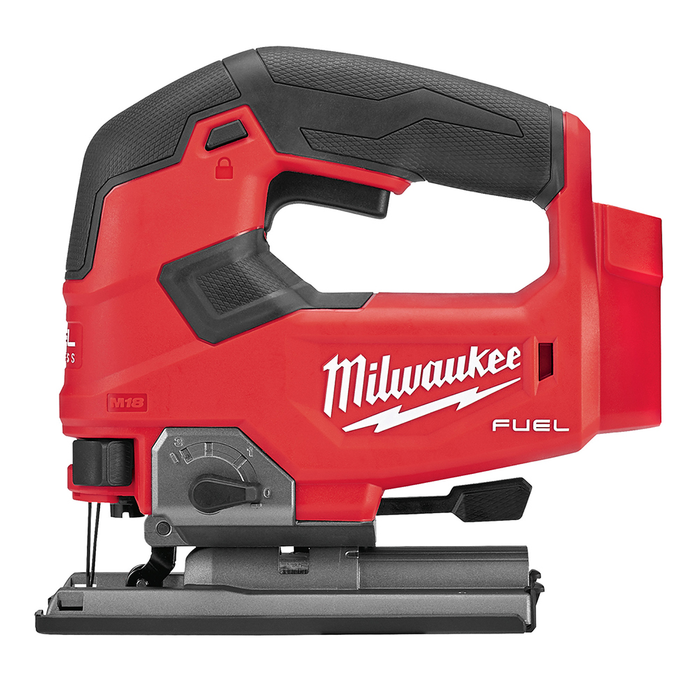

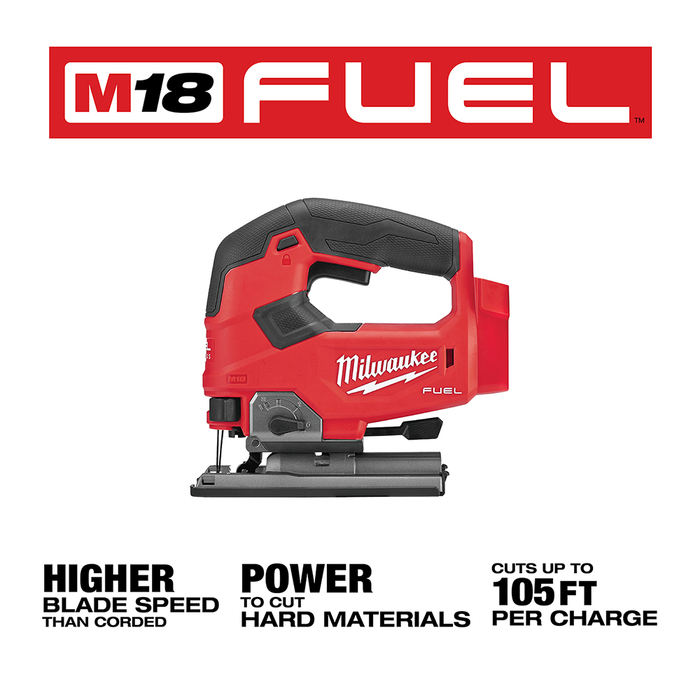

M18 FUEL™ D-handle Jig Saw
The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to provide the highest quality cuts in a wide variety of materials. The M18™ FUEL™ D-handle jig saw leverages the POWERSTATE brushless motor and REDLINK Plus™ intelligence to provide higher blade speed than corded jig saws at 3500 strokes per minute for clean controlled cuts with minimized chipping or bucking. Leveraging the M18™ REDLITHIUM™ XC5.0 battery the M18™ FUEL™ D-handle jig saw provides up to 105 linear feet of cutting in 3/4 in. laminated particle board, delivering all day productivity with less trips to the charger. The saw features tool-less blade change, tool free bevel adjust with pin-detents at 0°; 15°; 30°; and 45° as well as an LED light and on/off blower to keep the cut line visible while cutting.

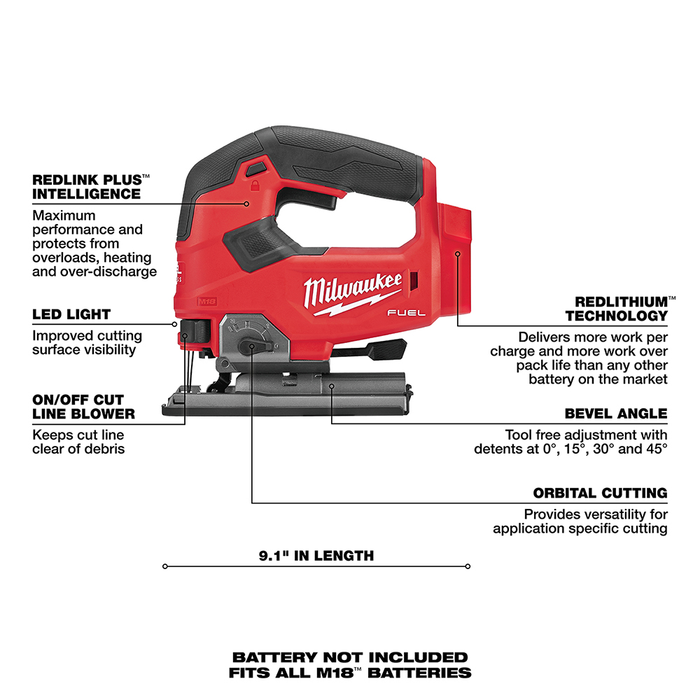

Features
- REDLINK™ plus intelligence: the most advanced system of cordless power tool electronics; provides optimized performance and overload protection using total system communication between tool, battery and charger
- POWERSTATE brushless motor: increased SPM and the power to cut hard materials, including hardwoods and metals
- 4 position orbital cutting provides versatility for application specific cutting
- REDLITHIUM™ battery Technology: Superior pack construction, electronics and performance deliver more work per charge and more work over pack life than nay battery on the market
- Variable speed trigger between 0 and 3500 strokes per minute, providing precise control for clean cuts with less chipping
- Accepts T-shank jig saw blades
- On/off cut line blower keeps the cut line clear of debris, and allows user to turn off blower when using dust extraction
- Includes non-marring shoe cover for protection of finished surfaces
- LED light illuminates the cut line
- Tool free shoe bevel with positive stops allows for quick and accurate shoe adjustment with pin-detents at 0°, 15°, 30° and 45°
- Includes dust cover and dust extraction tube

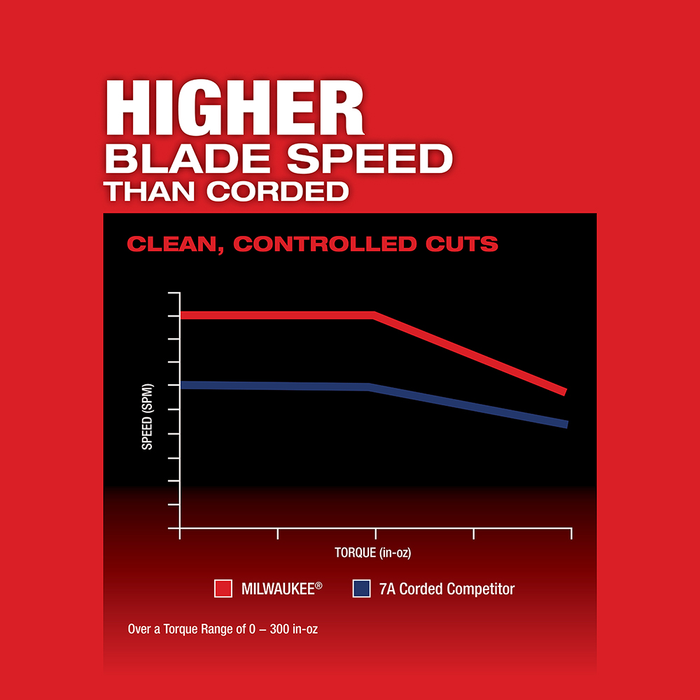

- Higher blade speed than corded jig saws for clean controlled cuts

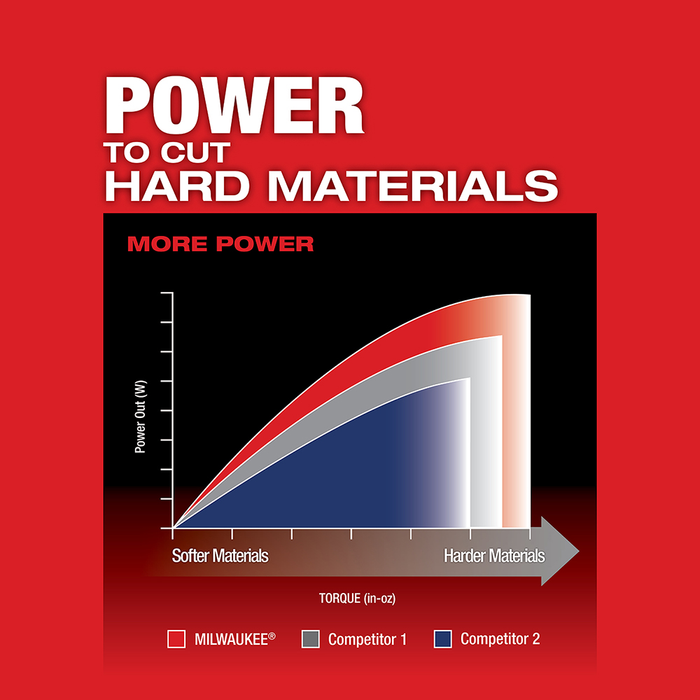

- Power to cut hard materials including hardwoods and metals
- Part of the M18™ system, featuring over 150+ tools
- Compatible with over 150+ tools on the M18™ platform
Specifications
- Net Tool Weight: 4.85 lbs
- External Motor Brush Access: No
- Tool-Less Bevel Adjustment: Yes
- CSA Certified: No
- Country of Origin: Vietnam
- Package Contents: (1) M18 FUEL D-Handle Jig Saw (2737-20); (1) Anti-Splinter Guard (1) M12 Lithium-ion Battery Charger (48-59-2401); (1) Dust Cover (1) Hex Wrench (1) Shoe Guard
- Variable Speed: Yes
- Height: 8.6 Inches
- Stroke Length: 1 in
- Housing Material: Glass Filled Nylon
- Blade Wrench Included: Not Required
- Battery Voltage (V): 18
- Cordless / Corded: Cordless
- Battery Composition: Lithium-Ion (Li-ion)
- Main Handle Type: D-Handle
- Bevel Capacity (°): 45
- Maximum Wood Cutting Capacity: 5.5 in
- Number of Batteries Required: 1
- Powered Tool Power Source: Electric - Cordless
- Saw Design: Top / D-Handle
- Bevel Adjustment Wrench Included: Not Required
- Shoe Cover Included: Yes
- Scrolling Action: Yes
- Lock-on Switch: No
- Charger Included: No
- Integrated Work Light: Yes
- Width: 3.2 Inches
- Color / Finish: Red/Black
- Electronic Speed Control: Yes
- Tool-Less Blade Changing: Yes
- ETL Listed: No
- Weight - Excluding Battery: 4.85 lbs
- Adjustable Shoe: Yes
- Quick Change Blade System: Yes
- Maximum Strokes per Minute - No Load: 3500
- Shoe Material: Metal
- Maximum Metal Cutting Capacity: 0.38 in
- Integrated Blade Storage: No
- Dust Blower: Yes
- Blades Included: 1
- UL Listed: Yes
- Length: 8.9 Inches
- Integrated Laser Guide: No
- Product Storage Included: No Case Included
- Weight - Battery Installed: 6.49 lbs
- Orbital Action: Yes
- Number of Orbital Action Settings: 4
- Blade Type: Jig Saw T-Shank
