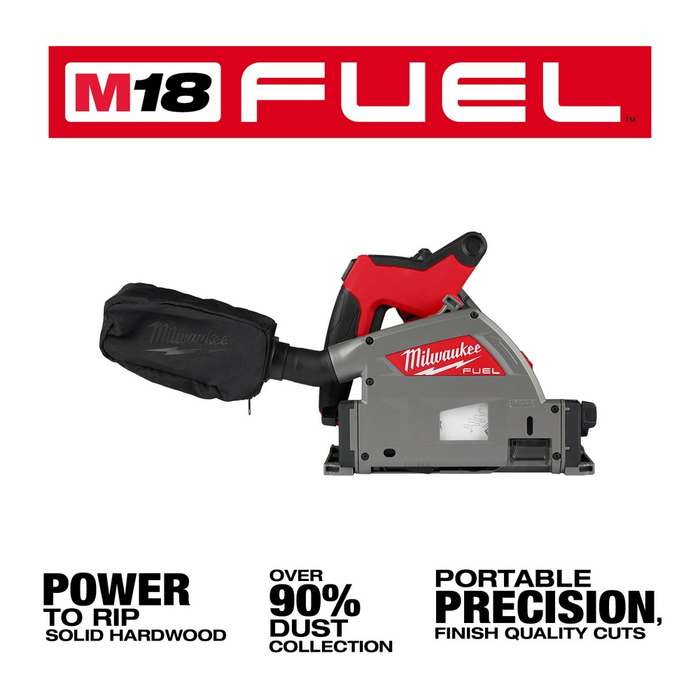

M18 FUEL™ 6-1/2" Plunge Track Saw Kit

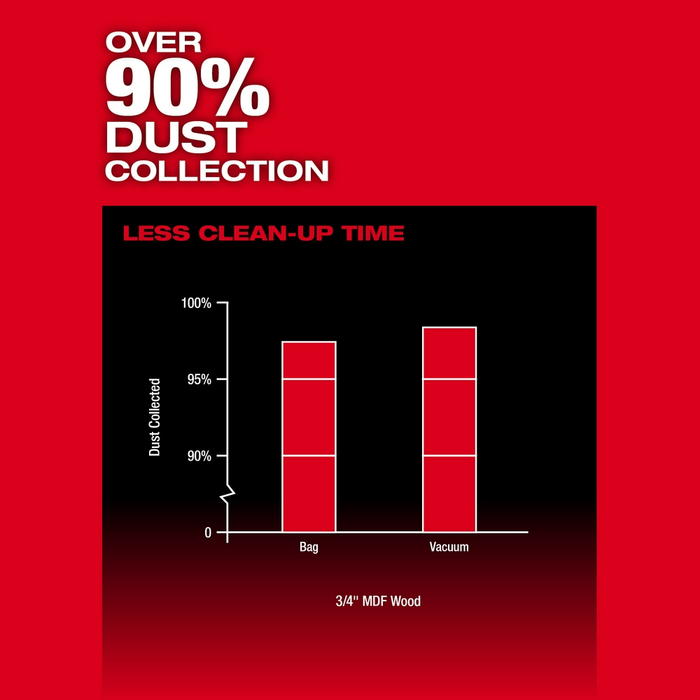

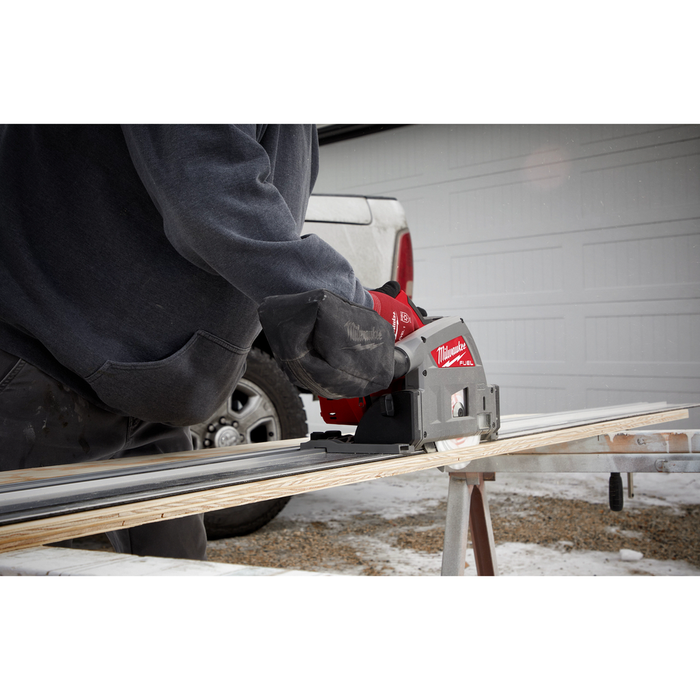

Designed for the professional carpenter and remodeler, the M18 FUEL™ 6-1/2” Plunge Track Saw from Milwaukee® delivers the Power to rip solid hardwoods, over 90% dust collection efficiency while providing the portability and precision users demand from a plunge saw. The POWERSTATE™ Brushless motor provides 6,300 RPM for finish quality and clean cuts. REDLINK PLUS™ intelligence ensures maximum performance and protection from overload, overheating, and over-discharge. The M18 REDLITHIUM™ HIGH OUTPUT™ XC6.0 battery delivers more cuts per charge and great durability than the competition. The saw features a variable speed dial allowing for setting the speed of your application. The smooth, pivoting plunge motion allows for precision plunge cuts with an accurate depth of cut.
Features

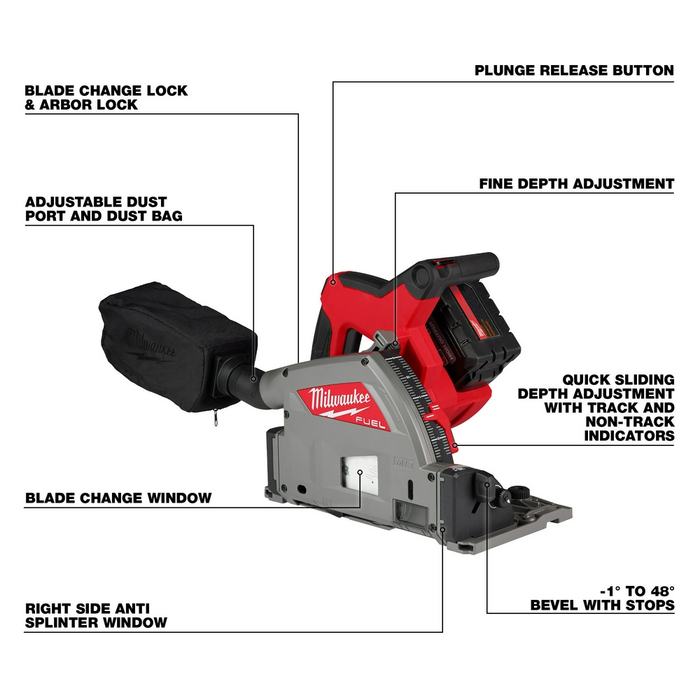

- Variable speed dial for setting blade RPM to your application
- Micro adjust depth knob for perfect depth setting
- Compatible with 1-7/8" Vac hoses
- REDLINK PLUS™ Intelligence: Ensures optimal performance and provides overload protection to prevent damage to the tool and battery during heavy applications while still maintaining compatibility across the entire M18™ System.
- Smooth plunging action for easy plunge cuts
- Riving knife keeps materials from pinching on blade and reduces kickback
- POWERSTATE™ Brushless Motor. Purposely built for the M18 FUEL™ Track Saw to provide the power and speed to complete demanding applications with finish quality cuts.
- Adjustable cam system to allows user to dial in track to rail fitment for laser straight cuts
- Onboard Allen wrench storage for easy blade changes
- Bevel stops at 22.5, 45 and 48 Degrees
- Easy slide depth scale allows for quick and accurate adjustments
- REDLITHIUM™ HD packs. Superior pack construction provides the industry's best protection against jobsite conditions.

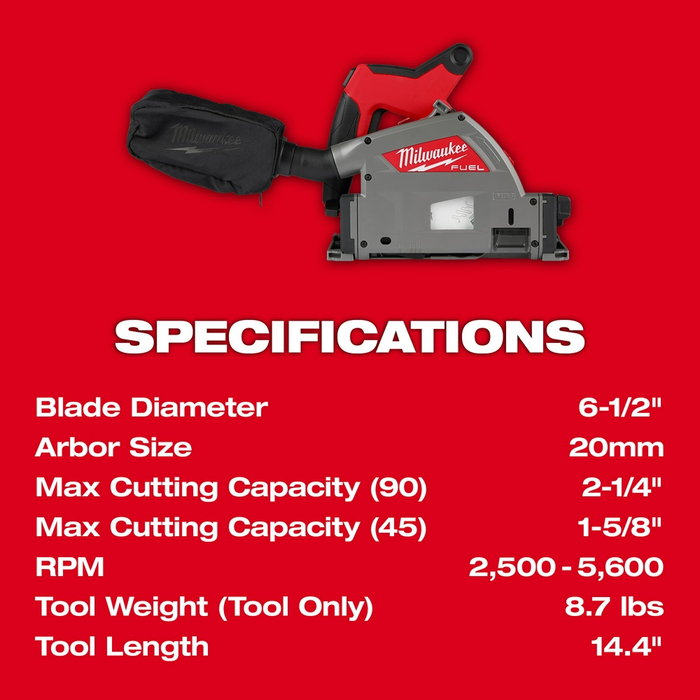

Specifications
- Dust Port: Yes
- Height: 10.8 Inches
- UL Listed: Yes
- Bevel Stop: Yes
- Maximum Cut Depth @ 45°: 1.5625 in
- Riving Knife: Permanently Attached
- Battery Size: Battery Packs
- Dust Port Outside Diameter: 1.875 in
- ETL Listed: No
- Maximum Cut Depth @ 45° When On Track (In): 1.5625
- Battery Composition: Lithium-Ion (Li-ion)
- Main Handle Type: Pistol Grip
- Maximum Cut Depth @ 90° When On Track (In): 2.25
- Net Tool Weight: 9.13 lbs
- Battery Voltage (V): 18
- Maximum Cut Depth @ 90°: 2.25 in
- Length: 14.3 Inches
- Depth Adjustment: Yes
- Powered Tool Power Source: Electric - Cordless
- Housing Material: Glass Filled Nylon, Magnesium
- CSA Certified: No
- Blade Wrench Included: Yes - Stored on Tool
- Plunge-Cut Capable: Yes
- Product Storage Included: Case
- Saw Blade Diameter: 6½ in in
- Bevel Capacity (°): 48
- Blades Included: 1
- Charger Included: Yes
- Battery Ampere-hour (Ah): 6.0
- Variable Speed: Yes

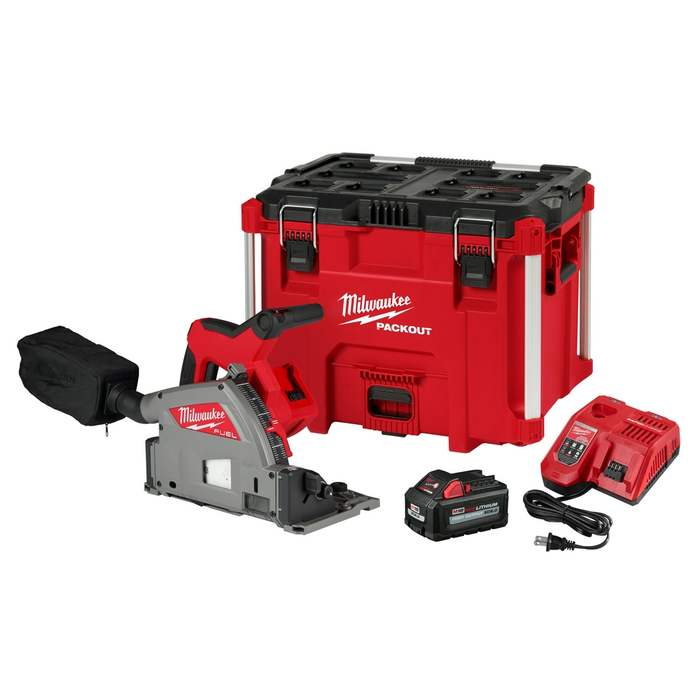

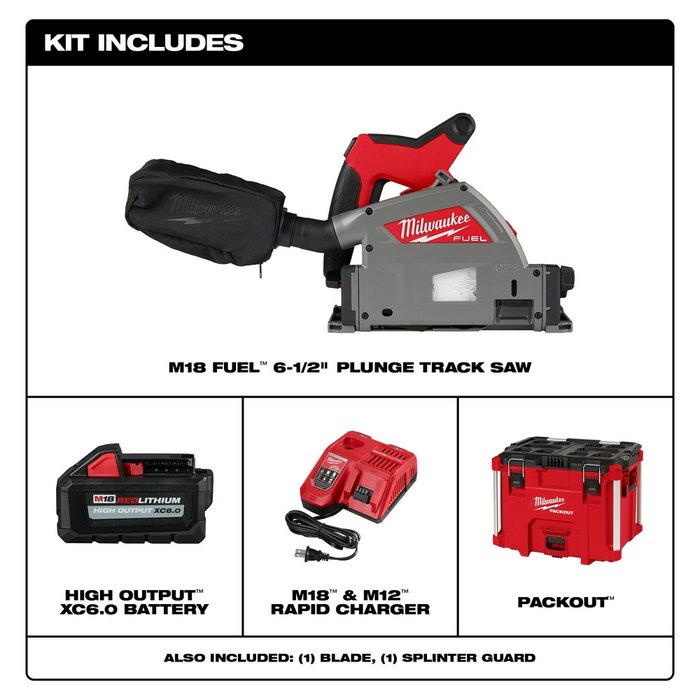

- Package Contents: (1) 2831 Plunge Track Saw; (1) M18 REDLITHIUM High Output Extended Capacity XC6.0 Battery; (1) Blade; (1) Multi Voltage Rapid Charger; (1) PACKOUT Case
- Width: 8.7 Inches
- Arbor Size: 0.787 in
- Shoe Material: Cast Magnesium
- Saw Drive: Sidewinder Geared
- Maximum RPM - No Load: 6500

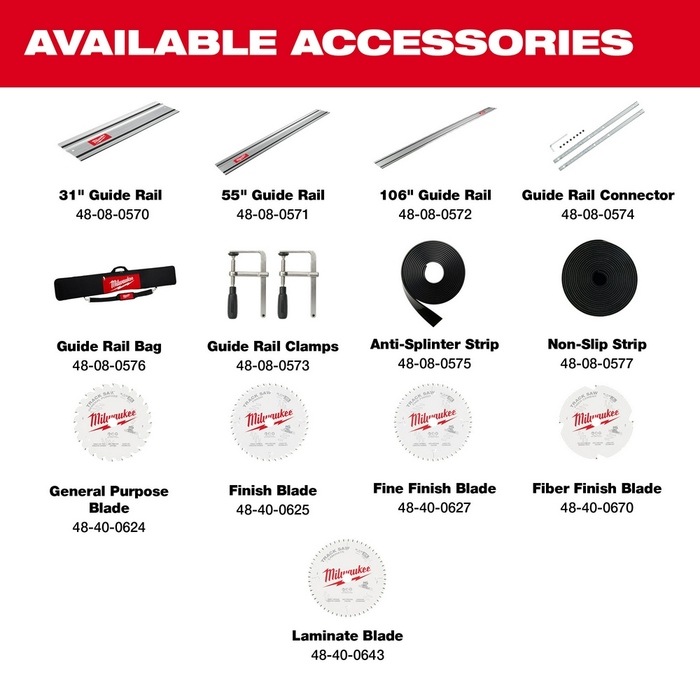

- Guide(s): 31 in, 55 in, 106 in (not included)
- Bevel Presets: 0°, 22.5° & 45°
- Number of Batteries Required: 1
- Blade Location: Right
- Country of Origin: China
- Cordless / Corded: Cordless
- Color / Finish: Black, Gray, Red
- Blade Type: General Purpose
- Number of Batteries Included: 1
- Blade Material: Cobalt Infused Tungsten Carbide
- Tool-Less Blade Changing: No
