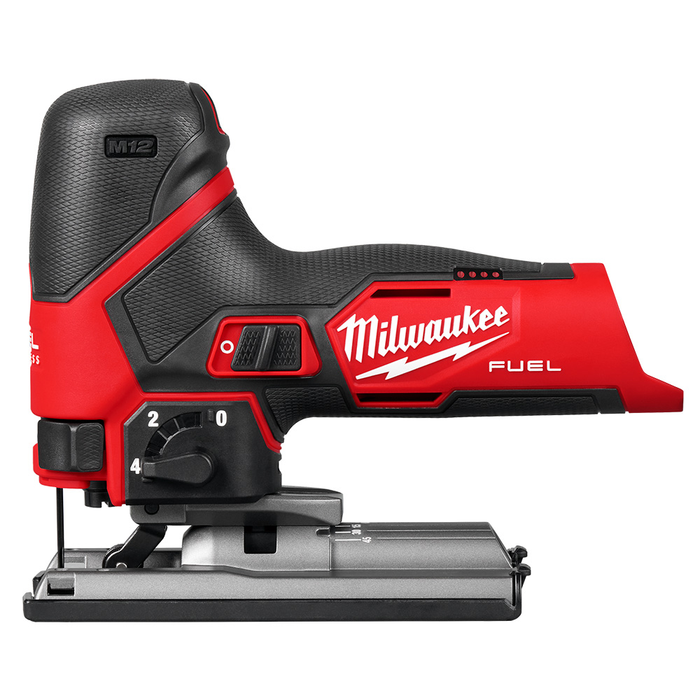

M12 FUEL™ Jig Saw

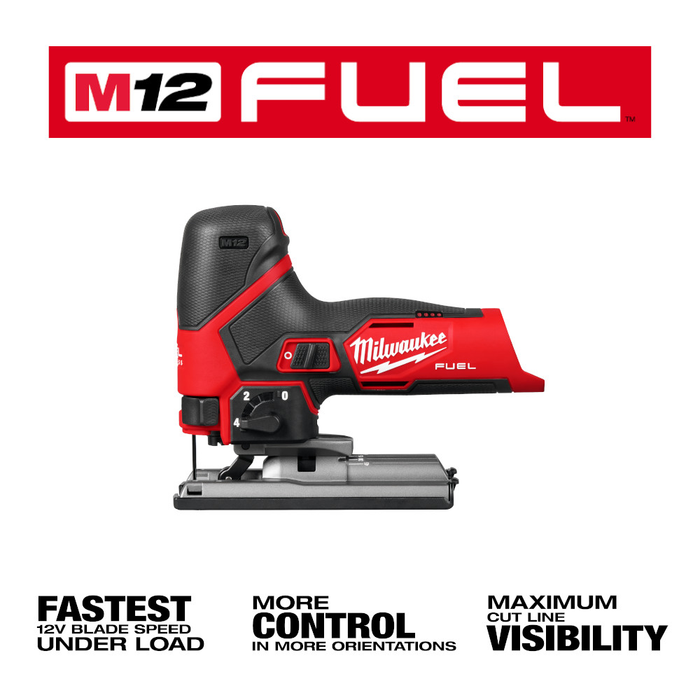

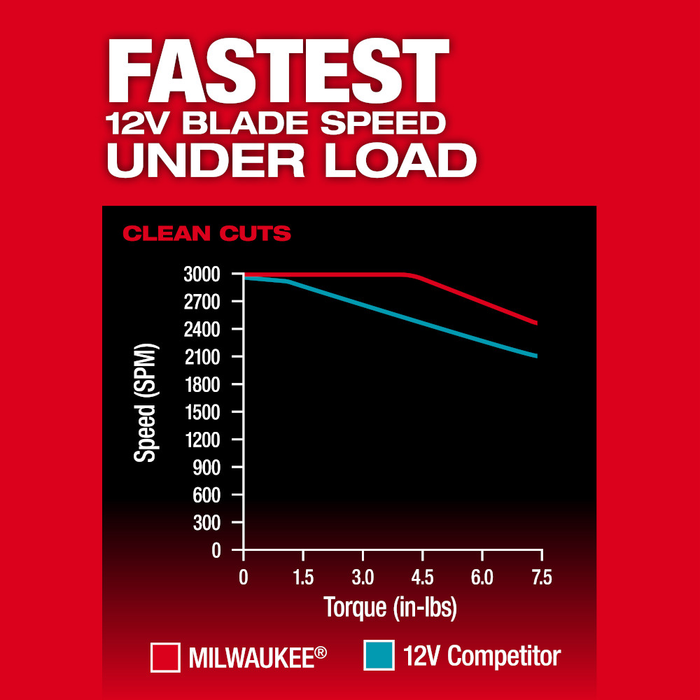

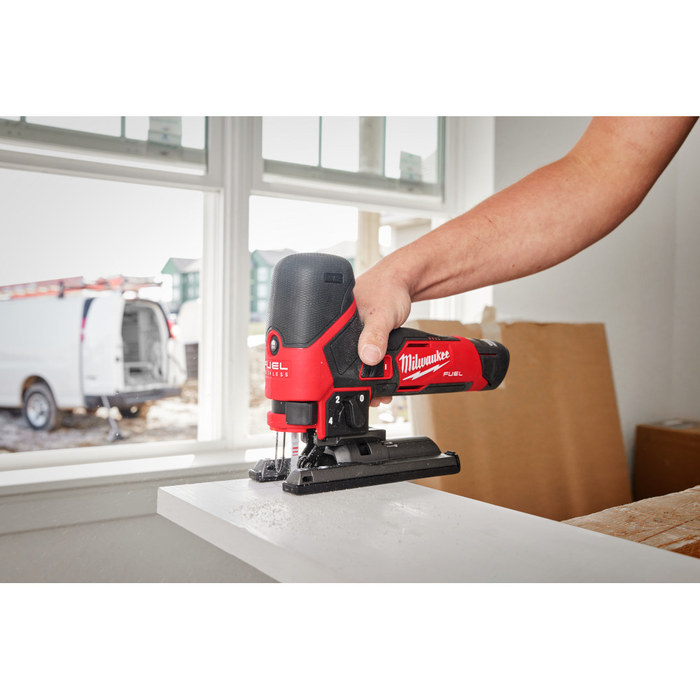

Designed for the professional carpenter and remodeler, the MILWAUKEE® M12 FUEL™ Jig Saw is optimized for power and precision on the jobsite. The M12 FUEL™ Jig Saw delivers the Fastest 12V Blade Speed Under Load, More Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ intelligence delivers 3000 strokes per minute at a 7/8" stroke for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide more control across standard and inverted orientations of usage. The saw is equipped with an on/off LED light and an on/off dust blower to optimize cut line visibility for the application at hand. The M12™ FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, and a durable aluminum base plate with bevel detents, and carries our industry-leading 5-year limited power tool warranty.
Features

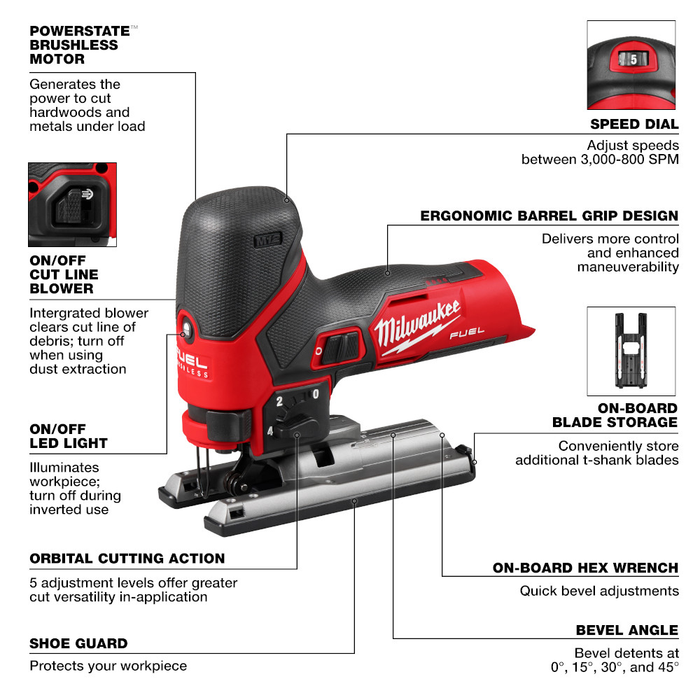

- Tool-free quick eject blade change
- On-board hex wrench for quick, efficient bevel adjustments
- LED light illuminates the workpiece and allows user to turn off during inverted use
- Compatible with over 125+ tools on the M12™ System.

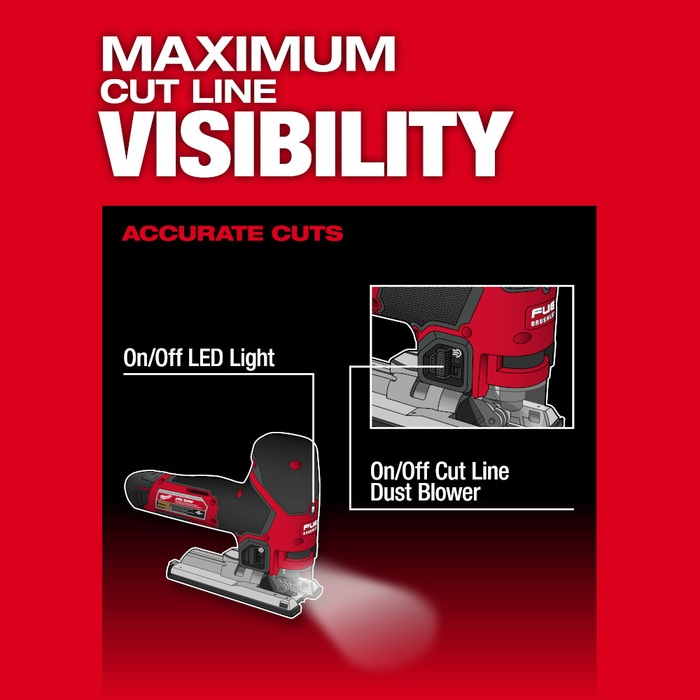

- Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction
- Includes Dust Cover, Splinter Guard, Shoe Cover, Vacuum Shroud
- Orbital action with 5 adjustment levels offers greater cut versatility in application
- POWERSTATE™ Brushless Motor: Generates the power to cut hardwoods and metals under load
- Variable speed dial provides 5 adjustment settings that range from 3000 - 800 SPM
- REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge
- Durable aluminum base plate with bevel detents at 0°, 15°, 30°, and 45°
- Accepts T-Shank jig saw blades
- On-board blade storage

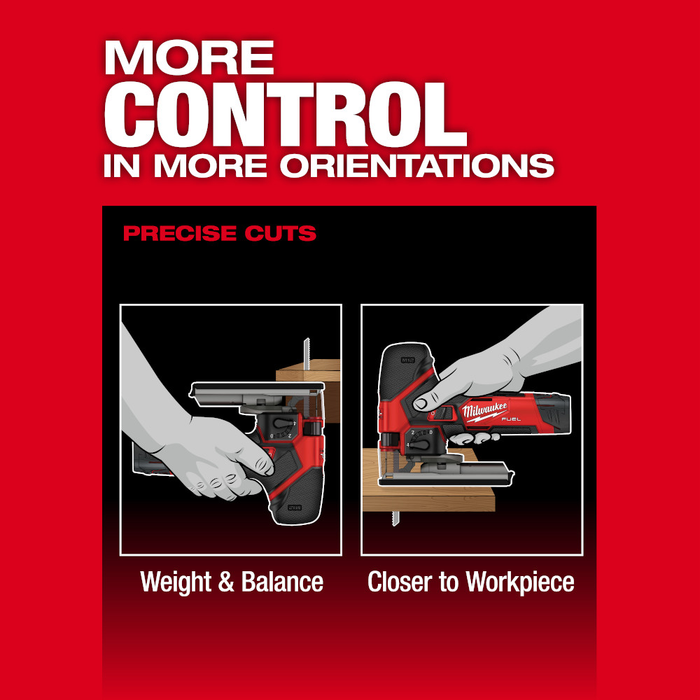

- Ergonomic barrel grip design delivers more control and enhanced maneuverability

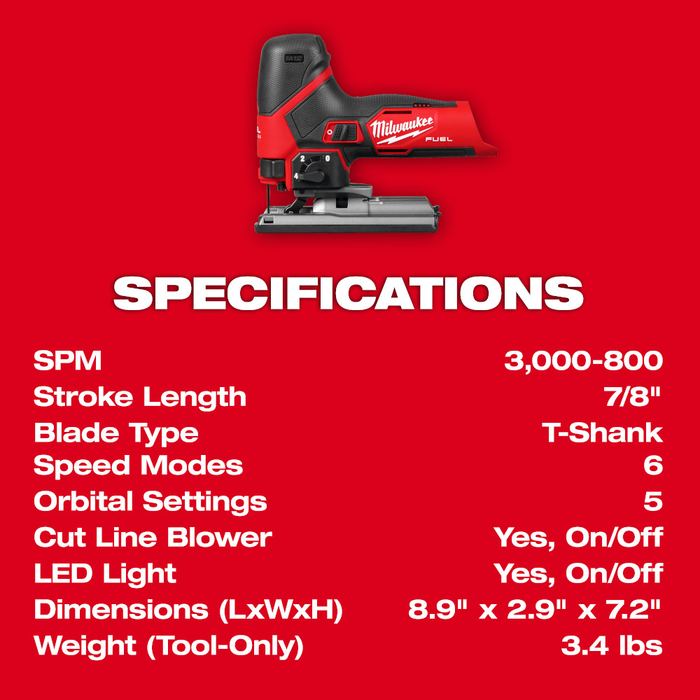

Specifications
- Tool-Less Bevel Adjustment: No
- Variable Speed: Yes
- Stroke Length: 0.875 in
- Tool-Less Blade Changing: Yes
- Integrated Laser Guide: No
- Battery Composition: Lithium-Ion (Li-ion)
- Battery Voltage (V): 12
- Cordless / Corded: Cordless
- Lock-on Switch: Yes
- CSA Certified: No
- Bevel Capacity (°): 90
- Integrated Work Light: Yes
- Integrated Blade Storage: Yes
- Color / Finish: Black, Red
- Width: 2.9 Inches
- Scrolling Action: Yes
- Number of Orbital Action Settings: 5
- Adjustable Shoe: Yes
- Dust Blower: Yes
- Number of Batteries Required: 1
- Orbital Action: Yes
- Height: 7.2 Inches
- Housing Material: Glass-Filled Nylon
- Main Handle Type: Barrel Grip
- Product Storage Included: No Case Included
- UL Listed: Yes
- Blade Type: Jig Saw T-Shank
- Electronic Speed Control: Yes
- Shoe Cover Included: Yes
- Blades Included: No

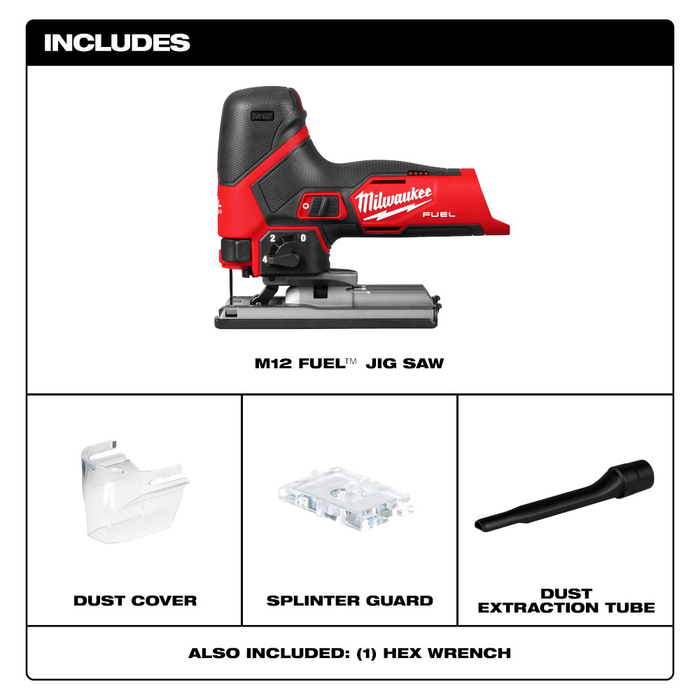

- Package Contents: (1) Jig Saw (2545-20); (1) Dust Cover; (1) Splinter Guard; (1) Vacuum Hose Adapter; (1) Hex Wrench
- Saw Design: Barrel Grip
- Powered Tool Power Source: Electric - Cordless
- Country of Origin: China
- Weight - Excluding Battery: 3.4 lbs
- Length: 8.9 Inches
- Bevel Adjustment Wrench Included: Yes - Stored on Tool
- Net Tool Weight: 3.4 lbs
- Charger Included: No
- Maximum Strokes per Minute - No Load: 3000
- ETL Listed: No
- Quick Change Blade System: Yes
- Blade Wrench Included: Not Required
