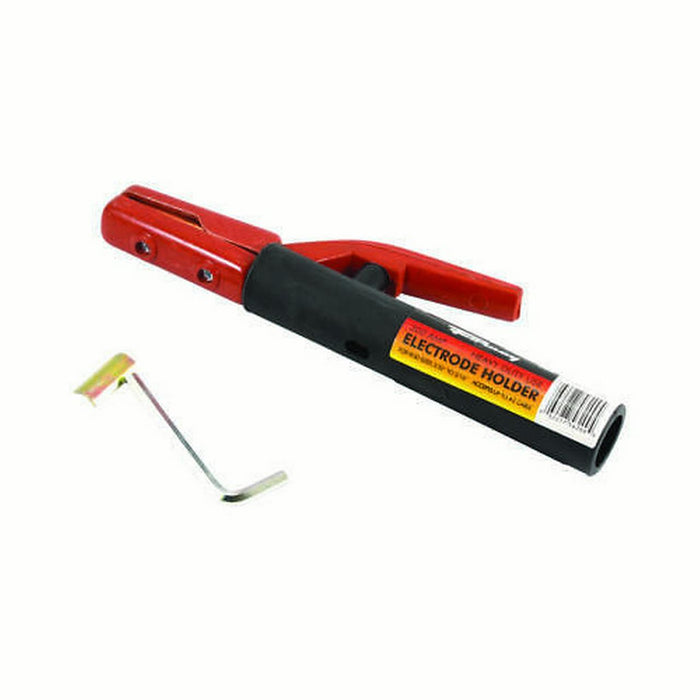

56200 HOLDER ELECTRODE 300AMP M/DUTY

Overview

The Forney 56200 Electrode Holder (8914632) is designed for medium-duty shielded metal arc welding (SMAW) applications requiring up to 300 amps of sustained current capacity.

Technical Features

• 300-Amp current rating: Supports medium-duty SMAW operations across a range of electrode sizes and base materials without exceeding the holder's rated capacity.
• Brass body construction: Brass provides high electrical conductivity, ensuring efficient current transfer from cable to electrode with minimal resistance loss.
• Fiberglass outer cover: Fiberglass insulation resists heat and mechanical wear, protecting the operator from accidental contact with energized components during use.
• Trigger-style actuation: The integrated trigger mechanism allows single-hand electrode changes, reducing downtime between passes and improving workflow efficiency.
• Accepts No. 2 welding cable: Compatible with standard heavy-gauge welding cable, making the holder suitable for integration into most existing medium-duty SMAW setups.
• Accepts up to 3/16 in. electrodes: Accommodates a range of common SMAW electrode diameters used in structural, maintenance, and repair welding.
• Grooved jaw design: Multiple jaw grooves allow the electrode to be positioned at varying angles, enabling the operator to adapt technique and access restricted weld joints with greater comfort.
• Insulated for operator safety: Full insulation coverage provides a protective barrier between live electrical components and the operator's hand throughout the welding process.

Applications

• Shielded metal arc welding (SMAW / stick welding) in fabrication and manufacturing environments
• Structural steel repair and maintenance welding up to 300 amps
• Field welding tasks requiring compatibility with No. 2 cable and standard rod sizes up to 3/16 in.
• Workshop and job-site applications where operator safety and ergonomic electrode positioning are required
