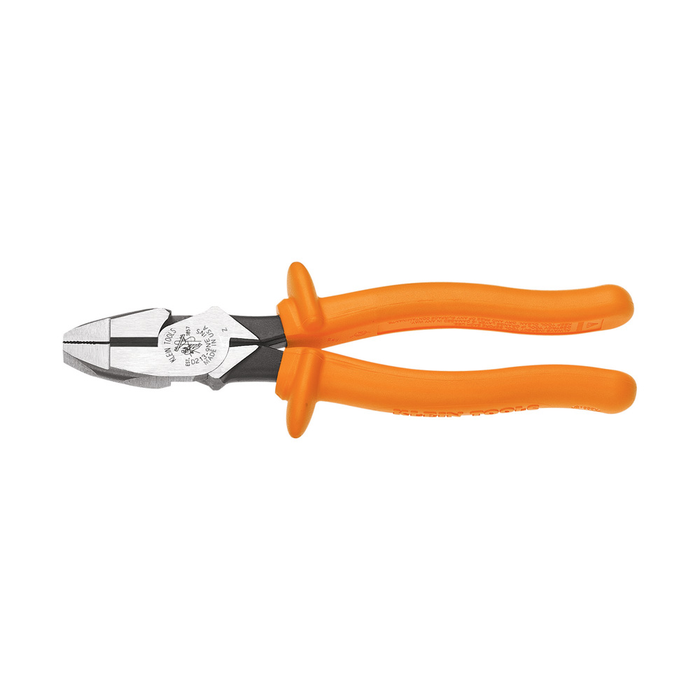

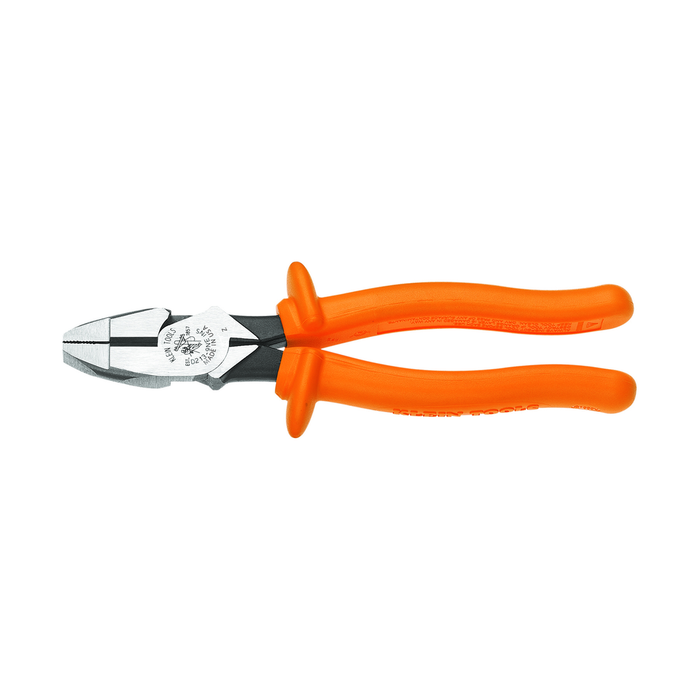

Side Cutting Pliers, New England Insulated, 9-Inch

These Klein Tools Side Cutting New England Insulated Pliers are insulated by two layers and pass both the IEC 60900 and ASTM F1505 standards. They are made of forged steel with induction-hardened knives for strength and durability. And they have high-leverage design which provides 46-percent more cutting and gripping power than other plier designs.

Features

• High-leverage design provides 46-percent greater cutting and gripping power than other plier designs
• Integral guards help prevent hand contact with conductive parts
• Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol

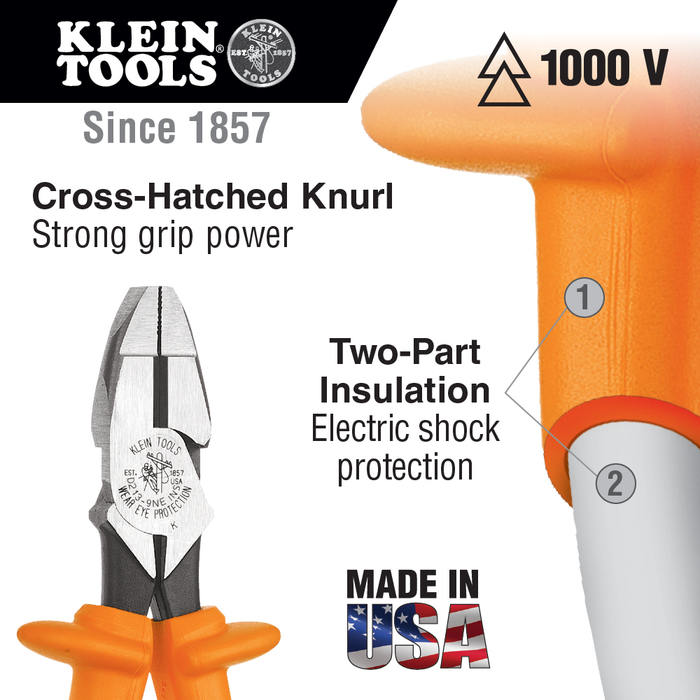

• Two layers of insulation provide protection against electric shock
• Flame retardant, impact-resistant, bright orange outer coating
• Forged steel for maximum durability
• Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
• Integral Guards Help Prevent Hand Contact With Conductive Parts
• Pliers are individually tested to exceed the ASTM F1505-16(2021) and IEC 60900:2018 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol
• Hot-riveted joint for smooth action and no handle wobble
• Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated electrical pliers, and clearly marked with the official 1000-volt rating symbol
• Induction-hardened cutting knives for long life
• Made in USA
• Precision machined knives cut cleanly and crisply even on fine stranded wire, mule tape and pull line

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Style Name: Standard
• Overall Length: 9.68" (24.6 cm)
• Nose Type: New England
• Application: ACSR, Screws, Nails and Most Hardened Wires
• Joint Type: Hot-Riveted
• Jaw Width: 1.25" (3.2 cm)
• Standards: IEC 60900 and ASTM F1505
• Type: Side Cutting Pliers
• Connector Crimping: No
• Screw Shearing: No
• Depth: 9.6250 in
• Jaw Capacity: 1.375" (3.5 cm)
• Width: 3.1000 in
• Jaw Length: 1.91" (4.9 cm)
• Material: Induction Hardened Steel
• Bolt Thread Holding: No
• Insulated: Yes
• Jaw Thickness: 0.62" (1.6 cm)
• Tether Capable: No
• Cut Style: Side-Cutting
• Country of Origin: United States
• Heavy Duty: No
• Knife Length: 0.781" (2 cm)
• Overall Width: 2.49" (6.3 cm)
• Strips and Cuts AWG Stranded: No
• Nominal Length: 9"
• Handle Length: 5.73" (14.6 cm)
• Strips and Cuts AWG Solid: No
• Cutting Knives: 1
• Height: 0.6250 in
• Weight: 1.2500 lbs
• Standard: Yes
• Handle Color: Orange
• Fish Tape Pulling: No
• Item: Side-Cutting
• Handle Finish: 2-Layer Insulation
